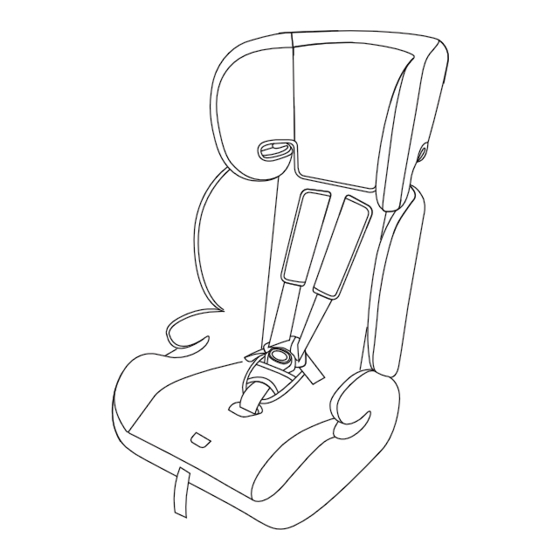

MARS
Carseat
USER MANUAL
IMPORTANT
www.jikelbaby.com
Retain for Future Reference & Read Carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jikel MARS

Summary of Contents for Jikel MARS

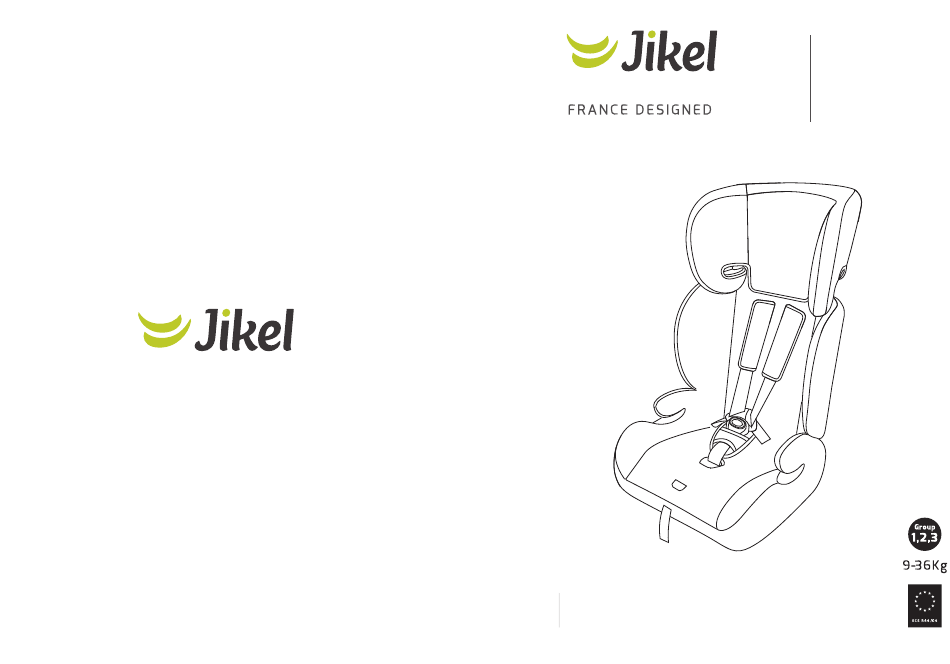

  • Page 1 MARS Carseat USER MANUAL IMPORTANT www.jikelbaby.com Retain for Future Reference & Read Carefully...
  • Page 2 User Instruction Notice 1. This is a"Universal" children restraint system (CRS) which is approved to ECE Regulation No.44/04 series of amendments and GB27887-2011， for general use in vehicles and it will fit most,but not all，car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle capable of accepting a "Universal"...

  • Page 3: Table Of Contents

    Content 1 Application scope 2 Using note 3 Part List 4 Baby car seat assembling and functions 5.Usage of Group 1 Installed 5.1 Belt installation 5.2 Fixation of Group I Children 5.3 Fixation of 5-point harness 6.Usage of Group 2 - 3 Installed 7.Usage of Group 3 Installed 8.Maintainance 8.1 Attention...

  • Page 4: Application Scope

    Certificated by ECE R44/04 and GB27887-2011, this baby safety seat is applicable for Group 1-2-3. Baby safety Seat Group Range of baby weight 9-36kg Mars 1-2-3 Certification ● This baby safety seat is designed and tested with the European Children Ristraint System standard (ECE R44/04) and the Chinese Children Ristraint System standard (GB27887-2011).
  • Page 5 ? optional：Only applicable for seat with no airbags（1d）. ?? optional：Only applicable for seats with 3-point safety belt (1d). ● DO NOT use this seat on side-facing or rear-facing car seats(image 1a,1b).Only applicable for front-facing car seats.Crash statistic shows that children are safer in back row seats.(image 1c,1d) ●...
  • Page 6 Danger ● 2-point car belt is forbidden to fix your baby. ● Please install the car seat and parts correctly according to the User Instruction, to ensure car seat not stuck by the door or seat of car. ● Belt should be installed correctly, ensure the belt be in the pelvis. ●...

  • Page 7: Part List

    3.Part List  Headrest Central adjuster button Shoulder pad safety belt Buckle Crotch pad car seat belt guide groove Central adjuster button adjusted belt Headrest adjuster Upper elastic strap Polypropylene shoulder strap mounting clamp Strap connecting plate...

  • Page 8: Baby Car Seat Assembling And Functions

    4.Baby car seat assembling and functions To assemble the seat, insert the headrest into the slot on top of backrest (Figure a) Hold the backrest and put the two hooks on backrest to the slots in the base (Figure b), then push the backrest till vertical(Figure d).

  • Page 9: Usage Of Group 1 Installed

    5.Usage of Group 1 Installed (Suitable to 9-18kg, 9 months-4 years' baby) Forward facing installation...

  • Page 10: Belt Installation

    near-end (Figure 2). ● let the belt go through backside of the backrest and draw it out of the belt passage on the other side (Figure 3,4). Note: The car belt must go under the straps of harness system. ● Make sure the car belt go through the belt guide groove, then buckle it on and fasten (Figure 5).

  • Page 11: Fixation Of Group I Children

    5.2 Fixation of Group I Children (Suitable to 9-18kg, 9 months-4 years' baby) 5.3 Fixation of 5-point harness ● Extend the safety belt ------ Push the central adjuster with one hand (Figure 6 h), pull outward the safety belts with the other hand (caution! do not pull the shoulder pad) ●...
  • Page 12 ● Put the two buckle tongues together and insert into the buckle until you hear a "click" sound. (Figure 8) ● Draw the adjusting strap forwardly to fastenthe harness system(Figure 9 j). Caution: The proper tightness is one finger space between the safety belt and the child's body.

  • Page 13: Usage Of Group 2 - 3 Installed

    6.Usage of Group 2 - 3 Installed (Suitable to 9-18kg, 9 months-4 years' baby) Forward facing installation Caution:5-point harness system must be removed in group 2 - 3 usage. (Refer to Page 14 Figure 13,14)

  • Page 14: Usage Of Group 3 Installed

    7.Usage of Group 3 Installed (Suitable to 9-18kg, 9 months-4 years' baby) Forward facing installation Caution:5-point harness system must be removed in group 3 usage (Refer to Page 14 Figure 13,14). Backrest and headrest must be removed (Refer to Page 15 Figure 15) as well.

  • Page 15: Maintainance

    8.Maintainance 8.1 Attention ● Accidents happened when the car speed higher than 10km/h,may cause invisible damage to the baby safety seat.Please change your baby safety seat after crash accident. ● Check all important parts regularly, make sure all mechanism functions properly. ●...

  • Page 16: Installation Of The Fabric Cover

    ● Release the black elastic bands (Figure 15 r). To disassemble the seat, press and fix the base with one hand and push the backrest with the other hand (Figure 15). ● Open the snap buttons on fabric cover to remove the whole cover(Figure 16). 8.4 Installation of the fabric cover ●...
