FUSION REMOTE DISPLAY KIT

DESCRIPTION

The remote display kit includes all necessary components (excluding
knockout punch) to mount the display to the front of an electrical
enclosure. This allows for easy viewing and adjustment of parameters
and reduces costs by eliminating the need for external gauges.
The remote display meets CE and UL requirements. CE testing was
conducted with a 25 foot cable from the controller to the display.
Contact the factory if you require a length longer than 25 feet.

MOUNTING CONSIDERATIONS

Must be mounted on enclosure with smooth surface.
Maximum panel thickness: 0.25 [6.4].

MOUNTING INSTRUCTIONS

Mounting Kit includes:
(1) Gasket
(1) Display retainer
(1) 5 or 25 foot shielded cable
(1) Empty Display with CCI logo to replace actual display

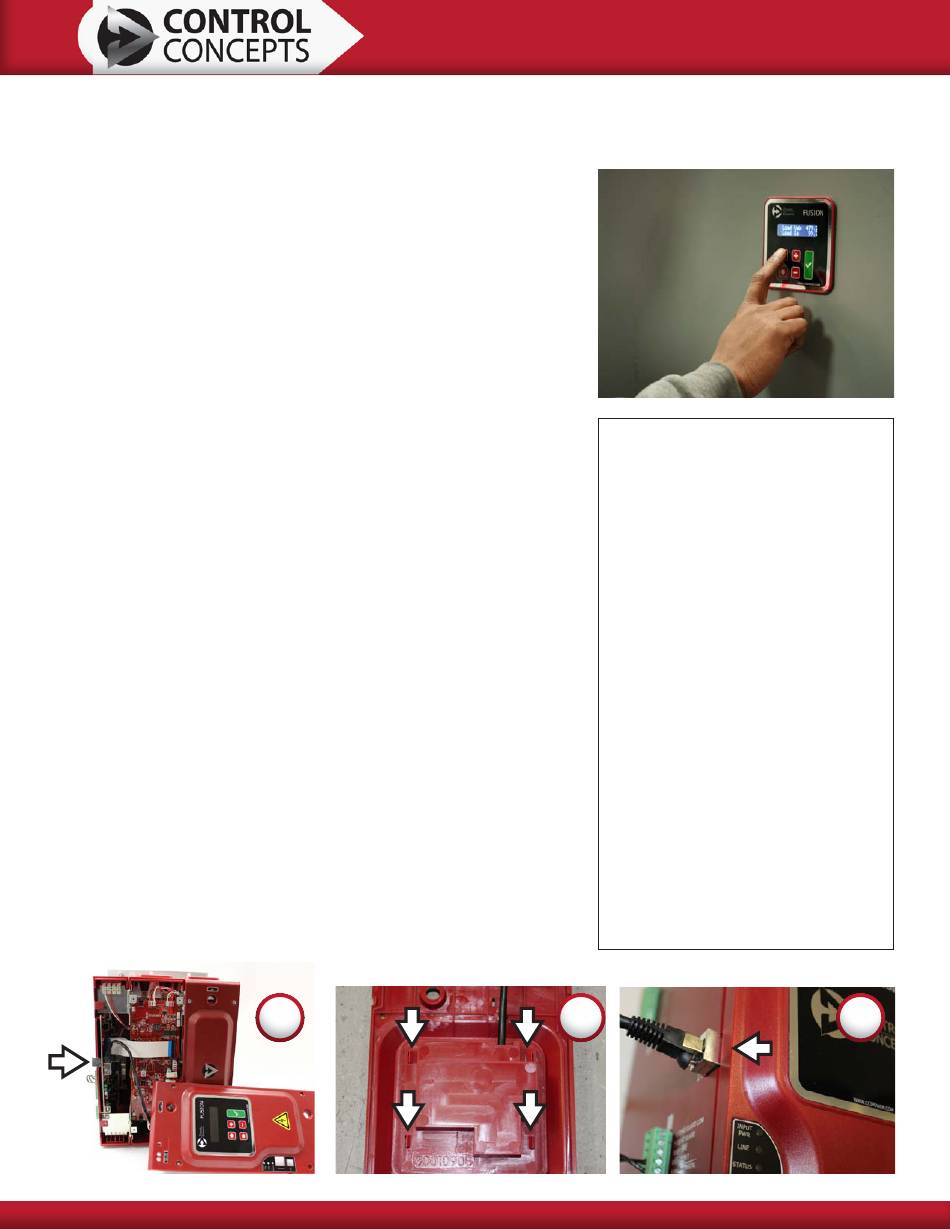

1. Carefully remove the 4 screws securing the lid.
2. Disconnect the display cable from the controller. (See Fig. 1)
3. Remove the display from the lid. The four tabs holding the
display into the lid are marked. (See Fig. 2)
4. Insert the empty display into the lid and reattach to the
controller.
5. Remove the 1 foot cable from the display. Run one end of
the 5 or 25 foot cable to the Remote Display connector on the
side of the controller (See Number 3)
FUSION Remote Display Kit Guide
(1) Ferrite
(4) Screws
1
www.ccipower.com

RATINGS

IP65 - Totally protected against
ingress of dust. Protected against
jets of water. Limited ingress
permitted.
UL Type 1 - Enclosure constructed
for indoor use to provide a
degree of protection to personnel
against incidental contact with
the enclosure equipment and to
provide a degree of protection
against falling dirt.
UL Type 12 - Enclosures
constructed (without knockouts)
for indoor use to provide a degree
of protection to personnel against
incidental contact with the enclosed
equipment; to provide a degree
of protection against falling dirt,
against circulating dust, lint, fibers,
and filings; against dripping and
light splashing of non-corrosive
liquids; and against light splashing
and consequent seepage of oil and
non-corrosive coolants.
2
1-800-765-2799
3
© Control Concepts Inc., 2013
