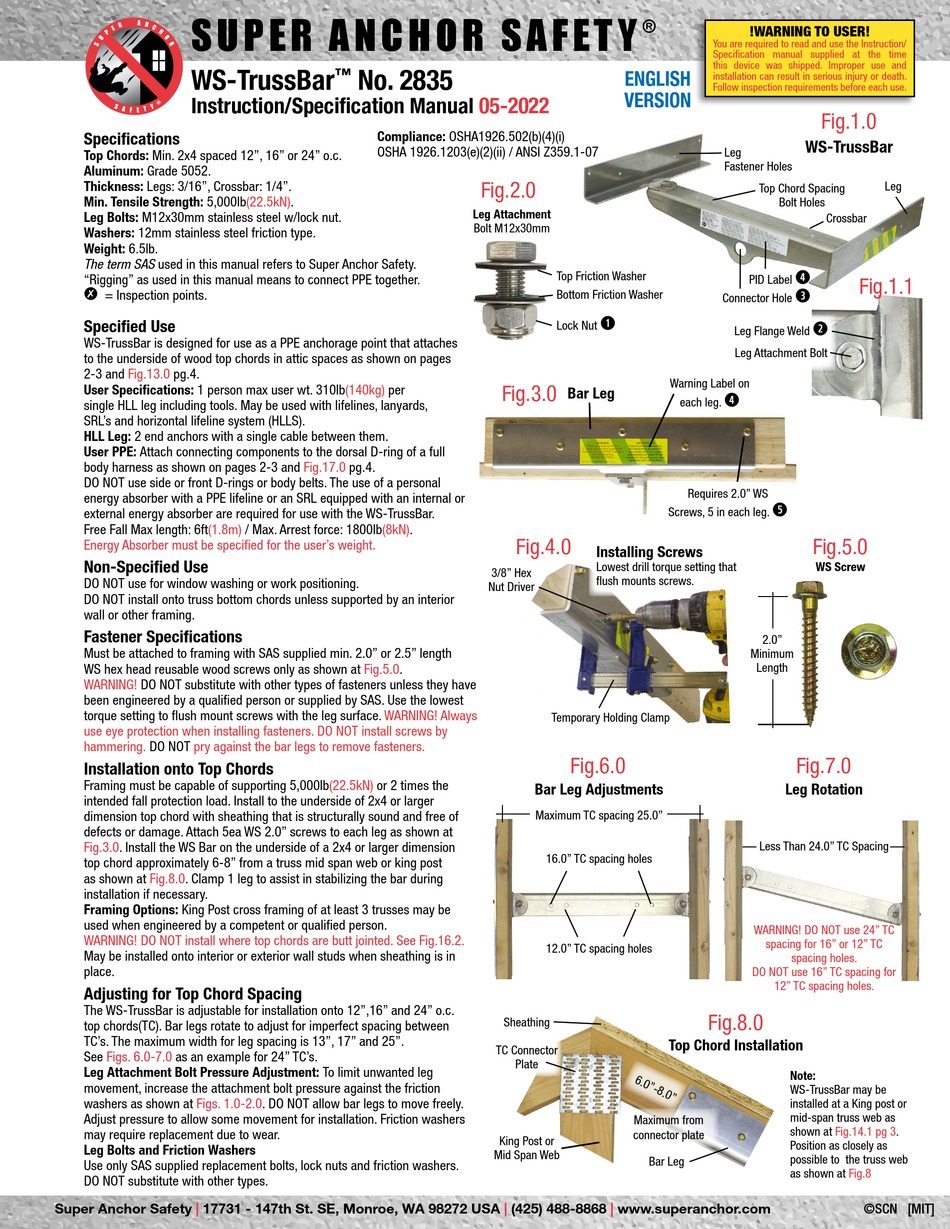

Super Anchor Safety WS-TrussBar Instruction Manual

S U P E R A N C H O R S A F E T Y
WS-TrussBar
Instruction/Specification Manual

Specifications

Top Chords: Min. 2x4 spaced 12", 16" or 24" o.c.
Aluminum: Grade 5052.
Thickness: Legs: 3/16", Crossbar: 1/4".
Min. Tensile Strength: 5,000lb(22.5kN).
Leg Bolts: M12x30mm stainless steel w/lock nut.
Washers: 12mm stainless steel friction type.
Weight: 6.5lb.
The term SAS used in this manual refers to Super Anchor Safety.
"Rigging" as used in this manual means to connect PPE together.
 = Inspection points.

Specified Use

WS-TrussBar is designed for use as a PPE anchorage point that attaches
to the underside of wood top chords in attic spaces as shown on pages
2-3 and Fig.13.0 pg.4.
User Specifications: 1 person max user wt.
single HLL leg including tools. May be used with lifelines, lanyards,
SRL's and horizontal lifeline system (HLLS).
HLL Leg: 2 end anchors with a single cable between them.
User PPE: Attach connecting components to the dorsal D-ring of a full
body harness as shown on pages 2-3 and
DO NOT use side or front D-rings or body belts. The use of a personal
energy absorber with a PPE lifeline or an SRL equipped with an internal or
external energy absorber are required for use with the WS-TrussBar.
Free Fall Max length: 6ft(1.8m)
Energy Absorber must be specified for the user's weight.

Non-Specified Use

DO NOT use for window washing or work positioning.
DO NOT install onto truss bottom chords unless supported by an interior
wall or other framing.

Fastener Specifications

Must be attached to framing with SAS supplied min. 2.0" or 2.5" length
WS hex head reusable wood screws only as shown at Fig.5.0.
WARNING! DO NOT substitute with other types of fasteners unless they have
been engineered by a qualified person or supplied by SAS. Use the lowest
torque setting to flush mount screws with the leg surface.
use eye protection when installing fasteners. DO NOT install screws by
hammering. DO NOT pry against the bar legs to remove fasteners.

Installation onto Top Chords

Framing must be capable of supporting
intended fall protection load. Install to the underside of 2x4 or larger
dimension top chord with sheathing that is structurally sound and free of
defects or damage. Attach 5ea WS 2.0" screws to each leg as shown at
Fig.3.0. Install the WS Bar on the underside of a 2x4 or larger dimension
top chord approximately 6-8" from a truss mid span web or king post
as shown at Fig.8.0. Clamp 1 leg to assist in stabilizing the bar during
installation if necessary.
Framing Options: King Post cross framing of at least 3 trusses may be
used when engineered by a competent or qualified person.
WARNING! DO NOT install where top chords are butt jointed. See Fig.16.2.
May be installed onto interior or exterior wall studs when sheathing is in
place.

Adjusting for Top Chord Spacing

The WS-TrussBar is adjustable for installation onto 12",16" and 24" o.c.
top chords(TC). Bar legs rotate to adjust for imperfect spacing between
TC's. The maximum width for leg spacing is 13", 17" and 25".
See Figs. 6.0-7.0 as an example for 24" TC's.
Leg Attachment Bolt Pressure Adjustment: To limit unwanted leg
movement, increase the attachment bolt pressure against the friction
washers as shown at Figs. 1.0-2.0. DO NOT allow bar legs to move freely.
Adjust pressure to allow some movement for installation. Friction washers
may require replacement due to wear.

Leg Bolts and Friction Washers

Use only SAS supplied replacement bolts, lock nuts and friction washers.
DO NOT substitute with other types.
Super Anchor Safety | 17731 - 147th St. SE, Monroe, WA 98272 USA
No. 2835
™
Compliance: OSHA1926.502(b)(4)(i)
OSHA 1926.1203(e)(2)(ii) / ANSI Z359.1-07
310lb(140kg) per
Fig.17.0 pg.4.
/ Max. Arrest force: 1800lb(8kN).
WARNING! Always
5,000lb(22.5kN) or 2 times the
®
ENGLISH
VERSION
05-2022
Fig.2.0
Leg Attachment
Bolt M12x30mm
Top Friction Washer
Bottom Friction Washer

Lock Nut
Fig.3.0
Bar Leg
Fig.4.0
Installing Screws
Lowest drill torque setting that
3/8" Hex
flush mounts screws.
Nut Driver
Temporary Holding Clamp
Fig.6.0
Bar Leg Adjustments
Maximum TC spacing 25.0"
16.0" TC spacing holes
12.0" TC spacing holes
Sheathing
TC Connector
Plate
Maximum from
connector plate
King Post or
Mid Span Web
Bar Leg
| (425) 488-8868 | www.superanchor.com
!WARNING TO USER!
You are required to read and use the Instruction/
Specification manual supplied at the time
this device was shipped. Improper use and
installation can result in serious injury or death.
Follow inspection requirements before each use.
Fig.1.0
WS-TrussBar
Leg
Fastener Holes
Top Chord Spacing
Bolt Holes
Crossbar

PID Label

Connector Hole

Leg Flange Weld
Leg Attachment Bolt
Warning Label on

each leg.
Requires 2.0" WS

Screws, 5 in each leg.
Fig.5.0
WS Screw
2.0"
Minimum
Length
Fig.7.0
Leg Rotation
Less Than 24.0" TC Spacing
WARNING! DO NOT use 24" TC
spacing for 16" or 12" TC
spacing holes.
DO NOT use 16" TC spacing for
12" TC spacing holes.
Fig.8.0
Top Chord Installation
Note:
WS-TrussBar may be
installed at a King post or
mid-span truss web as
shown at Fig.14.1 pg
Position as closely as
possible to the truss web
as shown at
Leg
Fig.1.1
3.
Fig.8
