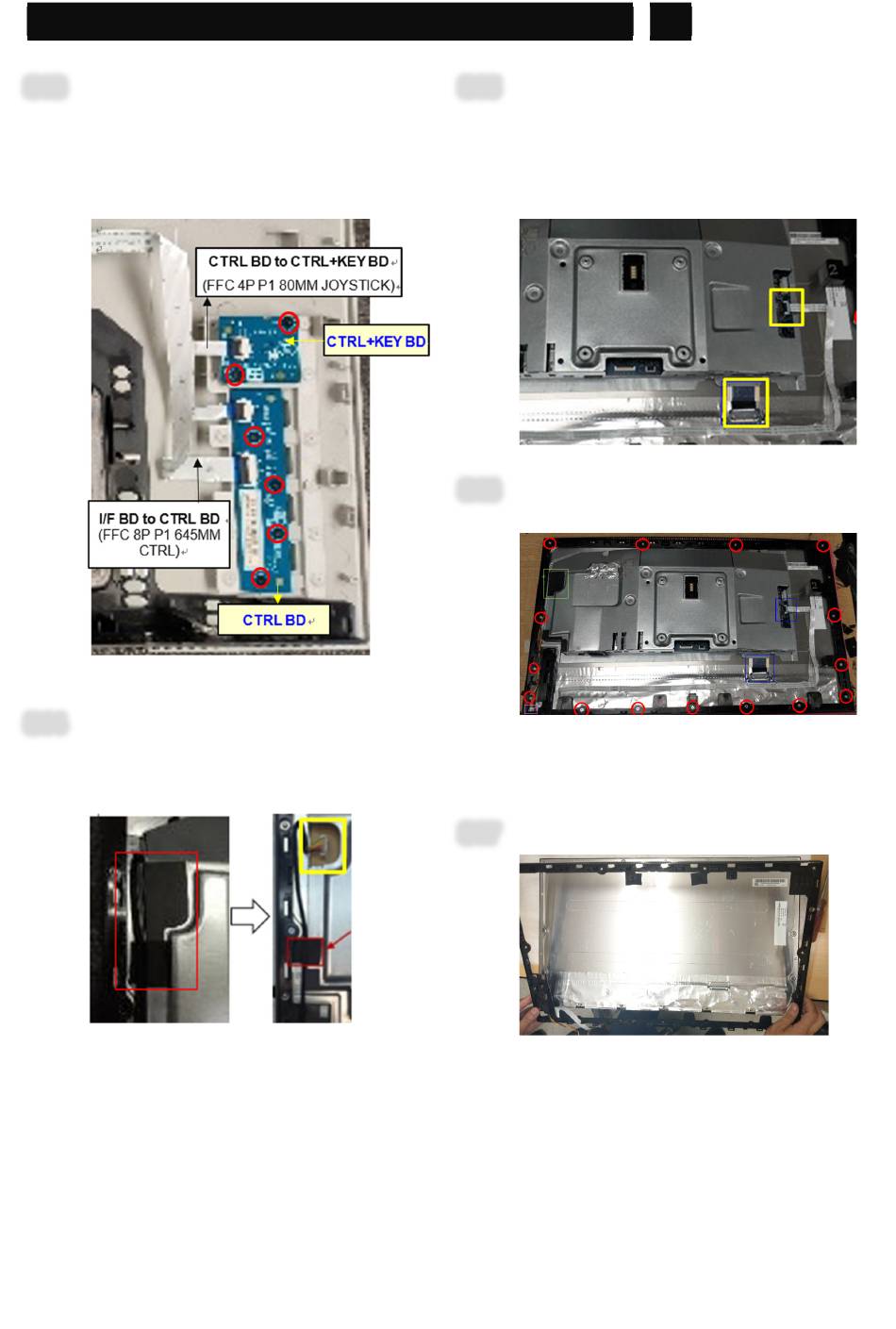

DELL AW2521HF/ AW2521HFL/ AW2521HFA/ AW2521HFLA
Remove FFC cables from Rear Cover,
S13
CTRL BD and CTRL+KEY BD
Unlock 6 screws to disassemble CTRL
BD and CTRL+KEY BD from Rear
Cover
(Screw Torque: 2.0±0.5kgf)
Tear off mylar and all tapes from
S14
Backlight Wire on Main SHD
Unplug Backlight Wire from SPS BD
Unplug "Power LENS FFC cable" from
S15
I/F BD and tear off "Power LENS FFC
cable" from the panel
Unplug EDP FFC Cable between panel
and I/F BD
Unlock 15 screws to disassemble
S16
Middle Frame from Panel
(Screw Torque: 4.0±0.5kgf)
Take off Main SHD from Panel and
S17
disassemble Middle Frame from Panel
3
