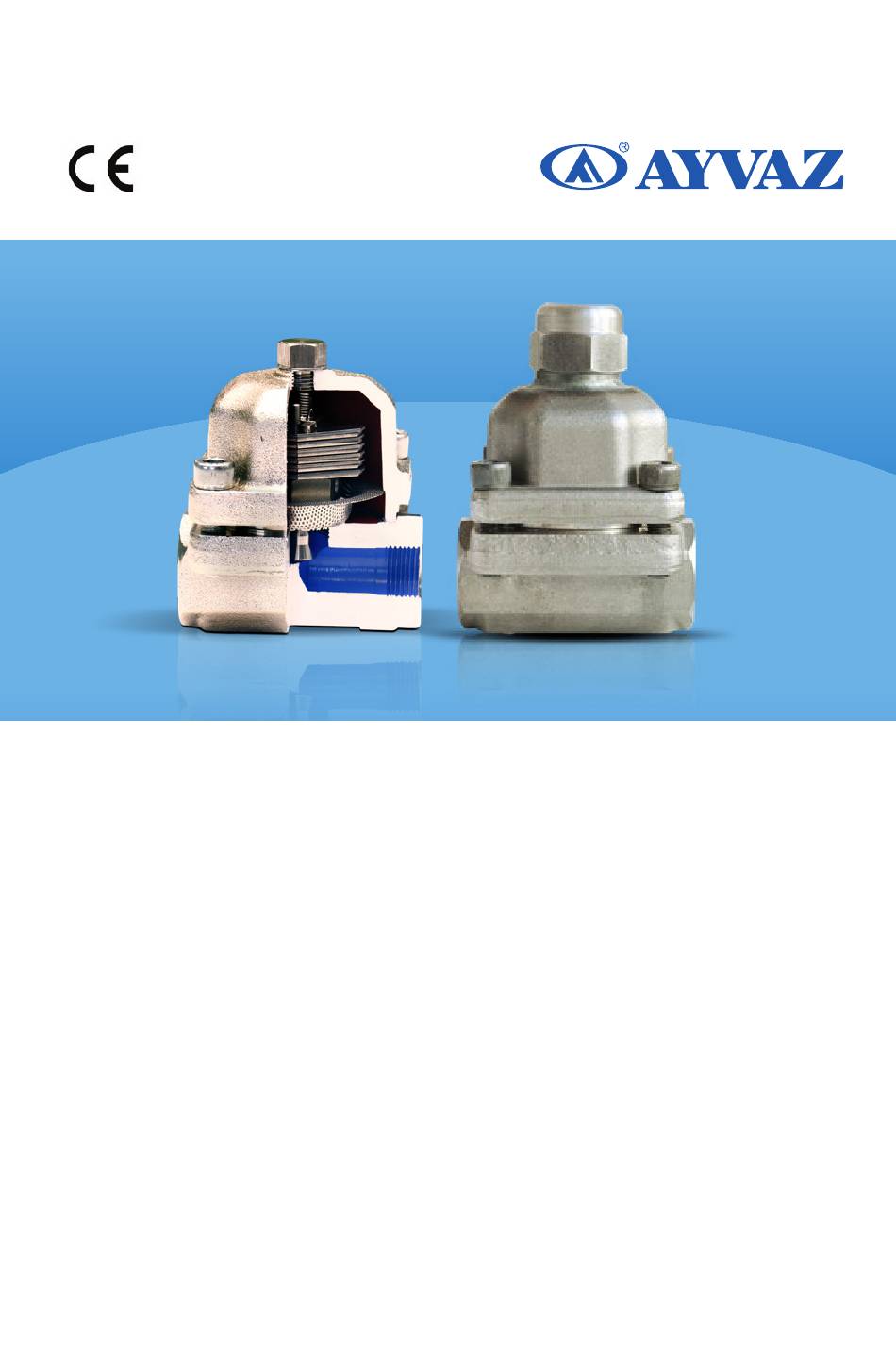

- Page 1 USER MANUAL BIMETALLIC STEAM TRAP TK-1/ TK-1A...
- Page 2 FIRE DANGER Warning danger of fire! HOT SURFACE Warning risk of hot surface! © 03/2019 Hacı Ayvaz Endüstriyel Mamuller Sanayi ve Ticaret A.Ş. All Rights Reserved. AYVAZ® is a registered trademark. Please read this manual before you start using it!
-
Page 3: Table Of Contents
Bimetallic Steam Trap CONTENT PAGE TITLE General Information General Features Safety and Environmental Instructions Transport, Packaging and Storage Installation Operation Maintenance and Cleaning Disassembly, Maintenance and Cut-out Technical Drawing... -
Page 4: General Information
· General terms and conditions stated at sales document. · Ayvaz reserves the right to change products, specifications at any time and without any prior notice. Product Code: TK-1 / TK-1A 2. GENERAL FEATURES 2.1 GENERAL SAFETY INFORMATION... - Page 5 Signs should be placed where the fluid temperature is 60 ° C and above. The device must be operated in accordance with the general safety instructions listed above. Ayvaz cannot be held responsible for problems arising from use that does not comply with the safety instructions.
-
Page 6: Transport, Packaging And Storage
Bimetallic Steam Trap 3.4 Responsibility of the User This device is a commercial product. Therefore, the user is responsible for legal obligations related to occupational safety. Along with the safety instructions specified in this user manual; accident prevention measures and environmental protection laws must be observed. To use the device safely, the user must follow the instructions below;... -
Page 7: Installation
FLOW DIRECTION STEAM LINE FUEL-OIL FUEL-OIL LINE LINE STEAM LINE TK-1 CONDENSATE LINE DRAIN 6. OPERATION The main element in bimetallic steam traps is the valve and bimetallic itself. bimetal; It is a composite material consisting of two separate plates having different coefficients of expansion. -
Page 8: Maintenance And Cleaning Disassembly
Bimetallic Steam Trap 7. MAINTENANCE AND CLEANING 7.1 Maintenance Before doing any operation on the trap, such as; the condensate must be isolated from the supply line and return line and the pressure in the system must be relieved safely. The trap should then be allowed to cool. -
Page 9: Maintenance And Cut-Out
Bimetallic Steam Trap 8. DISASSEMBLY, MAINTENANCE AND CUT-OUT Fluid that can cause physical injury, product damage and environmental damage. · Carefully clean the dismantled device to eliminate physical injuries, fluid damage, and damage to the environment. 8.1 Disassembly If there are closing valves, remove the device safely after closing the closing valves. If there is not closing valve, remove only the device to be disassembled on the tank when the system pressure and electrical connections are cut off. - Page 10 Bimetallic Steam Trap DN(mm) 115,5 125,5 195,5 PART LIST Part Name Material Body C 22,8 Control Unit Seat AISI 304 Gasket Klingerit Seat AISI 304 Filter AISI 304 Seat Gasket AISI 304 Bolt Bimetallic Plate Stem AISI 304 Cover C 22,8 Cover Set Gasket AISI 304 Cover Set Stopper...
- Page 11 Bimetallic Steam Trap DN(mm) 114,5 114,5 114,5 115,5 125,5 PART LIST Part Name Material Body C 22,8 Control Unit Seat AISI 304 Gasket Klingerit Seat AISI 304 Filter AISI 304 Seat Gasket AISI 304 Bolt Bimetallic Plate Stem AISI 304 Cover C 22,8 Cover Set Gasket...
- Page 12 Bimetallic Steam Trap DN(mm) 114,5 114,5 114,5 PART LIST Part Name Material Body C 22,8 Control Unit Seat AISI 304 Gasket Klingerit Seat AISI 304 Filter AISI 304 Seat Gasket AISI 304 Bolt Bimetallic Plate Stem AISI 304 Cover C 22,8 Cover Set Gasket AISI 304 Cover Set Stopper...
- Page 13 Bimetallic Steam Trap PART LIST Part Name Material Body C 22,8 Gasket Klingerit Seat AISI 304 Filter AISI 304 Seat Gasket AISI 304 Imbus Bolt Bimetallic Plate Stem AISI 304 Bolt Ring AISI 304 Adjustment Nut Bearing AISI 304 Bimetallic Plate AISI 304 Bimetallic Plate AISI 304...
- Page 14 Bimetallic Steam Trap PART LIST Part Name Material Body C 22,8 Gasket Klingerit Seat AISI 304 Filter AISI 304 Seat Gasket AISI 304 Imbus Bolt Bimetallic Plate Stem AISI 304 Bolt Ring AISI 304 Adjustment Nut Bearing AISI 304 Bimetallic Plate AISI 304 Bimetallic Plate AISI 304...
- Page 15 Ayar civata yatağı AISI 304 603408000004 S.NO ADET PARÇA ADI MALZEME ÖLÇÜ RESİM NO AÇIKLAMA 603408000005 İSİM TARİH İMZA AYVAZ AYVAZ Civata kilidi AISI 304 Kapak ayar tapası 9 SMn 36 603408000006 ÇİZEN B.ÖZBURSALI 22.12.2009 IMPORTANT Kapak ayar tapa contası AISI 304...
- Page 16 11. ADJUSTMENT TK-1 A 1. Wear heat protection gloves for your own safety. 2. Remove the stem cover with tool. 3. Adjust the discharge temperature stem with screwdriver. 4. Close the stem cover. HEAD OFFICE - FACTORY Atatürk Sanayi Bölgesi Hadımköy Mahallesi Mustafa İnan Caddesi No: 44 Arnavutköy - İSTANBUL...
