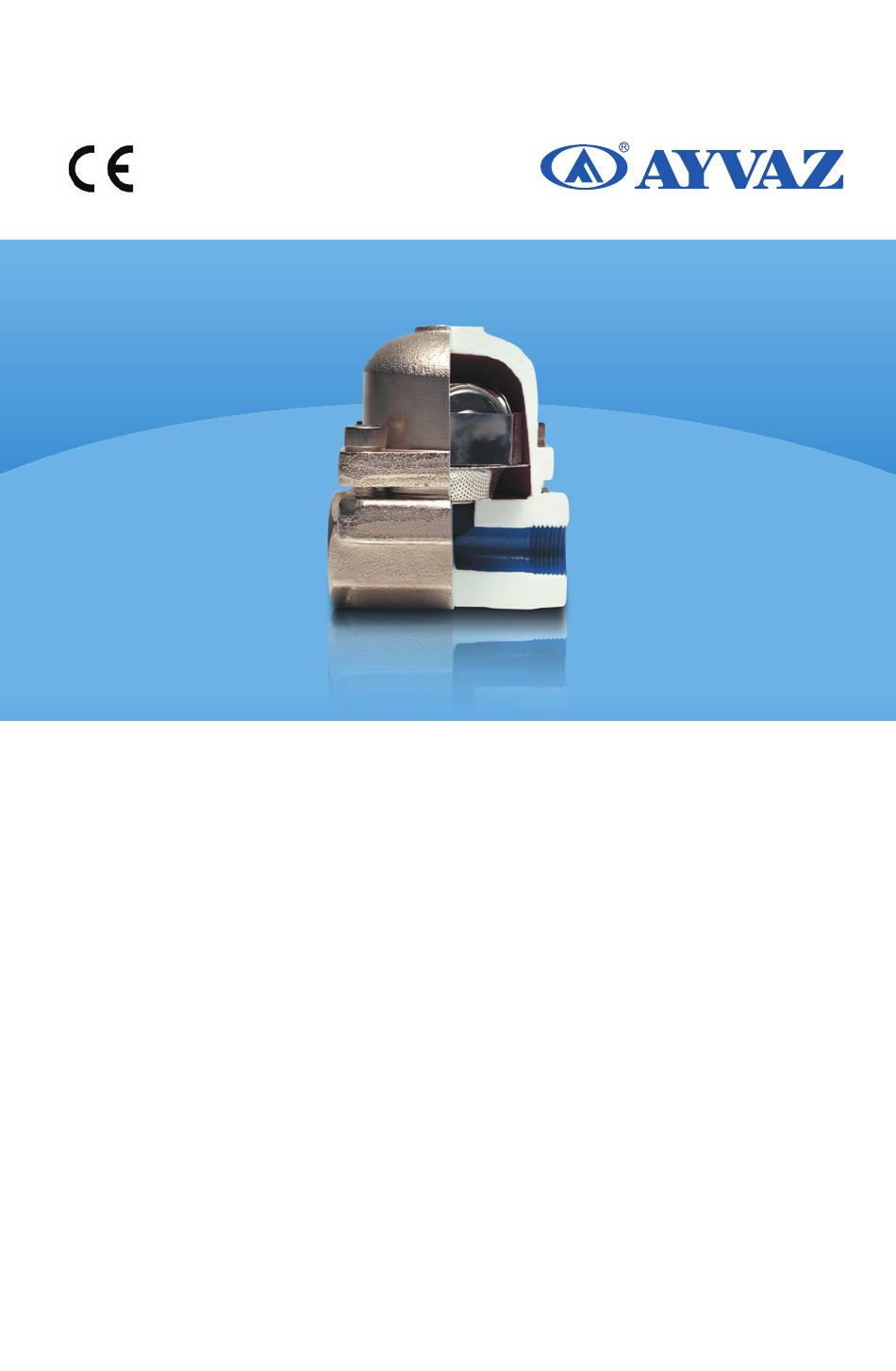

- Page 1 USER MANUAL THERMOSTATIC STEAM TRAP TKK-3/ TKK-3Y...
- Page 2 FIRE DANGER Warning danger of fire! HOT SURFACE Warning risk of hot surface! © 08/2022 Hacı Ayvaz Endüstriyel Mamuller Sanayi ve Ticaret A.Ş. All Rights Reserved. AYVAZ® is a registered trademark. Please read this manual before you start using it!
-
Page 3: Table Of Contents
CONTENT PAGE TITLE General Information General Features Safety and Environmental Instructions Transport, Packaging and Storage Installation Operation Maintenance and Cleaning Disassembly, Maintenance and Cut-out Technical Drawing... -
Page 4: General Information
· General terms and conditions stated at sales document. · Ayvaz reserves the right to change products, specifications at any time without any prior notice. Product Code: TKK-3 2. GENERAL FEATURES 2.1 GENERAL SAFETY INFORMATION Safe use of the trap is ensured if it is properly installed and maintained by a qualified person in accordance with the operating instructions. - Page 5 Signs should be placed where the fluid temperature is 60 ° C and above. The item must be operated in accordance with the general safety instructions listed above. Ayvaz cannot be held responsible for problems arising from use that does not comply with the safety instructions.
-
Page 6: Transport, Packaging And Storage
TKK-3 THERMOSTATIC STEAMTRAP 3.4 Responsibility of the User This item is a commercial product. Therefore, the user is responsible for legal obligations related to occupational safety. Along with the safety instructions specified in this user manual; accident prevention measures and environmental protection laws must be considered. -
Page 7: Installation
TKK-3 THERMOSTATIC STEAMTRAP 5. INSTALLATION Before the installation, you should read safety instructions carefully. Check the label and technical information sheet if the product is suitable for the required installation. Check the maximum pressure and temperature values. lf the pressure in the system is higher than the maximum value of the product, provide the use of safety tools in order to prevent the excess pressure. - Page 8 TKK-3 THERMOSTATIC STEAMTRAP 7. MAINTENANCE AND CLEANING 7.1 Maintenance Before performing any operation on the steam trap; The trap must be isolated from the supply line and the return line, and the pressure in the system must be safely relieved.
- Page 9 TKK-3 THERMOSTATIC STEAMTRAP 8. DISASSEMBLY, SEND TO MAINTENANCE AND DISABLE Fluid that can cause physical injury, product damage, and environmental damage. · Carefully clean the disassembled device to avoid physical injury, product damage, and environmental damage from fluid. 8.1 Disassembly If there are shut-off valves;...
-
Page 10: Technical Drawing
TKK-3 THERMOSTATIC STEAMTRAP 9.TECHNICAL DRAWINGS TKK 3 PARÇALAR / PARTS Gövde Paslanmaz Çelik Body Forged Steel ASTM A105 Kapak Contası Klingerit Cover Gasket Klingerite Kapak Paslanmaz Çelik Cover Forged Steel ASTM A105 Filtre Paslanmaz Çelik Strainer Stainless Steel AISI 304 Kapsül Siti... - Page 11 TKK-3 THERMOSTATIC STEAMTRAP MATERIALS Body Stainless Steel Cover Gasket Klingirit Cover Stainless Steel Filter Stainless Steel Capsule Seat Stainless Steel Thermostatic Capsule Stainless Steel Cover Gasket Stainless Steel Stainless Steel Spring...
- Page 12 USER MANUAL THERMOSTATIC STEAM TRAP TKK-3 / TKK-3Y HEAD OFFICE - FACTORY Atatürk Sanayi Bölgesi Hadımköy Mahallesi Mustafa İnan Caddesi No: 44 Arnavutköy - İSTANBUL Tel: +90 212 771 01 45 (pbx) | Fax: +90 212 771 47 27 info@ayvaz.com | www.ayvaz.com...
