Magnavox 9MDPF20 Quick Use Manual

9MDPF qug 20/03/2003 10:24 AM
There are many ways to connect your new TV/DVD to your other equipment.This Quick-Use
Guide shows the easiest, most common connections for the TV/DVD.
4
1
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets
only after you have finished hooking up everything. Never make or change connections with equipment
connected to the power outlet.
2
If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the
ANT(enna) jack on the rear of the TV/DVD.
3
If you do have a Cable Box or Satellite Receiver, first connect the Cable TV or Satellite signal to
the IN jack on the Cable Box or Satellite Receiver. Then, use an RF coaxial cable (not supplied)
to connect the OUT jack of the Cable Box or Satellite Receiver to the ANT(enna) jack on the
TV/DVD. To view any channel, set the TV/DVD to the output channel of the Cable Box or Satellite Receiver
(channel 3 or 4).Then, select channels at the Cable Box or Satellite Receiver.
4
When all connections are complete, plug the power cord of the TV/DVD into an active power
outlet.
5 Press the STANDBY-ON 2 button on the TV/DVD or its remote to turn on the TV/DVD.
The first time you turn on the TV/DVD, you should complete the TV/DVD setup. See the
other side of this Quick-Use Guide for details.
Page 1
Quick-Use Guide
Quick-Use Guide

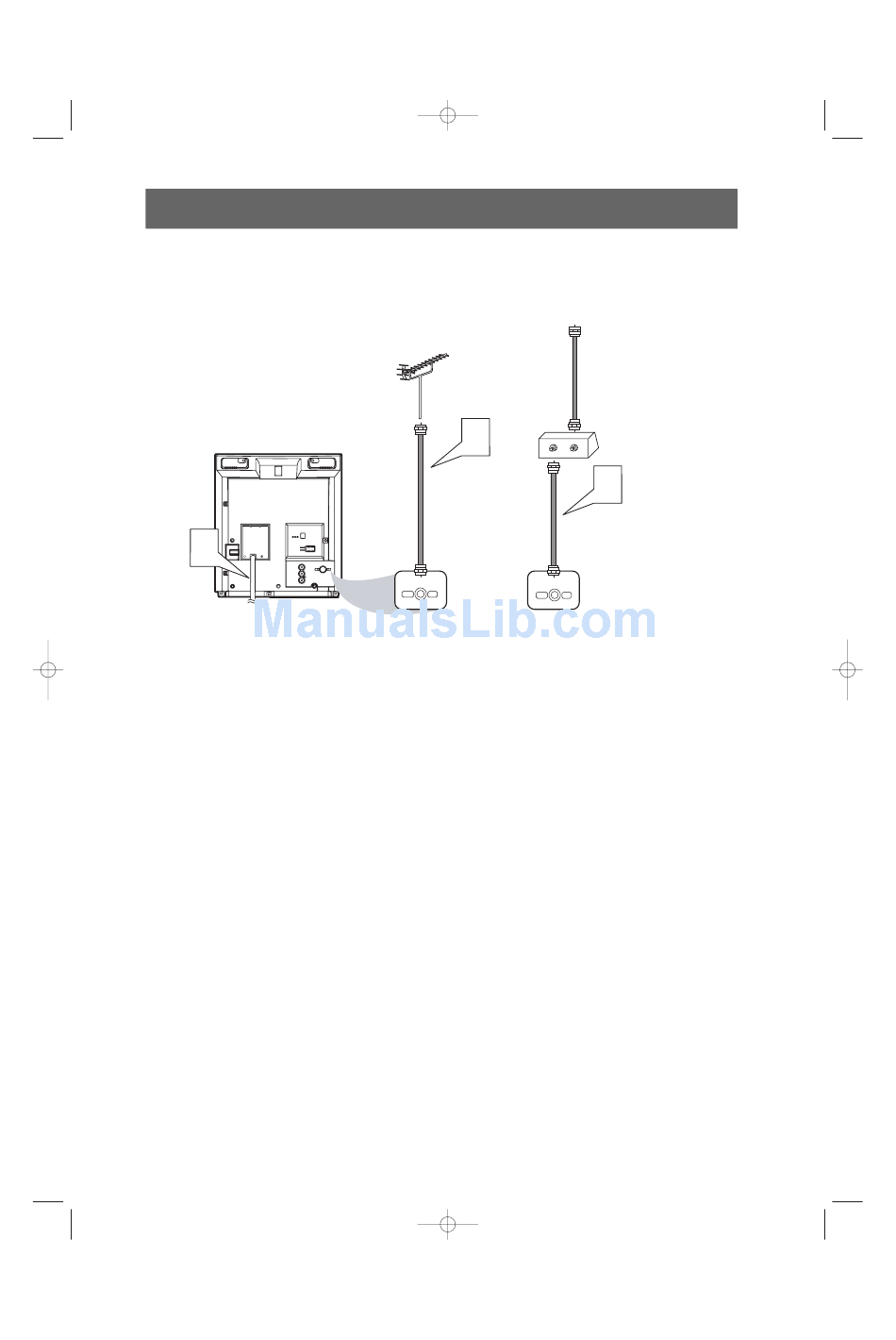

ANTENNA or
