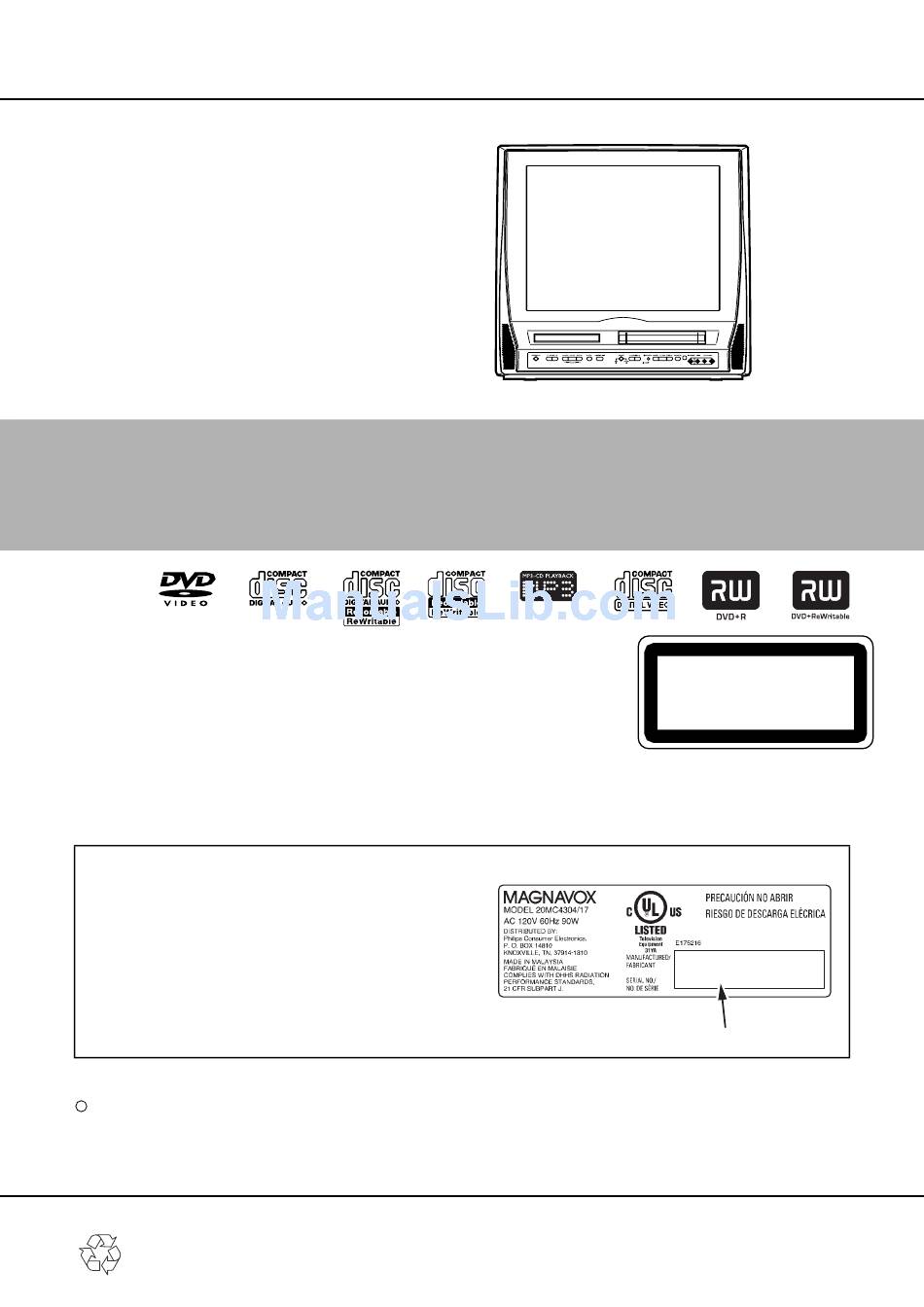

Magnavox 20MC4304/17 Service Manual
Hide thumbs Also See for 20MC4304/17:

Advertisement

Color TV with Built-In VCR/DVD Player
Service
Service
Service
Service Manual
Contents
Chapter
Sec. 1: Adjustment Procedures
Schematic Diagrams and CBA's
Exploded Views
Mechanical and Electrical Parts Lists
Sec. 2: Standard Maintenance
Mechanism Alignment Procedures
Disassembly / Assembly of Mechanism
Deck Exploded Views
Deck Parts List
This service manual is for 20MC4304/17
Third Generation model, which is different
from the previous generation 20MC4304/17
models.
For Third Generation model, the serial
number begins with DD2Bxxxxxxxxxx.
Refer to the rating label illustration at right.
c Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
Published by FU-KC 0517 Service AV Systems
Survey of versions:
/17
NTSC
Printed in The Netherlands
20MC4304/
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
Rating label
MARCH 2005 V x x x x
D D 2 B x x x x x x x x x x
Serial number
Subject to modification
17
EN 3139 785 31060
