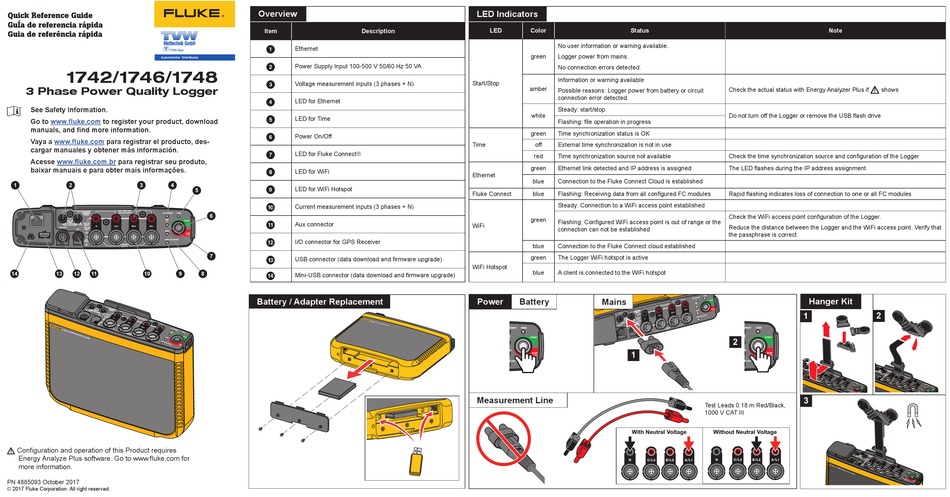

Fluke 1742 Quick Reference Manual

Quick Reference Guide
GuÍa de referencia rápida
Guia de referência rápida
Autorisierter Distributor

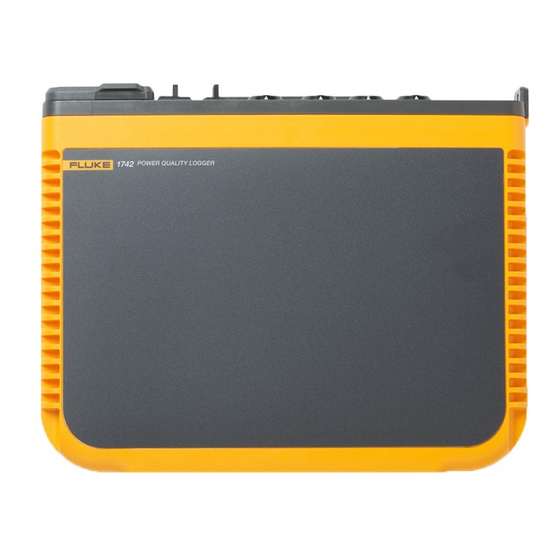

1742/1746/1748
3 Phase Power Quality Logger
» See Safety Information.
Go to www.fluke.com to register your product, download
manuals, and find more information.
Vaya a www.fluke.com para registrar el producto, des-
cargar manuales y obtener más información.
Acesse www.fluke.com.br para registrar seu produto,
baixar manuais e para obter mais informações.
1 2 3 4
14 13 12 11 10 9
W Configuration and operation of this Product requires
Energy Analyze Plus software. Go to www.fluke.com for
more information.
PN 4885093 October 2017
© 2017 Fluke Corporation. All right reserved.
Overview
Item Description
Ethernet
A
B Power Supply Input 100-500 V 50/60 Hz 50 VA
Voltage measurement inputs (3 phases + N)
C
D LED for Ethernet
E LED for Time
Power On/Off
F
G LED for Fluke Connect®
LED for WiFi
H
I LED for WiFi Hotspot
5
Current measurement inputs (3 phases + N)
J
6
Aux connector
K
L I/O connector for GPS Receiver
7
USB connector (data download and firmware upgrade)
M
8
N Mini-USB connector (data download and firmware upgrade)
Battery / Adapter Replacement
LED Indicators
LED Color Status
No user information or warning available.
green Logger power from mains.
No connection errors detected.
Information or warning available
Start/Stop
amber
Possible reasons: Logger power from battery or circuit
connection error detected.
Steady: start/stop
white
Flashing: file operation in progress
green Time synchronization status is OK
Time off External time synchronization is not in use
red Time synchronization source not available
green Ethernet link detected and IP address is assigned
Ethernet
blue Connection to the Fluke Connect Cloud is established
Fluke Connect blue Flashing: Receiving data from all configured FC modules
Steady: Connection to a WiFi access point established
green
Flashing: Configured WiFi access point is out of range or the
WiFi
connection can not be established
blue Connection to the Fluke Connect cloud established
green The Logger WiFi hotspot is active
WiFi Hotspot
blue A client is connected to the WiFi hotspot
Power Battery Mains
1
Measurement Line
With Neutral Voltage
Note
Check the actual status with Energy Analyzer Plus if shows
W
Do not turn off the Logger or remove the USB flash drive
Check the time synchronization source and configuration of the Logger
The LED flashes during the IP address assignment
Rapid flashing indicates loss of connection to one or all FC modules
Check the WiFi access point configuration of the Logger.
Reduce the distance between the Logger and the WiFi access point. Verify that
the passphrase is correct.
Hanger Kit
1 2
2
3
Test Leads 0.18 m Red/Black,
1000 V CAT III
Without Neutral Voltage
