Page 1

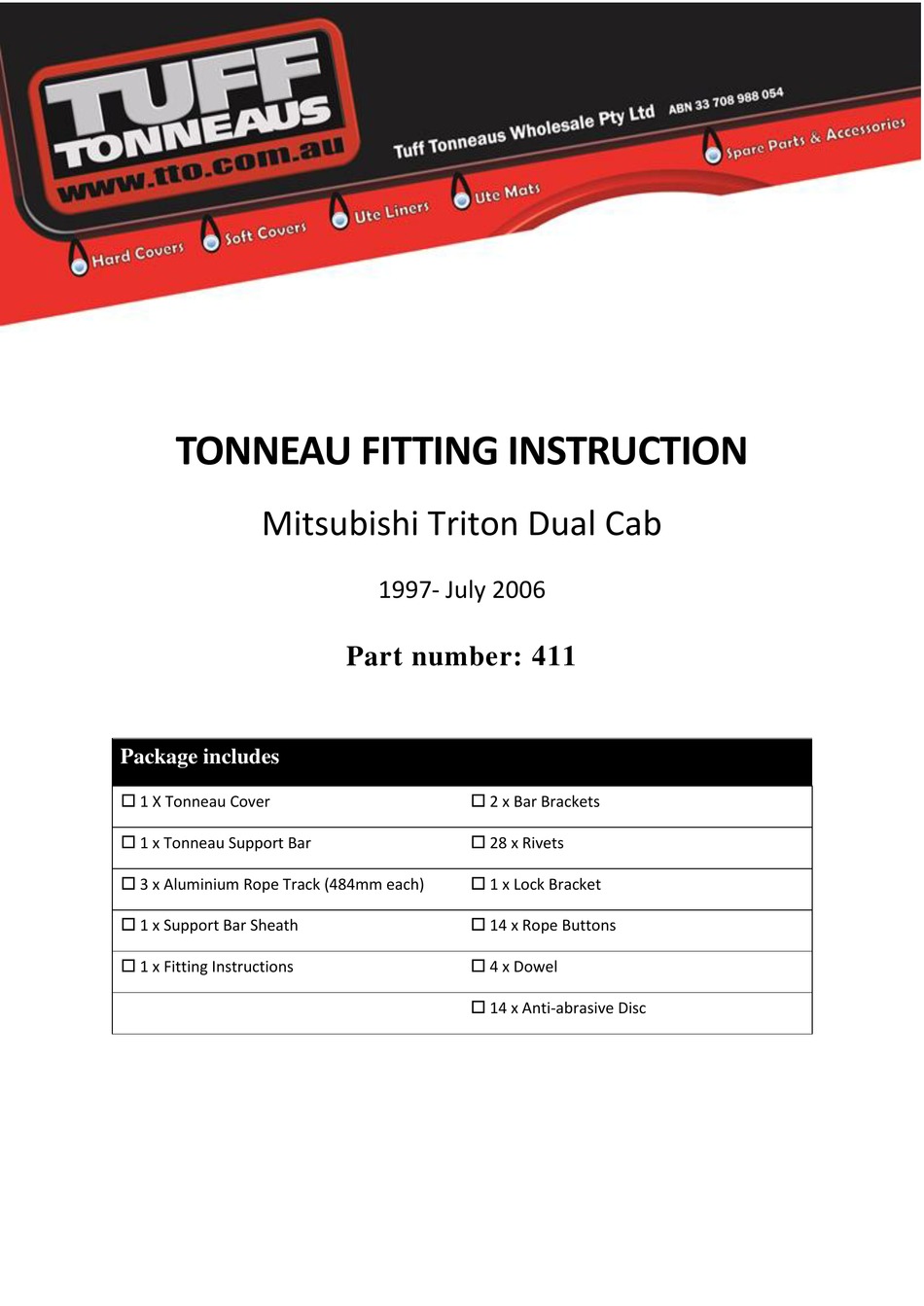

TONNEAU FITTING INSTRUCTION Mitsubishi Triton Dual Cab 1997- July 2006 Part number: 411 Package includes 1 X Tonneau Cover 2 x Bar Brackets 1 x Tonneau Support Bar 28 x Rivets 3 x Aluminium Rope Track (484mm each) ...
Page 2
1. TONNEAU COVER FITTING NOTE Read entire instructions prior to start. 1.1 BASIC TOOL REQUIRED Drill, 4mm Drill Bit, Rivet Gun, Marking Pencil / Pen 1.2 TONNEAU COVER INSTALLATION PROCEDURE Note: To prevent corrosion apply an anti-corrosive primer to all holes drilled. 1.
Page 4
2. TONNO LOCK The Tonno Lock is now a standard feature included with all Tuff Tonneaus. The Tonno Lock is situated at the front of the tonneau cover, so as not to impede the accessibility of the Tuff Tonneau. Fitting the lock is simple and only requires a small attachment on the inside edge of the tub behind the cab.
Page 5
3.2 MULTI-FIT SUPPORT BAR CONTENTS 1 x hollow bar centrepiece 2 x grub screws 2 x solid bar end piece 1 x Tonneau bar sheath 3.3 FITTING MULTI-FIT BAR 1. Insert solid bar pieces into either end of hollow tube. Adjust bar so it fits between bar bracket holders with the holes facing to the ground (so the grub screws don’t rub against the tonneau), as shown above and then with a white pencil make a mark through the small holes of the hollow bar onto the solid ends.
