Cubi Series
Personal Computer

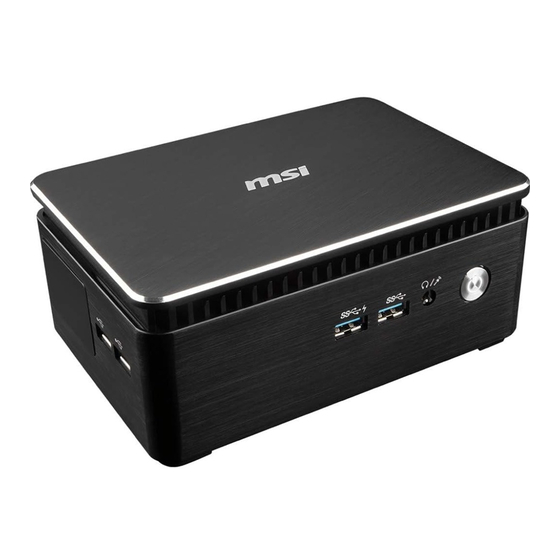

Cubi B159
G52-B1591X4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cubi B159 and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI Cubi B159

  • Page 1 Cubi Series Personal Computer Cubi B159 G52-B1591X4...
  • Page 2: Table Of Contents

    Contents Copyright Notice ������������������������������������������������������������������������������������������������������iii Trademarks �������������������������������������������������������������������������������������������������������������iii Revision History ������������������������������������������������������������������������������������������������������iii Upgrade and Warranty ��������������������������������������������������������������������������������������������iv Acquisition of Replaceable Parts ����������������������������������������������������������������������������iv Technical Support ���������������������������������������������������������������������������������������������������iv Green Product Features ������������������������������������������������������������������������������������������iv Environmental Policy ����������������������������������������������������������������������������������������������� v Chemical Substances Information �������������������������������������������������������������������������� v Battery Information �������������������������������������������������������������������������������������������������� v Safety Instructions ���������������������������������������������������������������������������������������������������vi CE Conformity �������������������������������������������������������������������������������������������������������...
  • Page 3: Copyright Notice

    Preface Copyright Notice The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL CO�,LTD� We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents� Our products are under continual improvement and we reserve the right to make changes without notice�...
  • Page 4: Upgrade And Warranty

    If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor� Alternatively, please try the following help resources for further guidance� Visit the MSI website for technical guide, BIOS updates, driver updates and other information via https://www�...
  • Page 5: Environmental Policy

    Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products�...
  • Page 6: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the equipment or user’s manual should be noted� Keep the User’s Guide that comes with the package for future reference� Keep this equipment away from humidity and high temperature� Lay this equipment on a reliable flat surface before setting it up.
  • Page 7 Preface Do not leave the equipment in an unconditioned environment with a storage temperature above 60 C (140 F) or below 0 C (32 F), which may damage the equipment� NOTE: The maximum operating temperature is around 40 C� Never pour any liquid into the opening that could damage or cause electrical shock�...
  • Page 8: Ce Conformity

    CE Conformity Hereby, Micro-Star International CO�, LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive� FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules�...
  • Page 9: Rohs Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 11: Overview

    Overview Congratulations for purchasing the Cubi Series� This system is your best PC choice� With the fantastic appearance, it can easily be set anywhere� The feature packed platform also gives you an exciting PC experience�...
  • Page 12: Packing Contents

    Packing Contents Cubi Series AC/DC Adapter AC Power Cord RJ45 to COM Cable User Manual & VESA Mount Kit (Optional) (Optional) Quick Guide * Please contact us immediately if any of the items is damaged or missing� * The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased�...
  • Page 13: System Overview

    Overview System Overview Front View USB 3�1 Gen1 Port (with Super Charger Technology) With Super Charger Technology, not only does it function as normal USB 3�1 Gen1 port, but it also enables users to charge USB devices even when the system is turned off. USB 3�1 Gen1 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices�...
  • Page 14 Rear View Cubi 3 Silent S Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating� Do not cover the ventilator� Power Jack The AC/DC adapter converts AC power to DC power for this jack� Power supplied through this jack supplies power to the PC�...
  • Page 15 Overview LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN)� You can connect a network cable to it� Green/ Orange Yellow LED Color LED State Condition Yellow LAN link is not established� On (steady state) LAN link is established�...
  • Page 16 Cubi 3 Silent Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating� Do not cover the ventilator� Power Jack The AC/DC adapter converts AC power to DC power for this jack� Power supplied through this jack supplies power to the PC�...
  • Page 17 Overview DisplayPort DisplayPort is a digital display interface standard� This connector is used to connect a monitor with DisplayPort inputs� USB 3�1 Gen1 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices� It supports up to 5Gbit/s (SuperSpeed) data transfer rate�...
  • Page 18 Left View Cubi 3 Silent S USB 2�0 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices� It supports up to 480Mbit/s (Hi-Speed) data transfer rate�...
  • Page 19: Getting Started

    Getting Started...
  • Page 20: Safety & Comfort Tips

    Safety & Comfort Tips The Personal Computer System is a portable platform that allows you to work anywhere� However, choosing a good workspace is important if you have to work with your PC for a long period of time� 1� Your work area should have enough illumination� 2�...
  • Page 21: Hardware Setup

    Getting Started Hardware Setup Connecting the AC Power 1. Unpack the package to find the AC/DC adapter and AC power cord. 2� Connect the adapter and the power cord� 3� Connect the Power Jack� 4� Plug the power cord to the electrical outlet� Cubi 3 Silent S Cubi 3 Silent Disconnecting the AC Power...
  • Page 22 Powering on the System Press the power button to power on the system�...
  • Page 23: System Operations

    System Operations This chapter provides you with essential information on system operations� Important All information is subject to change without prior notice�...
  • Page 24: Power Management

    Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity�...
  • Page 25 System Operations Waking the System Up The computer shall be able to wake up from power saving mode in response to a command from any of the following: ■ the power button, ■ the network (Wake On LAN), ■ the mouse, ■...
  • Page 26: Network Connection (Windows 10)

    Network Connection (Windows 10) Wired Network 1� Right-click [Start] and select [Control Panel] from the list� 2� Select [View network status and tasks] under [Network and Internet]� 3� Select [Set up a new connection or network]�...
  • Page 27 System Operations 4� Choose [Connect to the Internet] and click [Next]� 5� Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password� 6� Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection�...
  • Page 28 Wireless Network 1� Go to [Start] , click [Settings] and select [Network and Internet]� 2� A list of available WLAN connections pops up� Choose a connection from the list� 3� To establish a new connection, select [Network and Sharing Center]� 4�...
  • Page 29: System Recovery (Windows 10)

    System Operations System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ■ Restore the system back to the initial status of original manufacturer’s default settings� ■ When some errors have occurred to the operating system in use� ■...
  • Page 30 Reset this PC 1� Go to [Start] , click [Settings] and select [Update and security]� 2� Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery� 3. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything]�...
  • Page 31 System Operations Keep my files 1. Select [Keep my files]. 2� The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs� Click [Next] to continue� 3� The next screen will show the changes to be made during the process� Click [Reset] to start the system reset�...
  • Page 32 Remove everything 1� Select [Remove everything]� 2� If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]� 3. Then select between [Just remove my files] and [Remove files and clean the drive]. 3-10 4�...
