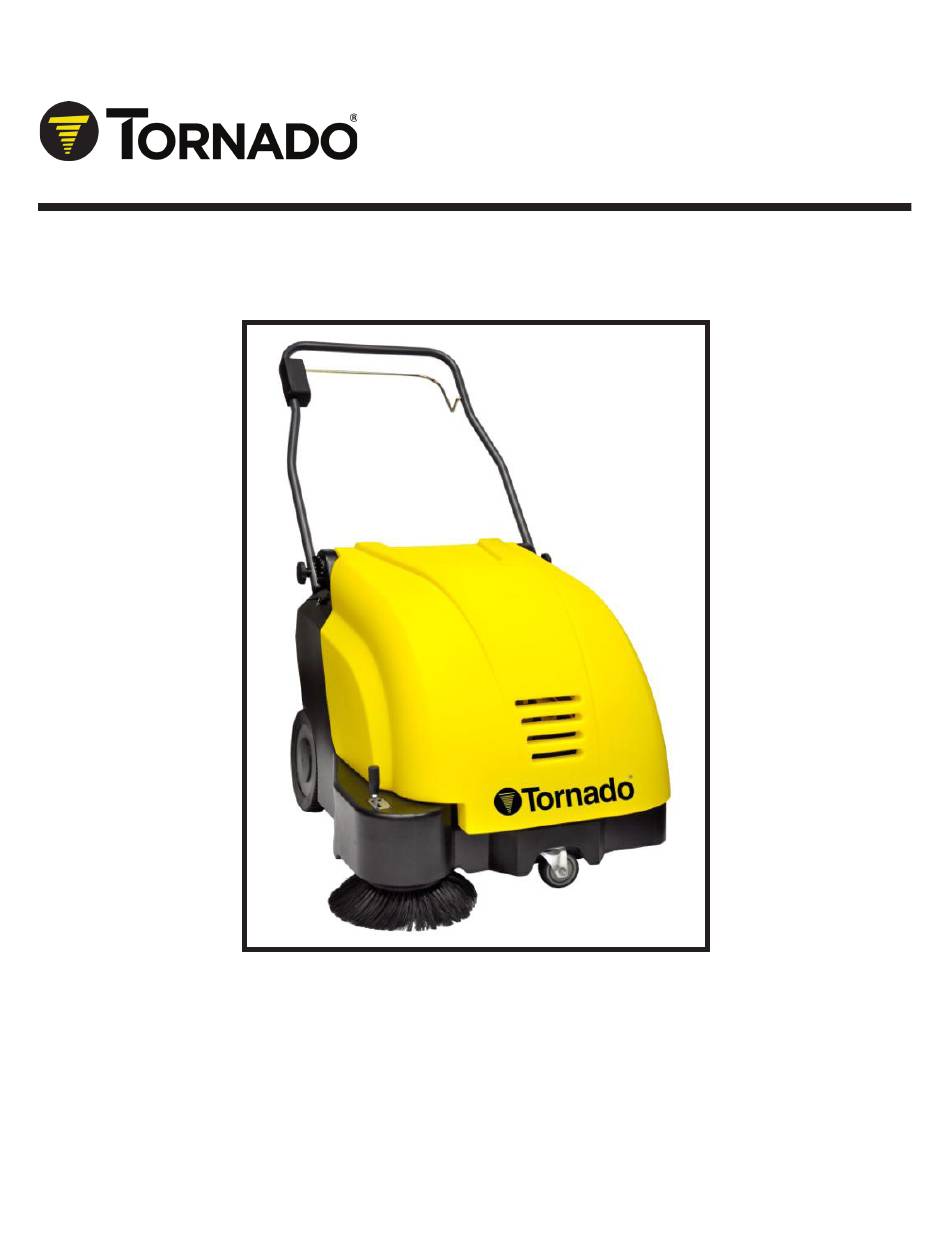

Tornado 96210 Operation & Maintenance Manual
Tornado 96210 Operation & Maintenance Manual

Tornado 96210 Operation & Maintenance Manual

Walk-behind battery sweeper

Advertisement

Quick Links

TORNADO INDUSTRIES, LLC
3101 WICHITA COURT
FORT WORTH, TX 76140
PHONE 800-VACUUMS
FAX 817-551-0719
WWW.TORNADOVAC.COM
Operations & Maintenance Manual
For Commercial Use Only
WALK-BEHIND BATTERY SWEEPER
MODEL NO: 96210
Form No. L6210 BA 05/20 ©Tornado Industries, LLC. All rights reserved
Save These Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the 96210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tornado 96210

  • Page 1 3101 WICHITA COURT FORT WORTH, TX 76140 PHONE 800-VACUUMS FAX 817-551-0719 WWW.TORNADOVAC.COM Operations & Maintenance Manual For Commercial Use Only WALK-BEHIND BATTERY SWEEPER MODEL NO: 96210 Form No. L6210 BA 05/20 ©Tornado Industries, LLC. All rights reserved Save These Instructions...
  • Page 2 NOTES For warranty information go to www.tornadovac.com...
  • Page 3: Grounding Instructions

    GROUNDING INSTRUCTIONS The battery charger for this appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. The battery charger for this machine is equipped with a cord having an equipment -grounding conductor and grounding plug.
  • Page 4 Technical Data Machine length cm/in 80/32 Machine height (handle folded) cm/in 60/24 Machine width cm/in 70/28 Working width cm/in 66/26 Rotary brush width cm/in 40/16 Rotary brush diameter cm/in 19/7 Area Coverage, theoretical m²/sqft/h 2400/26000 Debris Container Volume Liter/Gal 40/9 Filter Surface m²/sqft 1.1/12...
  • Page 5 Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.
  • Page 6 Please pay attention to the operating manual provided with the charging unit as well as the manual from the battery manufacturer. Tornado assumes no liability for damage to the battery caused by a fault when the battery is charged for the first time.
  • Page 7 • Batteries may only be handled and changed by properly skilled maintenance personnel. • The machine has been set up for operation using maintenance-free batteries. If other battery types are used, the machine must be set up for use with them by an authorized Tornado service center.
  • Page 8 2 Starting Up 2.1 Unpacking and assembling Fig 1 Open the box, two people are required. To remove the machine from the protective wrap and place it on the floor. 1. To fix the side brush (Fig 1/1) align the drive pins on the side brush drive plate and secure with the wing bolt and washer supplied.
  • Page 9 2.2 Instruction Instructions to operators are required before putting the machine into service. Only technicians from your local, authorized Tornado dealer are allowed to provide initial instruction on how to use the machine. 2.3 Initial battery charge Before starting the machine up for the first time, the batteries to be used must be fully charged, properly, by implementing the initial battery charge routine.
  • Page 10 3.1 Method of operation The Tornado SWB 26/8 is a machine designed to sweep and clean waste from hard floors and carpets. The side brush (Fig. 4/1) sweeps the dirt from corners to a position in front of the rotary brush (Fig.
  • Page 11 3.2 Operating and indicator elements 3.2.1 Operating panel 1. Control lamp for rotary brush drive, side brush drive and suction turbine 2. ON/OFF button for rotary brush drive, side brush drive and suction turbine 3. Control lamp for side brush drive 4.
  • Page 12 Maintenance and repair work necessary on a daily and weekly basis can be carried out by an operator trained to complete the work, all other Tornado system maintenance may only be completed by personnel who are correspondingly qualified and trained.
  • Page 13 Activity Interval Daily Weekly Check the battery charge; recharge if necessary Empty the debris container Clean the brush space Check the filter in the dust vacuum; clean, if necessary Check the rotary brush and side brush; clean, if necessary Check the sweeping pattern; readjust, if necessary Check the sealing strips on the rotary brush for signs of wear;...
  • Page 14 5. Disconnect the connection cable (Fig. 7/5) from the batteries and remove the batteries. 5.2.5 Inserting the batteries Only the special batteries approved by Tornado may be installed at the prescribed position. 1. Install the two lower batteries in the battery holder in accordance with Figure 7.
  • Page 15 5.3.2 Setting the sweeping pattern In the case of brush wear and after changing the side brush (Fig. 8/1), readjust the sweeping pattern. 1. Switch the machine off; unscrew the locking bolt (Fig. 8/7) and open the hood (Fig. 8/4). 2.
  • Page 16 5.4.3 Setting the sweeping pattern In the case of brush wear, and after changing the rotary brush (Fig. 10/1), readjust the sweeping pattern. 1. Switch the machine off, unscrew the locking bolt (Fig. 10/8) and open the hood (Fig. 10/7). 2.
  • Page 17 5.5 Debris container 1 Debris container 2 Locking mechanism 3 Seal 4 Handle 5.5.1 Emptying the debris container Check the fill level of the debris container (Fig. 11/1) at regular intervals (max. load capacity 25 kg) and empty as necessary. 1.
  • Page 18 5.6.2 Changing the filter Check the filter (Fig. 12/1) every 250 operating hours for signs of wear and change it as necessary. 1. Switch the machine off and remove the debris container. 2. Unscrew the wing bolts (Fig. 12/5). Pivot the filter support frame (Fig. 12/3) downard and remove it.
  • Page 19: Machine Serial Number

    Damage or defect arising from abuse, neglect or other misuse is excluded from this warranty. Other items may or may not apply based on your specific machine. If any defect occurs, and service is attempted by non-Authorized Tornado Service Centers, the warranty will be void.
