One Lux OMNI-LED OL12/2/M3 Manual

EMERGENCY | ONE-LED
OMNI-LED | LED EMERGENCY CONVERSION MODULE
TM
Product description
Omni-LED is a range of Maintained emergency lighting
TM
conversion modules housed in a compact low-profile
enclosure and suitable for use in either internal or remote self-
contained applications.
Their constant-power driver technology with a SELV isolated
output range of 3V – 200VDC will run almost any LED lamp or
array (including some GU10 and Linear tubes), so making it easy
to produce an emergency version of your existing LED luminaire
without the need for separate 'emergency' LEDs or connectors.
They are available in 2, 3 and 4 cell versions and compatible with
both NiCd or NiMH batteries for 1 or 3 hour autonomy.
Features
> Emergency output power (Typical) : 1.5W (2-cell), 3W (3-cell),
4W (55V 4-cell ), 3.5W (90V 4-cell ) and 3W (200V 4-cell)
> 3-pole switching provides full isolation of lamp connections
and mains driver's power supply during emergency operation
(Compatible with most driver types up to 2A lamp current)
> Universal module with user-selectable 1 or 3 hour autonomy
> Constant-current charger with short-circuit protection and
polarised battery socket
> Zero battery current in standby allows pre-connection for storage
> Input for optional manual low-voltage emergency test switch
> Additional side fixing points allows mounting in restricted spaces
> Operates High-brightness green charge LEDs. (250mm supplied.
Other lengths available, please see accessories section for options)
> Designed and manufactured in Great Britain
> Complies with: EN61347-1, EN61347-2-7, EN61347-2-13, EN55015,
EN61000-3-2, EN61547
> Suitable for luminaires conforming to EN60598-2-22
Product specifications may be subject to change without prior notice.
V2-Iss 6June 2019
TM

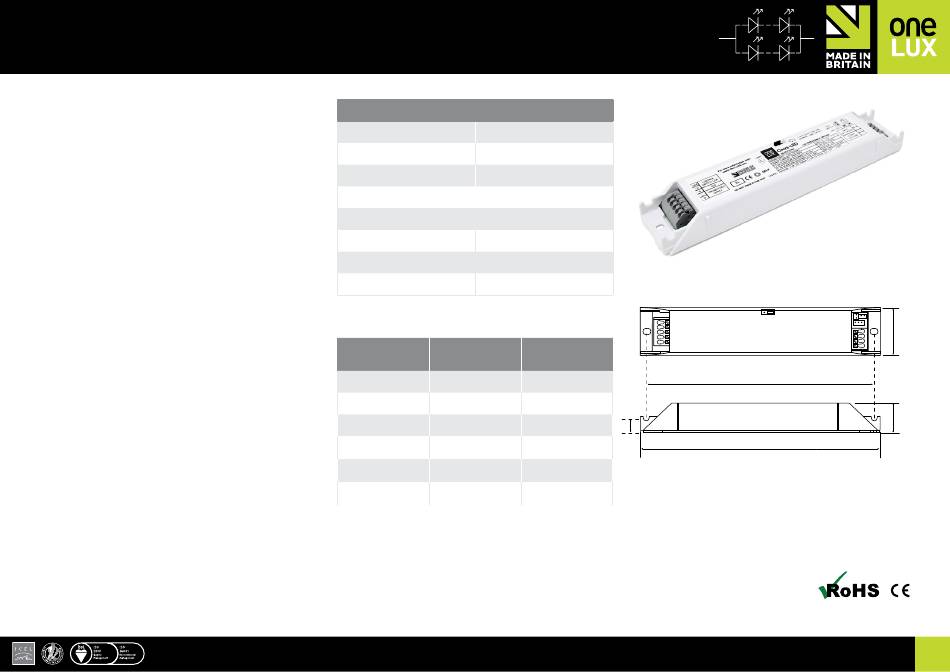

Common Technical Data
Input Supply Voltage
Supply Frequency
Output Voltage of the Range
Maximum TC Point
Ambient Temperature Range
Battery Charge Time
IP Rating
Weight
Model Number
OL12/2/M3
OL55/2/M3
OL55/3/M3
OL55/4/M3
OL90/4/M3
OL200/4/M3
Accessories
A range of batteries and accessories are available, please refer to
accessories section.
230V +/- 10%
50/60 Hz
3 - 200 Vdc
2 & 3 Cell - 80°C/ 4 cell - 75°C
0°C - 50°C
24 Hours
IP20
90g
Standard Pack
Weight
Quantities
50 5.0kg
50 5.0kg
13mm
50 5.0kg
50 5.0kg
50 5.0kg
50 5.0kg
37mm (w)
169mm (Fixing centres)
21.5mm (h)
184mm (l)
www.one-lux.com 1
