One Lux OS/5.8/C User Manual

Technical Specifications

Input Supply Voltage
Standby/ Operating Power
Maximum switching current
Detection Area (Typical)
Operating Temperature
Detector Operating Frequency
Casambi Operating Frequency
Sensitivity Settings
On-time Settings
Light Sensor range
IP Rating
Weight

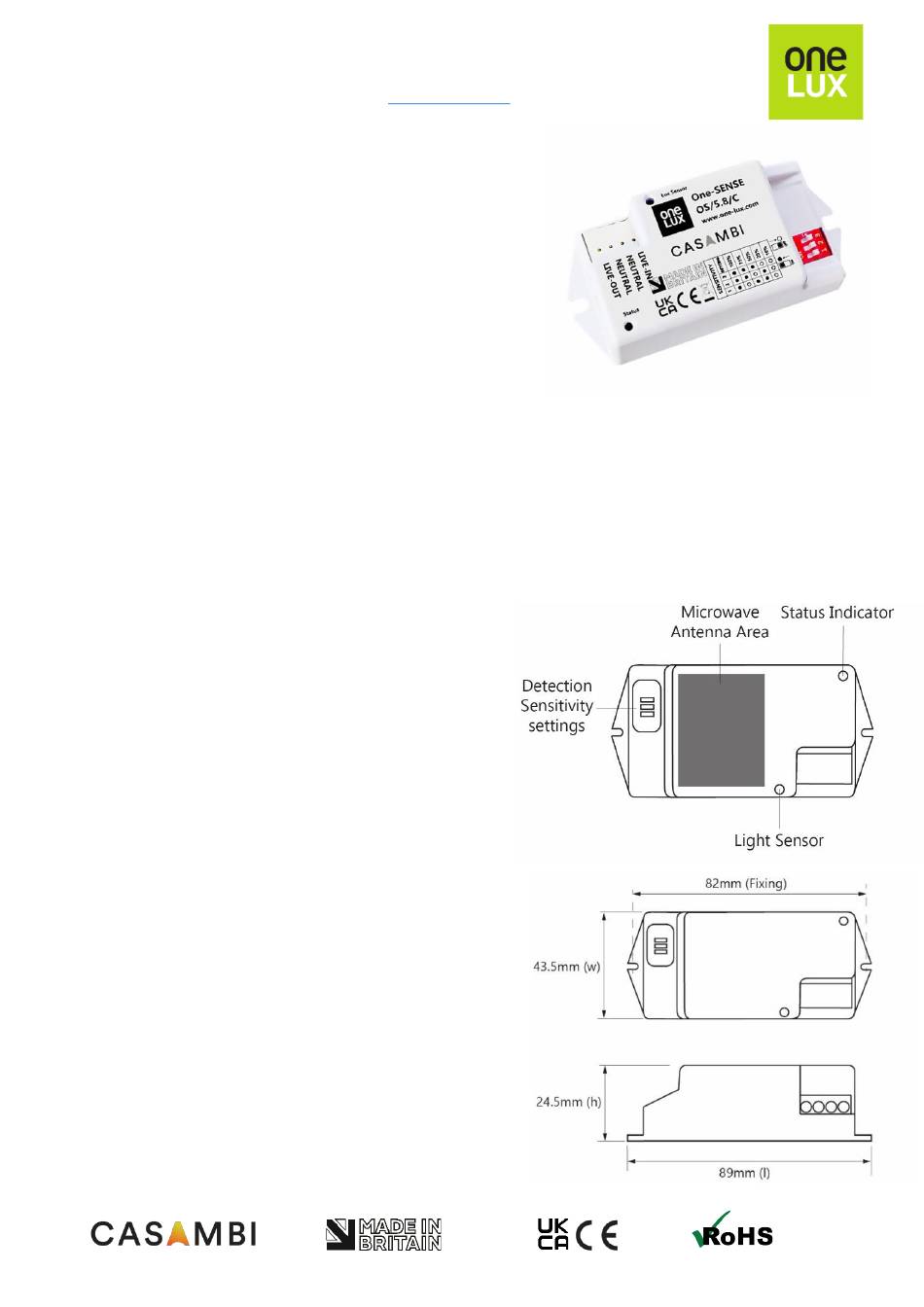

Product description

OS/5.8/C is a UK designed and built microwave presence detector with built-in Casambi wireless node capable of remote intelligent ON/OFF
switching control via the Casambi ecosystem.
Their Radar Doppler technology operates at 5.8Ghz and achieves a detection range of 6m in typical office environments.
Presence detection status and light sensor output can be configured from within the Casambi App to control other Casambi-enabled equipment
without need for complex wiring.
The compact, low-profile enclosure is ideal for fixing within a luminaire, so provides simple, reliable cost-effective means of instantly reducing
lighting energy bills.
Rated Load
Detection Area
On time
Daylight Sensor

Properties

Sensor Principle
Detects movement and presence through glass and plastic diffusers.
Microwave Frequency
Light sensor configurable within the Casambi App.
Transmitting Power
Parasitic Load
User-configurable DIP Switch settings for Sensitivity.
Operating Temperature
Casambi controlled built-in relay for local switched live out.
IP Rating
Ultra-low microwave power, around 1/10th of that emitted by mobile phones.
For mounting heights of 2m to 6m in internal applications*.
Compatible for multi-sensor operation of a single luminaire.
Push-wire terminals for solid conductors up to 1.5mm
Common neutral provided for easy input/output wiring.
Complies with ETSI EN300 440, EN60669-1 & EN60669 Part 2_1.
* Microwave sensors may not be suitable for certain outdoor applications
Document Number: 19932/B
OS/5.8/C User Guide
www.one-lux.com
230Vac +/- 10% 50Hz
1.2W/ 1.7W
0.5A
4 - 6m Radius at 2.5m Ceiling Height)
0° to 50°C
5.8GHz
2.4GHz
100, 75, 50, 25, 10%
Casambi App Configured
0-1000lux - Casambi App Configured
IP20
50g
400W (inductive load), 800W (resistive load)
4-6m radius at 2.5m ceiling height (typical)
5sec, 30sec, 180sec, 300sec, 15min, 25min
2lux, 5lux, 20lux, 30lux, Disable
Microwave motion detector
5.8GHz Continuous Wave
<0.5mW (1% of transmitting power of cell phone)
<1.7W (daylight/motion sensing only)
0-50C
IP20
2.
