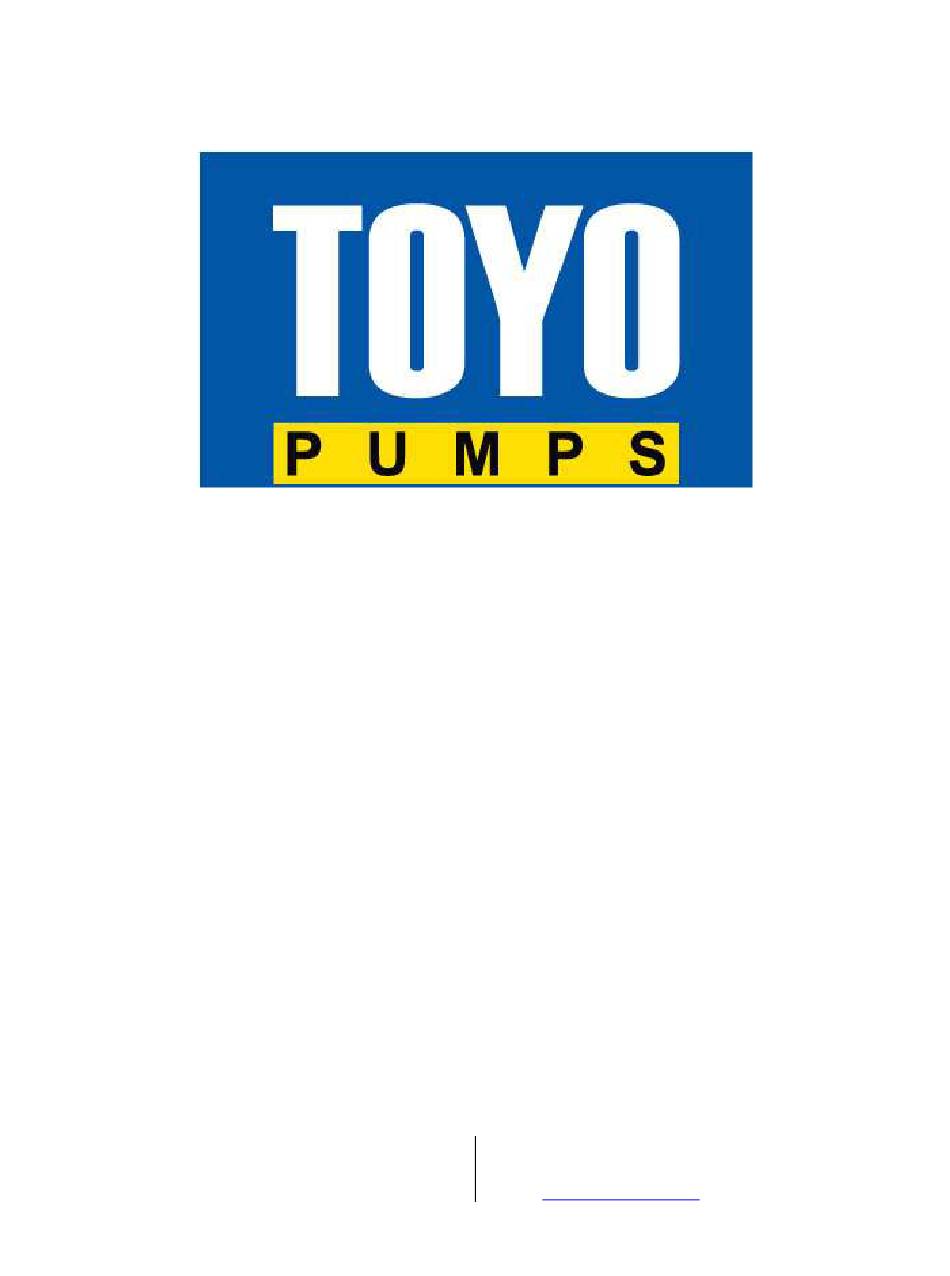

- Page 1 TYPE DL-1-110 HEAVY DUTY SUBMERSIBLE PUMPS INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS TOYO PUMPS NORTH AMERICA CORPORATION 2853 Douglas Road Telephone: (604) 298-1213 Burnaby, British Columbia Fax: (604) 298-7773 CANADA V5C 6H2 Email: info@toyopumps.com Published January 2011...
- Page 2 TOYO PUMPS NORTH AMERICA CORPORATION INTRODUCTION Thank you for selecting the Toyo submersible pump. In order to ensure that you receive the maximum benefit of this equipment, it is required that this INSTRUCTION & SERVICE MANUAL be thoroughly read prior to use, and that all instruction be carefully followed.
-
Page 3: Prior To Operation
TOYO PUMPS NORTH AMERICA CORPORATION TOYO SUBMERSIBLE PUMP MODEL DL-1-110 OPERATING & MAINTENANCE INSTRUCTIONS PRIOR TO OPERATION 1) UNPACKING AND INSPECTION a) Always lift the pump by the handle-not the cabtyre cable. If the pump must be suspended in a well or pit, a rope or chain should be attached to the pump handle. -
Page 4: After Operation
If you are not sure, it is recommended to consult with the Toyo representative office or Toyo suppliers nearest you. When extending the cable, be careful not to submerge the splice into the water to avoid the possibility of electrical shock. - Page 5 TOYO PUMPS NORTH AMERICA CORPORATION Required lubricant volume is as follows and recommended lubricant is Turbine Oil ISO VG # 32. For your convenience, other lubricants equivalent to ISO VG # 32 are listed as follows. If it is difficult to get these turbine oils, engine-oil (10W-30/40) can be used alternatively.
-
Page 6: Troubleshooting
TOYO PUMPS NORTH AMERICA CORPORATION TROUBLE SHOOTING FAULT POSSIBLE CAUSES CORRECTION 1. No electric power. Turn power on. 2. Cable cut/broken. Change cable. Pump will not start. 3. Poor electric connection. Clean connection. 4. Low voltage. Check power source. 5. Impeller obstructed. - Page 11 TOYO PUMPS NORTH AMERICA CORPORATION 2853 Douglas Road Burnaby, BC V5C 6H2 Tel: (604) 298-1213 Fax: (604) 298-1224 Kit ITEMS ARE INCLUDED IN GASKET KIT SR ITEMS ARE INCLUDED IN SEAL REPAIR KIT PARTS LIST - DL1-110 Ref. Dwg. No. A6763 Rev.1 TPSD-001 Rev.0...
- Page 12 TOYO PUMPS NORTH AMERICA CORPORATION 2853 Douglas Road Burnaby, BC V5C 6H2 Tel: (604) 298-1213 Fax: (604) 298-1224 Kit ITEMS ARE INCLUDED IN GASKET KIT SR ITEMS ARE INCLUDED IN SEAL REPAIR KIT PARTS LIST - DL1-110 Ref. Dwg. No. A6763 Rev.1 TPSD-001 Rev.0...
