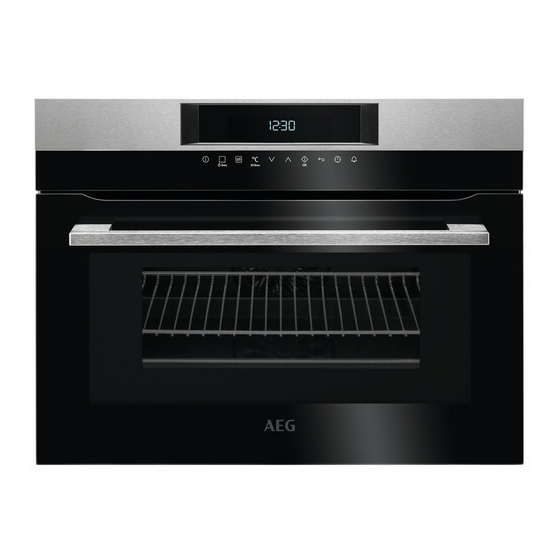

AEG KMK761000M User Manual

Microwave combi-oven
Hide thumbs Also See for KMK761000M:
Table of Contents

Advertisement

Quick Links

Download this manual
KMK761000M
USER
MANUAL
EN
User Manual
Microwave combi-oven

Advertisement

Table of Contents
loading

Related Manuals for AEG KMK761000M

Summary of Contents for AEG KMK761000M

  • Page 1 KMK761000M User Manual Microwave combi-oven USER MANUAL...

  • Page 2: Table Of Contents

    14. TROUBLESHOOTING..................... 42 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 ENGLISH manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 •...
  • Page 4 Ensure that the appliance is switched off before • replacing the lamp to avoid the possibility of electric shock. Do not use a steam cleaner to clean the appliance. • Do not use harsh abrasive cleaners or sharp metal •...

  • Page 5: Safety Instructions

    ENGLISH Microwave heating of beverages can result in delayed • eruptive boiling. Care must be taken when handling the container. The contents of feeding bottles and baby food jars • shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should •...
  • Page 6 Make sure that there is • Do not use microwave function to access to the mains plug after the preheat the oven. installation. WARNING! • If the mains socket is loose, do not Risk of damage to the connect the mains plug.

  • Page 7: Product Description

    ENGLISH Contact the Authorised Service for household appliances. Do not use Centre. it for house lighting. • Make sure the cavity and the door are WARNING! wiped dry after each use. Steam Risk of electrical shock. produced during the operation of the appliance condensates on cavity walls •...

  • Page 8: Control Panel

    3.2 Accessories For cakes and biscuits. Grill- / Roasting pan Wire shelf To bake and roast or as a pan to collect For cookware, cake tins, roasts. fat. Baking tray 4. CONTROL PANEL 4.1 Electronic programmer Use the sensor fields to operate the appliance.
  • Page 9 ENGLISH Sensor Function Comment field Heating Functions Touch the sensor field once to choose a heating or Assisted Cook- function or the menu: Assisted Cooking. Touch the sensor field again to switch between the me- nus: Heating Functions, Assisted Cooking. To acti- vate or deactivate the light, touch the field for 3 seconds.

  • Page 10: Before First Use

    Other indicators of the display: Symbol Function Minute Minder The function operates. Time of day The display shows the current time. Duration The display shows the necessary time for cooking. End Time The display shows when the cooking time is complete.

  • Page 11: Daily Use

    ENGLISH 6. DAILY USE 3. Press to move to the submenu or WARNING! accept the setting. Refer to Safety chapters. At each point you can go 6.1 Navigating the menus back to the main menu with 1. Activate the appliance. 2.
  • Page 12 Sym- Submenu Description Set Language Sets the language for the display. Buzzer Volume Adjusts the volume of press-tones and signals by degrees. Key Tones Activates and deactivates the tone of the touch fields. It is not possible to deactivate the tone of the ON / OFF touch field.
  • Page 13 ENGLISH The lamp may automatically deactivate at a temperature below 60 °C during some oven functions. 6.4 Specials Heating function Application Keep Warm To keep food warm. Plate Warming To preheat plates for serving. Preserving To make vegetable preserves such as pickles. Drying To dry sliced fruit (e.g.

  • Page 14: Microwave Mode

    6.8 Residual heat depending on the duration of the cooking. The residual heat inside the When you deactivate the appliance, the oven will continue to cook. display shows the residual heat. You can Use the residual heat to warm up other use the heat to keep the food warm.
  • Page 15 ENGLISH • If possible, cut vegetables into similar- even result. Remove all metal or sized pieces. aluminium packaging or parts before • Use flat, wide dishes. defrosting. • Do not use cookware made of Defrosting fruit, vegetables: porcelain, ceramic or earthenware •...
  • Page 16 Cookware / Material Microwave Grilling Defrost- Heating Cooking Roasting dishes made of metal, e.g. enamel, cast iron Baking tins, black lacquer or silicon- coated Baking tray Wire shelf Browning cookware, e.g. crisp pan or crunch plate Ready meals in packaging 1) With no silver, gold, platinum or metal plating / decorations.
  • Page 17 ENGLISH appliance or outside it, so that the the food or generate arcing when you heat is distributed more evenly. use the accessories. • Adjust the power level according to • You get better results for rice if you food quantity. Using high power level use flat, wide dishes.
  • Page 18 2. Touch and do the same steps as Each touch of adds 30 seconds to the when you set the Microwave Duration time. function. You can change the For some functions the microwave power (refer to microwave will start as soon "Setting the Microwave...

  • Page 19: Clock Functions

    ENGLISH 8. CLOCK FUNCTIONS 8.1 Clock functions table Clock function Application Minute Minder To set a countdown (max. 2 h 30 min). This function has no effect on the operation of the appliance. You can also activate it when the appliance is deactivated.

  • Page 20: Automatic Programmes

    8.4 Time Extension 1. When the cooking time ends, an acoustic signal sounds. Press any The function: Time Extension makes the symbol. heating function continue after the end The display shows the message. of Duration. 2. Press to activate or to cancel.

  • Page 21: Additional Functions

    ENGLISH Wire shelf and the deep pan together: WARNING! Push the deep pan between the guide Refer to "Microwave mode" bars of the shelf support and the wire chapter. shelf on the guide bars above and make Wire shelf: sure that the feet point down. Push the shelf between the guide bars of the shelf support and make sure that the feet point down.
  • Page 22 11.4 Set + Go You can overwrite a memory position. When the display shows the first free The function lets you set a heating memory position, touch function (or a programme) and use it press to overwrite an existing later with one press of any symbol.

  • Page 23: Hints And Tips

    ENGLISH display is lower between 10 PM and 6 the display goes back to the night brightness. • Day brightness: 11.7 Cooling fan – when the appliance is activated. – if you touch a symbol during the When the appliance operates, the night brightness (apart from ON / cooling fan activates automatically to OFF), the display goes back to...
  • Page 24 12.3 Tips on baking Baking results Possible cause Remedy The bottom of the cake is The shelf position is incor- Put the cake on a lower not browned sufficiently. rect. shelf. The cake sinks and becomes The oven temperature is too The next time you bake, set soggy, lumpy or streaky.
  • Page 25 ENGLISH Food Function Tempera- Time (min) Shelf posi- ture (°C) tion Flan base - short pas- True Fan Cook- 170 - 180 10 - 25 Flan base - sponge mix- True Fan Cook- 150 - 170 20 - 25 ture Apple pie / Apple pie (2 True Fan Cook- 70 - 90...
  • Page 26 Food Function Tempera- Time (min) Shelf posi- ture (°C) tion Fruit flans (made with Conventional 35 - 55 yeast dough / sponge Cooking mixture) Fruit flans made with True Fan Cook- 160 - 170 40 - 80 short pastry...
  • Page 27 ENGLISH 12.5 Bakes and gratins Food Function Temperature Time (min) Shelf position (°C) Pasta bake Conventional 180 - 200 45 - 60 Cooking Lasagne Conventional 180 - 200 25 - 40 Cooking Vegetables au Turbo Grilling 210 - 230 10 - 20 gratin Baguettes top- True Fan Cook-...
  • Page 28 Food Temperature (°C) Time (min) Shelf posi- tion Pastries made with egg 80 - 100 130 - 170 1 / 3 white, meringues Macaroons 100 - 120 40 - 80 1 / 3 Biscuits made with 160 - 170...
  • Page 29 ENGLISH Food Temperature (°C) Time (min) Shelf position Swiss Flan 170 - 190 45 - 55 Cheesecake 140 - 160 60 - 90 Apple cake, covered 150 - 170 50 - 60 Vegetable pie 160 - 180 50 - 60 10 - 20 Unleavened bread 160 - 180...
  • Page 30 Food Func- Quantity Power Tempera- Time (min) Shelf po- tion (kg) (Watts) ture (°C) sition Meat loaf Turbo 0.75 - 1 160 - 170 35 - 50 Grilling Pork Turbo 0.75 - 1 150 - 170 60 - 75...
  • Page 31 ENGLISH Fish (steamed) Food Func- Quantity Power Tempera- Time (min) Shelf po- tion (kg) (Watts) ture (°C) sition Whole fish Con- 1 - 1.5 210 - 220 30 - 45 vention- Cook- Dishes Food Func- Quantity Power Tempera- Time (min) Shelf po- tion (kg)
  • Page 32 Food Temperature Time (min) Shelf position (°C) 1st side 2nd side Back of veal 210 - 230 30 - 40 30 - 40 Back of lamb 210 - 230 25 - 35 20 - 35 Whole Fish, 500 210 - 230...
  • Page 33 ENGLISH Food Temperature (°C) Time (min) Shelf position Lasagne / Cannelloni, 160 - 180 40 - 60 frozen Chicken Wings 190 - 210 20 - 30 1) Turn 2 or 3 times during roasting. Frozen Ready Meals Table Food Function Tempera- Time (min) Shelf position...
  • Page 34 Food Quantity Defrosting Further de- Comments time (min) frosting time (min) Strawber- 300 g 30 - 40 10 - 20 ries Butter 250 g 30 - 40 10 - 15 Cream 2 x 200 g 80 - 100 10 - 15 Whip the cream when still slightly frozen in places.
  • Page 35 ENGLISH Food Temperature (°C) Cooking time until Continue to cook at simmering (min) 100 °C (min) Kohlrabi / Peas / As- 160 - 170 50 - 60 15 - 20 paragus 1) Leave standing in the oven after it is deactivated. 12.15 Drying Food Temperature (°C)
  • Page 36 Defrosting meat Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Whole cuts 10 - 12 10 - 15 Turn halfway of meat through. Steak 3 - 5 5 - 10 Turn halfway through, re- move defros- ted parts.
  • Page 37 ENGLISH Defrosting fish Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Whole Fish 10 - 15 15 - 20 Turn halfway through. Fish fillets 10 - 12 15 - 20 Turn halfway through. Defrosting sausage Food Power Quantity Time (min) Standing...
  • Page 38 Food Power Quantity Time (min) Standing Comments (Watts) time (min) Cake (ga- 1 piece 1 - 2 15 - 20 Turn plate teau) halfway through. Dry cake (e. 1 piece 2 - 4 15 - 20 Turn plate g. Pound...
  • Page 39 ENGLISH Defrosting heating Food Power Quantity Time (min) Standing Comments (Watts) time (min) Baby food in 0.2 kg 2 - 3 Stir halfway jars through, check tem- perature. Baby milk 1000 0.2 kg 0:20 - 0:40 Put spoon in- (bottle, 180 to bottle, stir and check temperature.
  • Page 40 Food Power Quantity Time (min) Standing Comments (Watts) time (min) Fish fillets 0.5 kg 6 - 8 Cook cov- ered, turn container several times during cook- ing. Vegetables, 0.5 kg 12 - 16 Add approx. short cooking 50 ml water,...

  • Page 41: Care And Cleaning

    ENGLISH Combi-function table • Use the functions: Grilling and • For selected models only. Microwave. Food Ovenware Pow- Tem- Time Shelf Comments pera- (min) posi- (Watt ture tion (°C) 2 chicken Round glass dish, Ø 26 Turn after 20 halves (2 x min, standing 0.55 kg) time 5 min.

  • Page 42: Troubleshooting

    1. Deactivate the appliance. WARNING! 2. Remove the fuses from the fuse box Danger of electrocution! or deactivate the circuit breaker. Disconnect the fuse before The top lamp you replace the lamp. The lamp and the lamp glass 1. Turn the lamp glass cover cover can be hot.
  • Page 43 ENGLISH Problem Possible cause Remedy The display shows an error There is an electrical fault. • Deactivate the oven with code that is not in this table. the house fuse or the safety switch in the fuse box and activate it again. •...
  • Page 44 www.aeg.com/shop...
