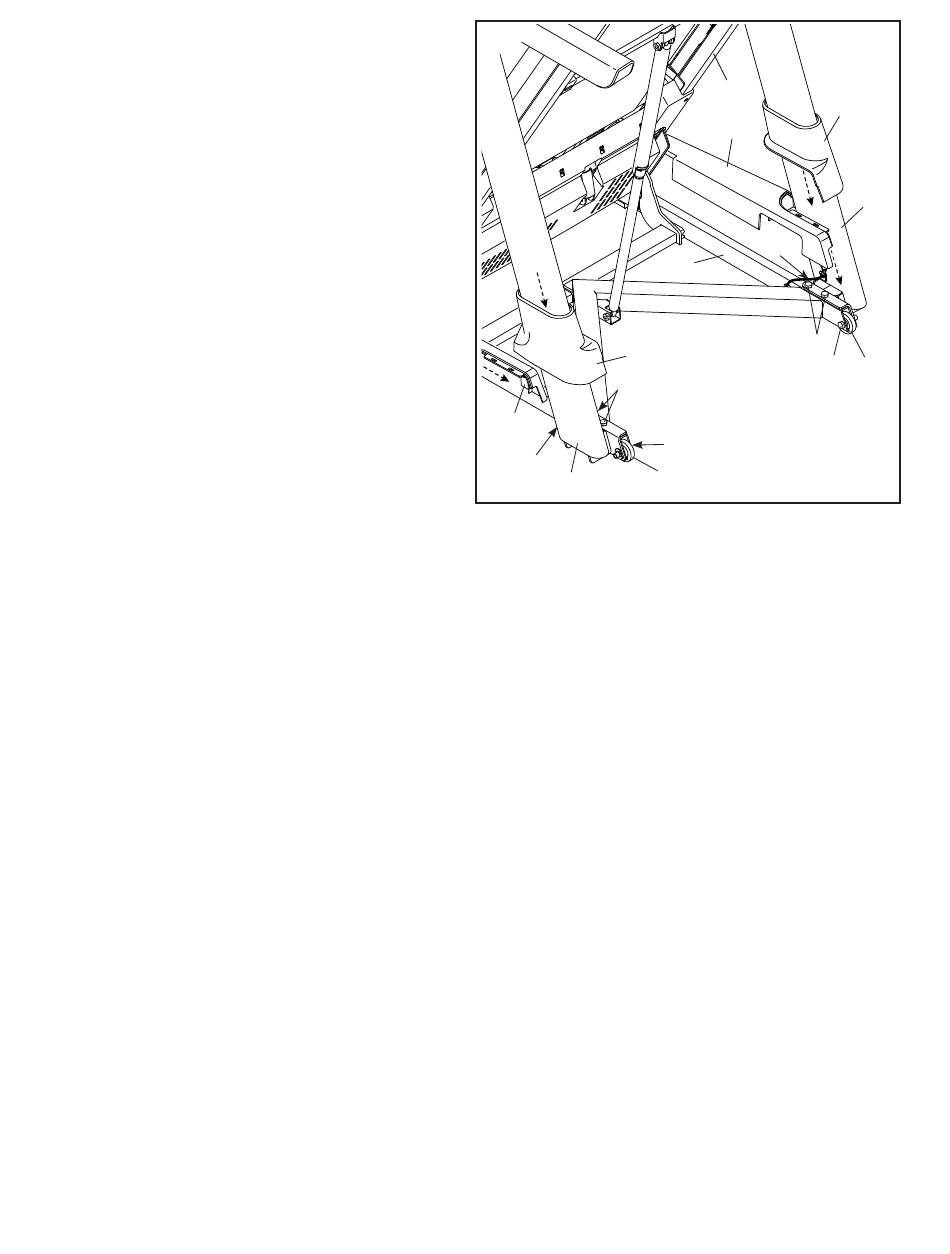

16. Firmly tighten the four 3/8" x 2 3/8" Screws
(3) and the two 3/8" x 1 1/4" Screws (1).
Next, tighten the two 3/8" x 1 3/4" Screws (4);
make sure that the Wheels (93) turn freely.
Then, set the Right Inner Base Cover (100) onto
the lower end of the Right Upright (92) and Base
(96). Slide the Right Base Cover (98) downward
and press it onto the Right Inner Base Cover.
Next, set the Left Inner Base Cover (99) onto the
lower end of the Left Upright (91). Slide the Left
Base Cover (97) downward and press it onto the
Left Inner Base Cover.
Then, lower the Frame (64) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 29).
To register your product and activate your
warranty today, go to my.proform.com.
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 31 and 32). Note: Extra parts may be
included.
16
97
3
99
1
91
16
64
98
100
1
96
3
4
4
93
92
93
