- Page 1 ER-1193 ORDERCODE D145079 ORDERCODE D145082...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio ER-1193 brings excitement to any venue. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry. New products are being launched regularly.
-
Page 3: Table Of Contents
DAP Audio DAP Audio ER-1193 Product Guide ™ Warning..…................………………………………………………………... Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................. Return Procedure..............................Claims..................................Description..…................……….…………………………….………………..Features………………………………………………………………………………….……………………………….…... Overview ..…………………………………………………………………………………….………....……..Installation................…...……………………………………………..……..…… Set Up and Operation..............……..……………………….……………….….…..Set Up ………………..........…………………………………........………..Menu Options…................……….…………………………………….………..Approval...........…………………………………..….…………………………………..Declaration of Conformity......…………………………………..….…………………………………..Connection Cables......…........………..………….…….……………………….…... Maintenance………......…........………..………….…….……………………...…..Troubleshooting………......…........………..………….…….…………………….….…..Product Specifications..............……………….…….……………………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. -
Page 5: Operating Determinations
Avoid flames and do not put close to flammable liquids or gases. Always disconnect power from the mains, when device is not used or before cleaning! Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. ... -
Page 6: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 7: Description

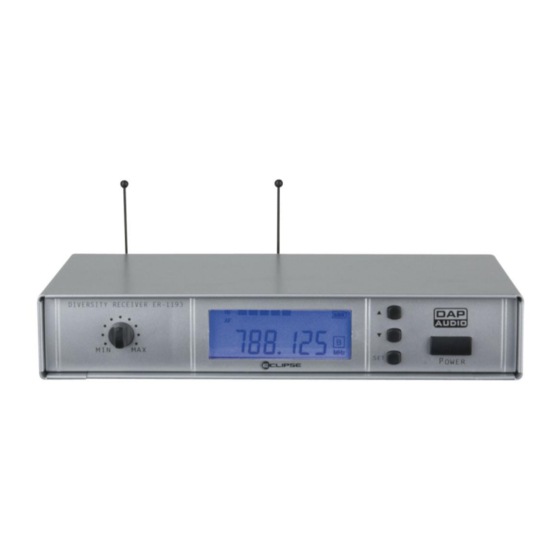

Description of the device Features The ER1193 is a single Channel 193 Freq. PLL Receiver • 193 selectable UHF Frequencies. • Available for 1 transmitter • True diversity technology permits minimum dropouts in the RF link • PLL synthesised technology for multi-channels. •... -
Page 8: Installation
Installation Remove all packing materials from the ER-1193. Check that all foam and plastic padding is removed. Put the 2 antennas into socket A and B at the backside in a vertical angle. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 9 after a second the display shows: You can now change the frequency with the up(3) or down(5) buttons (steps of 0.250 MHz to change the frequency). To confirm you have to press the set(4) button. Now the display will briefly look as shown below.
- Page 10 By pressing either the up(3) or down(5) button the system will start a forward or a downward search until the system finds a wireless transmitter with sufficient signal strength. If a signal of sufficient strength is found, the display will show STORE as shown below. Press the set(4) button to store the frequency.
-
Page 11: Approval
Approval D145079: 790-814 MHz for use in: Belgium, Czech Republic, Denmark, France, Germany, Greece, Hungary, Italy, Luxemburg, Norway, Poland, Portugal, Romania, Slovakia, Sweden, Switzerland, Turkey, United Kingdom. D145082: 822–846 MHz for use in: Denmark, Germany, Hungary, Italy, Luxemburg, Netherlands, Poland, Romania, Sweden, Switzerland, United Kingdom. Exclusion of liability The frequency tables in this publication are made according to national laws and regulations. - Page 12 Declaration OF CONFORMITY This certifies that the following designated product: Name: ER-1193 1Ch 193 Freq 790-814 MHz PPL Receiver Model No.: D145079 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 300 422-2 V1.2.2(2008-03) EN 301 489-1 V1.8.1(2008-04) EN 301 489-9 V1.4.1(2007-11)
- Page 13 Declaration OF CONFORMITY This certifies that the following designated product: Name: ER-1193 1Ch 193 Freq 822-846 MHz PPL Receiver Model No.: D145082 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 300 422-2 V1.2.2(2008-03) EN 301 489-1 V1.8.1(2008-04) EN 301 489-9 V1.4.1(2007-11)
-
Page 14: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 15: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio ER-1193 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 16: Product Specifications
Product Specification Model: DAP Audio ER-1193 Operation Voltage: 12-18 VDC, 500 mA Power supply: 12-18V DC 1000mA Dimensions: 211 x 152 x 40mm (LxWxH) Weight: 1,08 Kg Frequency Preparation: PLL Synthesised Control Carrier Frequency range: 740 MHz - 846 MHz Frequency Stability: ±0.005% S/N Ratio: >100 dB Display: LCD... - Page 17 2010 Dap Audio.
