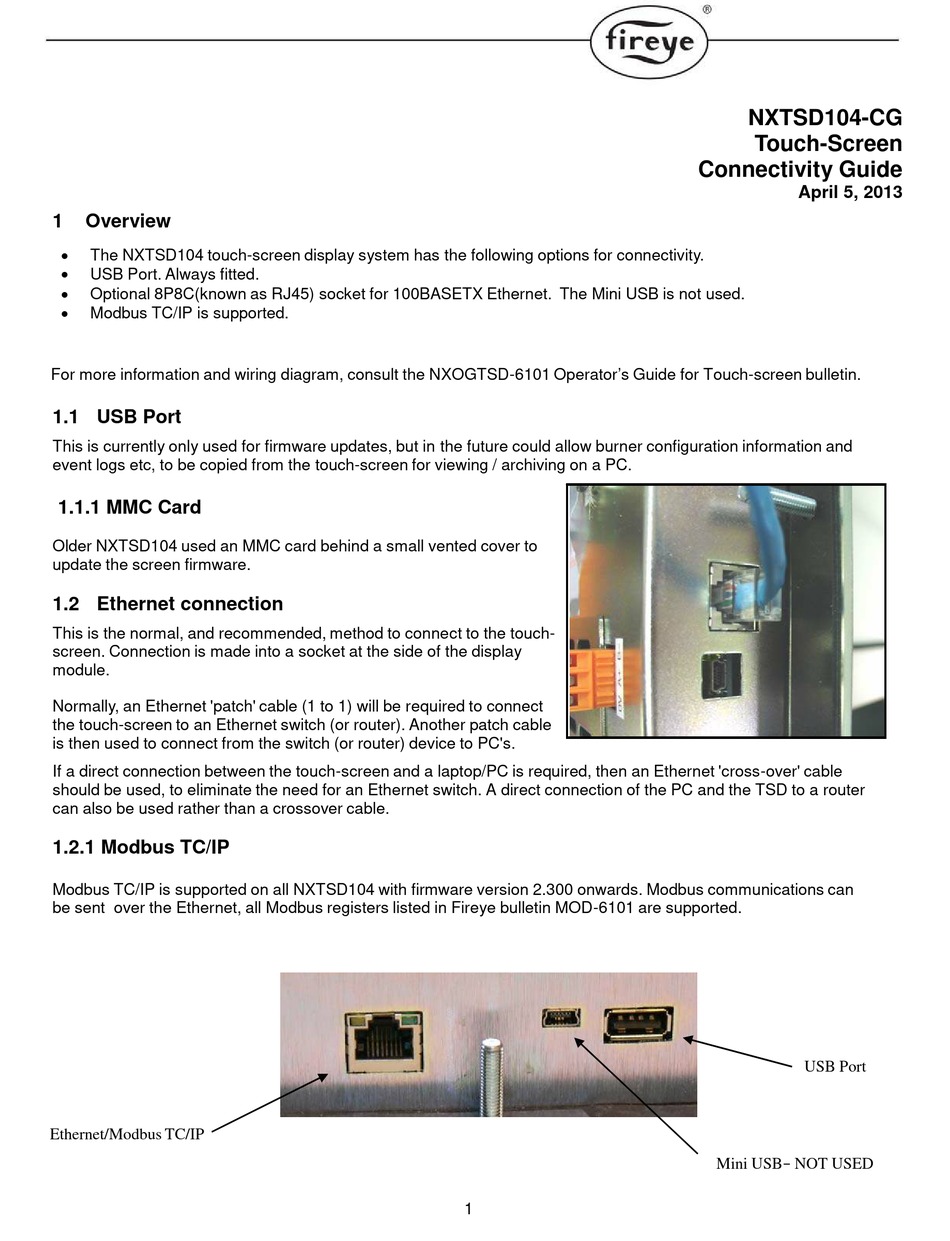

1
Overview
The NXTSD104 touch-screen display system has the following options for connectivity.
USB Port. Always fitted.
Optional 8P8C(known as RJ45) socket for 100BASETX Ethernet. The Mini USB is not used.
Modbus TC/IP is supported.
For more information and wiring diagram, consult the NXOGTSD-6101 Operator's Guide for Touch-screen bulletin.
1.1 USB Port
This is currently only used for firmware updates, but in the future could allow burner configuration information and
event logs etc, to be copied from the touch-screen for viewing / archiving on a PC.
1.1.1 MMC Card
Older NXTSD104 used an MMC card behind a small vented cover to
update the screen firmware.
1.2 Ethernet connection
This is the normal, and recommended, method to connect to the touch-
screen. Connection is made into a socket at the side of the display
module.
Normally, an Ethernet 'patch' cable (1 to 1) will be required to connect
the touch-screen to an Ethernet switch (or router). Another patch cable
is then used to connect from the switch (or router) device to PC's.
If a direct connection between the touch-screen and a laptop/PC is required, then an Ethernet 'cross-over' cable
should be used, to eliminate the need for an Ethernet switch. A direct connection of the PC and the TSD to a router
can also be used rather than a crossover cable.
1.2.1 Modbus TC/IP
Modbus TC/IP is supported on all NXTSD104 with firmware version 2.300 onwards. Modbus communications can
be sent over the Ethernet, all Modbus registers listed in Fireye bulletin MOD-6101 are supported.
Ethernet/Modbus TC/IP
1
NXTSD104-CG
Touch-Screen
Connectivity Guide
April 5, 2013
USB Port
Mini USB– NOT USED
Advertisement
Related Manuals for Fireye NXTSD104-CG
Summary of Contents for Fireye NXTSD104-CG
- Page 1 1.2.1 Modbus TC/IP Modbus TC/IP is supported on all NXTSD104 with firmware version 2.300 onwards. Modbus communications can be sent over the Ethernet, all Modbus registers listed in Fireye bulletin MOD-6101 are supported. USB Port Ethernet/Modbus TC/IP...
- Page 2 Connect the YB110 using the three terminal connector labeled A+, B-, 0 volt. The A+ & B– connections are connected to the Fireye ED610 terminal block (purchased separately) on terminals 10 & 9 (A & B), the 0 volt connection is not used.
-
Page 3: Relay Connections
LV3), then , Menu, Screen Configuration, Display. Press the Modbus Configuration button. The default is Integrated NX6100. Next set the Modbus Node id to match the YB110, for example,1. See Fireye bulletin BL- 1001 for details as to configuring the Modbus in the BurnerLogix. At this point you will set the current Modbus configuration to PPC/BurnerLogix. - Page 4 17.4 NX6100, PE1 PE4 Line voltage output ONLY 17.5 17.6 17.7 NXDBVSD, PZ15, PZ16, Low voltage <50V AC/DC, 200mA 17.8 NXDBVSD, PZ17, PZ18, Low voltage <50V AC/DC, 200mA 17.9 Available on NXTSD104 display ONLY PR10 Common PR11 Normally Closed PR12 Normally Open For Alarm Purpose use, the following shows the correct connections to the “PR”...
-
Page 5: Software Configuration
Software Configuration. 2.1 IP Addresses Devices on an Ethernet communicate using IP addresses and these need to be assigned to each device on the network. These addresses can be assigned manually or automatically. 2.2 DHCP - automatically assigned IP addresses. If the touch-screen and PC are connected together via a router device, or on a home / office network, it is likely that the router device (or a DHCP server on a company network) will automatically assign IP addresses to both the PC and the touch-screen. - Page 6 2.2.2 Windows Ethernet settings : To check the Ethernet settings for the PC, select Net- work Connections’ from ‘Control Panel’ and then right click on the ‘Local area connection..’ icon. From the menu select ‘Properties’ to reveal the window shown on the left.
- Page 7 Once these settings have been made then the connection may be diagnosed via the 'diagnostics' box on the touch- screen Ethernet page. As in the example below, the diagnostics for 'eth0' (Ethernet) contains the line : inet addr : 192.168.0.161 This means that the touch-screen has made acquired it's IP address successfully.
- Page 8 Once you have entered the required information, don't forget to 'Apply Changes'. Note that the USBnet should be left at Automatic since this is unsupported at the moment. The IP settings information must then be entered into the PC, if it does not have an address assigned already : The subnet mask and gateway must be the same as in the Touchscreen, but the last three digits (only) of the IP address must be different (assuming the mask is 255.255.255.0).
- Page 9 Using the Ethernet features Open a web browser on your PC and enter the IP address of the Touchscreen into the URL line, followed by: 5800 192.168.0.150:5800 The browser should insert http:// at the beginning, so you get : http://192.168.0.150:5800 A ‘java‘...
- Page 10 On firmware versions 1.100 onwards (products shipped after summer 2008), you can simply enter the IP address into your browser without the :5800 on the end. You will get a menu page where you can directly read fault I event logs and some other information.
- Page 11 Internet Explorer version 7 and later will allow you to view multiple tabs to keep track of many boilers on the same screen. To set up multiple tabs, go to Tools, Internet Options, General and enter each IP address on a separate line. When you start the browser all of your touch-screens will appear, each in a separate tab.
- Page 12 IP address (inet addr:) in the second line of the diagnostics window. If you do not see any values at this time, contact your local Fireye representative. On some fixed IP networks, the remote (VNC) screen will freeze after several minutes of inactivity. If the screen is frozen, press the disconnect button to close the session, then restart the session.
