SoundOFF bluePRINT ENGND20001 Quick Start Manual page 3

INPUT NODE

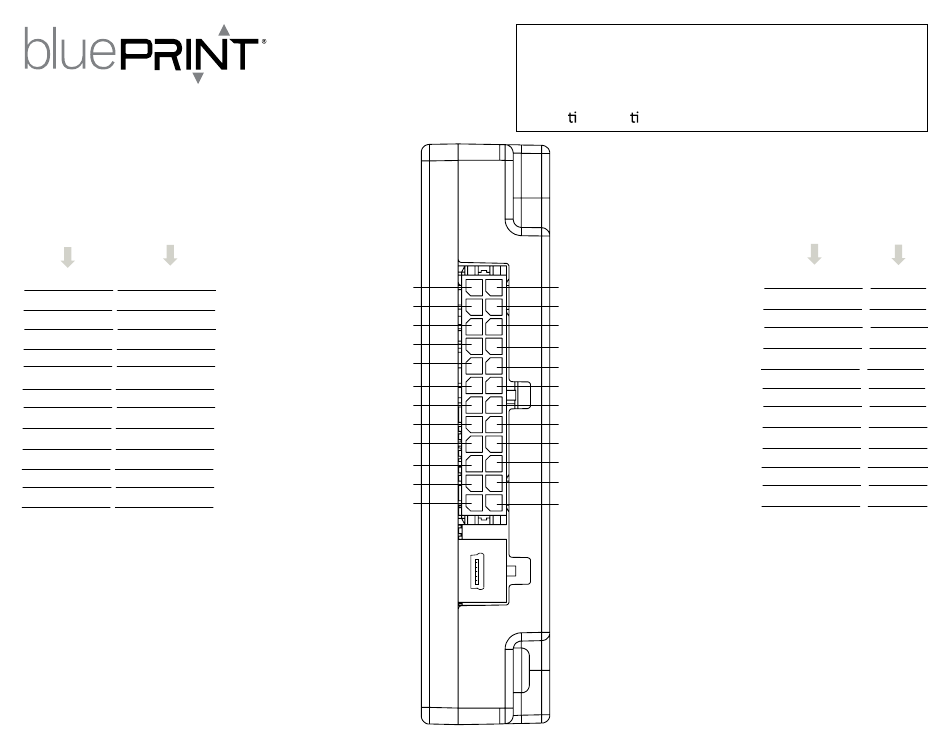

INSTALL TEMPLATE
Function
Wire Color
1.800.338.7337 / www.soundoffsignal.com
3
IGNITION
Pink/ White - PIN#12
H, Input 11 Purple/ White - PIN#11
H, Input 10 Gray/ White - PIN#10
H, Input 9 Black/ White - PIN#9
White - PIN#8
H/L, Input 8
H/L, Input 7 Purple - PIN#7
H/L, Input 6 Brown/ White - PIN#6
LIN DATA Light Green - PIN#5
Black - PIN#4
GROUND
H/L, Input 3
Gray - PIN#3
H/L, Input 2
Green/ White - PIN#2
H/L, Input 1
Blue/ White - PIN#1
Department: _________________________________
Vehicle: ______________________________________
Installer / Date: ________________________________
Moun ng Loca on: _____________________________
PIN#24 - Light Green/ White
PIN#23 - Red/ Black
PIN#22 - Orange/ White
PIN#21 - Yellow/ White
PIN#20 - Brown Input 20, H/L
PIN#19 - Red/ White Input 19, H/L
PIN#18 - Pink Input 18, H/L
PIN#17 - Red
PIN#16 - Orange Input 16, H/L
PIN#15 - Yellow Input 15, H/L
PIN#14 - Green
Input 14, H/L
PIN#13 - Blue Input 13, H/L
Function Wire Color
Input 24, H
Input 23, H
Input 22, H
Input 21, H
POWER
EVCS_Input Node_ENGND20001 0419
