SoundOFF bluePRINT ENGND20001 Quick Start Manual page 2

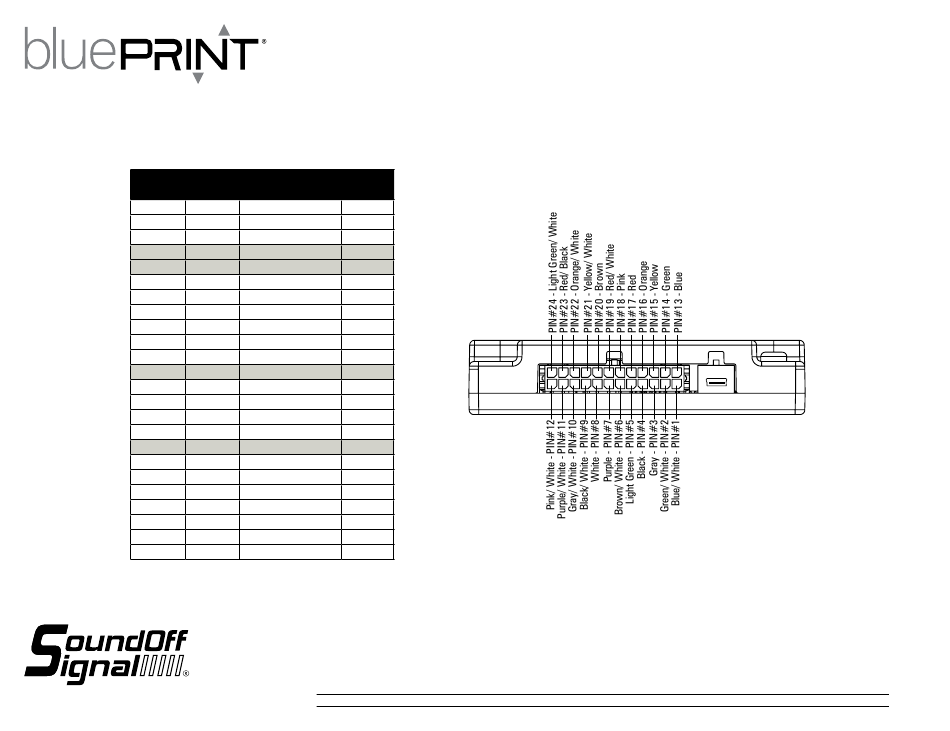

INPUT NODE
PART NUMBER: ENGND20001
Function Wire Pin #
Input 1
Input 2
Input 3
Ground
LIN Data
Input 6
Input 7
Input 8
Input 9
Input 10
Input 11
Ignition
Input 13
Input 14
Input 15
Input 16
Power
Input 18
Input 19
Input 20
Input 21
Input 22
Input 23
Input 24
1.800.338.7337 / www.soundoffsignal.com
2
Wire Color Activation
1 Blue/White H/L
2 Green/White H/L
3 Gray H/L
4 Black
5 Light Green
6 Brown/White H/L
7 Purple H/L
8 White H/L
9 Black/White H
10 Gray/White H
11 Purple/White H
12 Pink/White
13 Blue H/L
14 Green H/L
15 Yellow H/L
16 Orange H/L
17 Red
18 Pink H/L
19 Red/White H/L
20 Brown H/L
21 Yellow/White H
22 Orange/White H
23 Red/Black H
24 Light Green/White H
