SoundOFF bluePRINT ENGND20001 Quick Start Manual

INPUT NODE
PART NUMBER: ENGND20001
The Input Node provides 20 inputs for connection to vehicle devices.
•(13) Active High/Low Inputs
•(7) Active High Inputs
CONNECTING INPUT NODE TO CENTRAL CONTROLLER
•Connect the Input Node to the Central Controller by connecting the single wire LIN wire to the Central Controller
LIN connector.
IGNITION INPUT
•Connect the ignition switch to put the Input Node into low power (sleep mode) when ignition is off. The ignition
input signal is needed for normal operation.

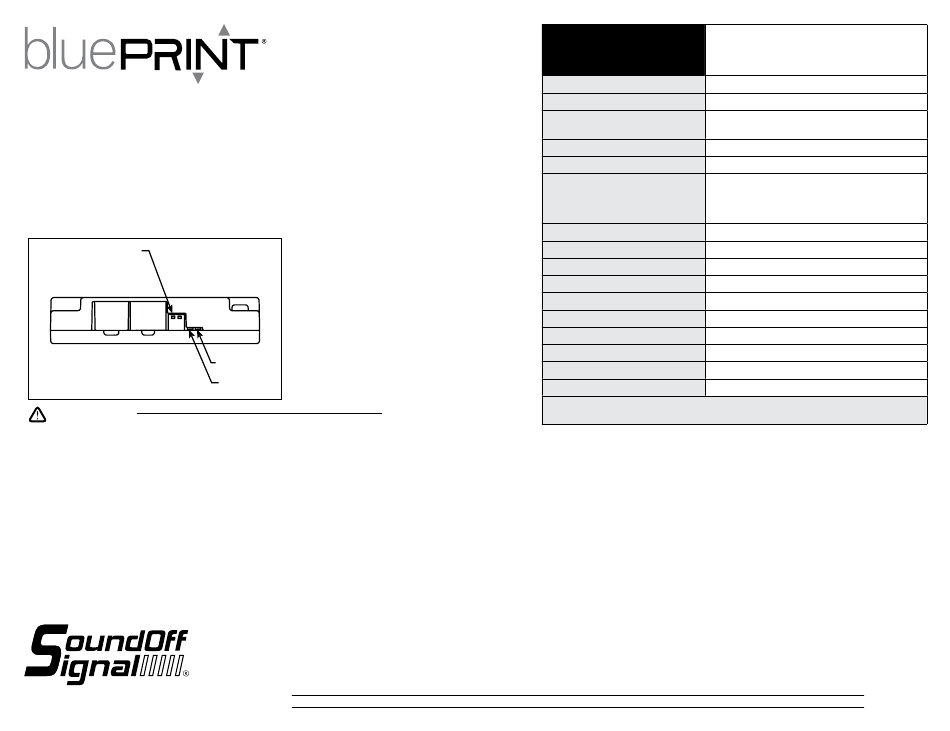

SWITCHES NOT USED
GREEN LED: Indicates Power/Ignition (flash-
ing) and transitions to solid when there is
LIN activity. RED LED: Indicates an input is
active.
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
.
RED LED
GREEN LED
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
Tech Specs
Input Voltage: 10-16Vdc (Negative Ground)
Maximum Input Current: NA
Outputs (Sum of ALL used Outputs
Shall Not Exceed 100Amps)
IGN ON: Standby Current: 30 mA
IGN OFF: Sleep Current: 0.20 mA
Reverse Polarity Protection: Protected
Transient Protection: Protected
High Voltage Protection: >16V; High Voltage Error Code Set
Low Voltage Protection: <9V; Low Voltage Error Code Set
Operating Temp: -40˚C to + 65˚C
Weight, Boxed: 5 oz.
Weight, Device Only: 4 oz.
Valid Input Threshold - High >7.5V
Valid Input Threshold - Low <1.5V
The Input Node is not waterproof. Install in a protected location away from excessive heat
NOTICE:
Improper use or installation may void warranty coverage.
bluePRINT Control System
®
Input Node
None
20 Total
13x Active High/Low Inputs
Inputs:
7x Active High Inputs
1x Local IGN Input (Local Sleep Mode)
Dimensions: 3.5" x 3.5" x .75"
and moisture.
EVCS_Input Node 0419
