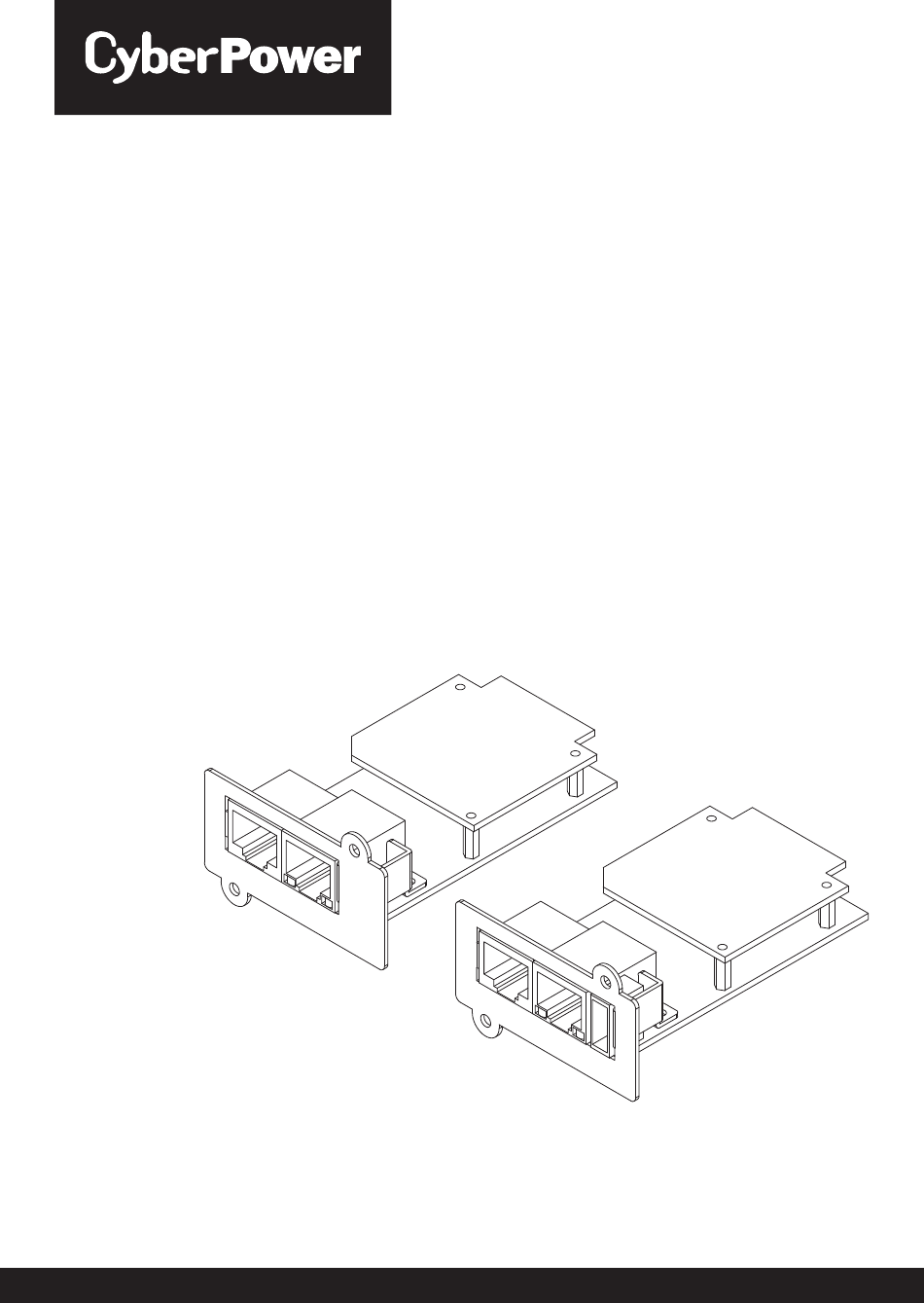

Remote Management Card
Remote Management Card
RMCARD400
RMCARD401
R M
SAVE THESE INSTRUCTIONS
Please read this guide and follow the instructions for installation and use.
Copyright © 2022 Cyber Power Systems, Inc. All rights reserved.
C A
R D
4 0 0
U n
i v e
r s a
l
L i n
k
T x /
R x
C y
b e r
P o
w e
r
QUICK START GUIDE
R M
C A
R D
4 0 1
U n
i v e
r s a
l
L i n
k
T x /
R x
C y
U S
b e r
B
P o
w e
r
K01-0000975-00
Advertisement
Table of Contents
Related Manuals for CyberPower RMCARD400
Summary of Contents for CyberPower RMCARD400
- Page 1 QUICK START GUIDE Remote Management Card Remote Management Card RMCARD400 RMCARD401 4 0 0 i v e r s a L i n T x / b e r 4 0 1 i v e r s a L i n...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION............1 Overview ................1 System Requirements ............ 1 Unpacking................1 Front Panel ................. 2 LED Status Indicator............2 INSTALLATION ............3 Step 1. Hardware Installation ........3 Step 2. Configure the IP Address ......4 WEB INTERFACE ............6 Login User Account ............6 FIRMWARE UPGRADE..........6 RESET TO FACTORY DEFAULT SETTING/ RECOVER FROM A LOST PASSWORD ....9... -
Page 3: Introduction
INTRODUCTION Overview The CyberPower Remote Management Card allows a UPS system and environmental sensor to be managed, monitored, and configured. After installing the hardware and configuring an IP address, the user can access, monitor, and control the UPS from anywhere in the world! Simply use a web browser or SSH client to access your UPS. -
Page 4: Front Panel
Front Panel RMCARD400 RMCARD400 Universal Link Tx/Rx 1. Universal Port 2. Ethernet Port RMCARD401 3. Tx/Rx Indicator 4. Link Indicator RMCARD401 5. USB Port Universal Link Tx/Rx USB LED Status Indicators Link LED Condition The Remote Management Card is not... -
Page 5: Installation
NOTE: The CyberPower Remote Management Card is hot-swappable, so you do not need to turn o the device to install it. NOTE: Please do not remove or modify SDCARD on the back. CyberPower is not responsible for any unauthorized modification to RMCARD400/401. -
Page 6: Step 2. Configure The Ip Address
Step 2. Configure the IP Address for the CyberPower Remote Management Card Method 1: Using the Power Device Network Utility 2 1. Install the Power Device Network Utility 2 available for download at www.CyberPower.com. 2. After installation completes, run the “Power Device Network Utility 2”. - Page 7 6. You can modify the IP Address, Subnet Mask, and Gateway address for the Device MAC Address listed in the Device Network Settings window, as shown in Figure 3. The factory default IP Address is 192.168.20.177 and the default Subnet Mask is 255.255.255.0.
-
Page 8: Web Interface
WEB INTERFACE Login User Account You will need to enter a User Name and Password to login to the interface, and can select a preferred language after login. There are two user account types. 1. Administrator - Default username: cyber - Default password: cyber 2. - Page 9 Using Power Device Network Utility Install the CyberPower Power Device Network Utility 2 available for download at www.CyberPower.com. 1 . After installation completes, run the “Power Device Network Utility 2”. 2 . The main window of the Power Device Network Utility 2 program is shown in Figure 4.
- Page 10 6 . Select the Firmware and click “OK” to implement firmware upgrade, as shown in Figure 5. Figure 5. The File Locations of Firmware & Data window. 7 . If the firmware upgrade is implemented, you will see the Result in the main window, as shown in Figure 6.
-
Page 11: Reset To Factory Default Setting/Recover From A Lost Password
RESET TO FACTORY DEFAULT SETTING/RECOVER FROM A LOST PASSWORD To reset the CyberPower Remote Management Card to its factory default setting (including web log-in user name and password), please follow these steps: RESET JUMPER RMCARD400/401 1. Remove the card from the UPS without turning the UPS o . -
Page 12: Software Support
NOTE: RMCARD400/401 is designed for the 43x18mm (1.69x0.71 inch) SNMP card expansion port of CyberPower PR, OR, and 1-3kVA OL series UPS. SOFTWARE SUPPORT PowerPanel® Business Remote is used to perform a graceful operating system shutdown when protected by a UPS with a remote management card installed. -
Page 13: Troubleshooting
► Ensure the network connection is good. Address using 2. Ensure the PC being used is on the same method 1 or method 2 local network subnet as the CyberPower device you are trying to communicate with. 3. Ensure the Jumper on the Reset Pin is correctly installed. -
Page 14: Conformance Approvals
State of California to cause cancer, and Bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. For warranty and additional information, please visit: www.cyberpower.com. - Page 15 Disposal The Waste Electrical and Electronic Equipment (WEEE) Directive aims to contribute to sustainable production and consumption by contributing to the e cient use of resources and the retrieval of secondary raw materials through re-use, recycling and other forms of recovery. The symbol on this product and/or its packaging indicates that the product must be disposed of separately from ordinary household wastes at its end of...
- Page 16 Cyber Power Systems, Inc. 11F., No.26, Jinzhuang Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886 2 8792 9510 | Fax: +886 2 8792 9621 Email: tw.service@cyberpower.com, uk.service@cyberpower.com All Other Regions Please visit our website for local contact information. Copyright © 2022 Cyber Power Systems, Inc. All rights reserved.
