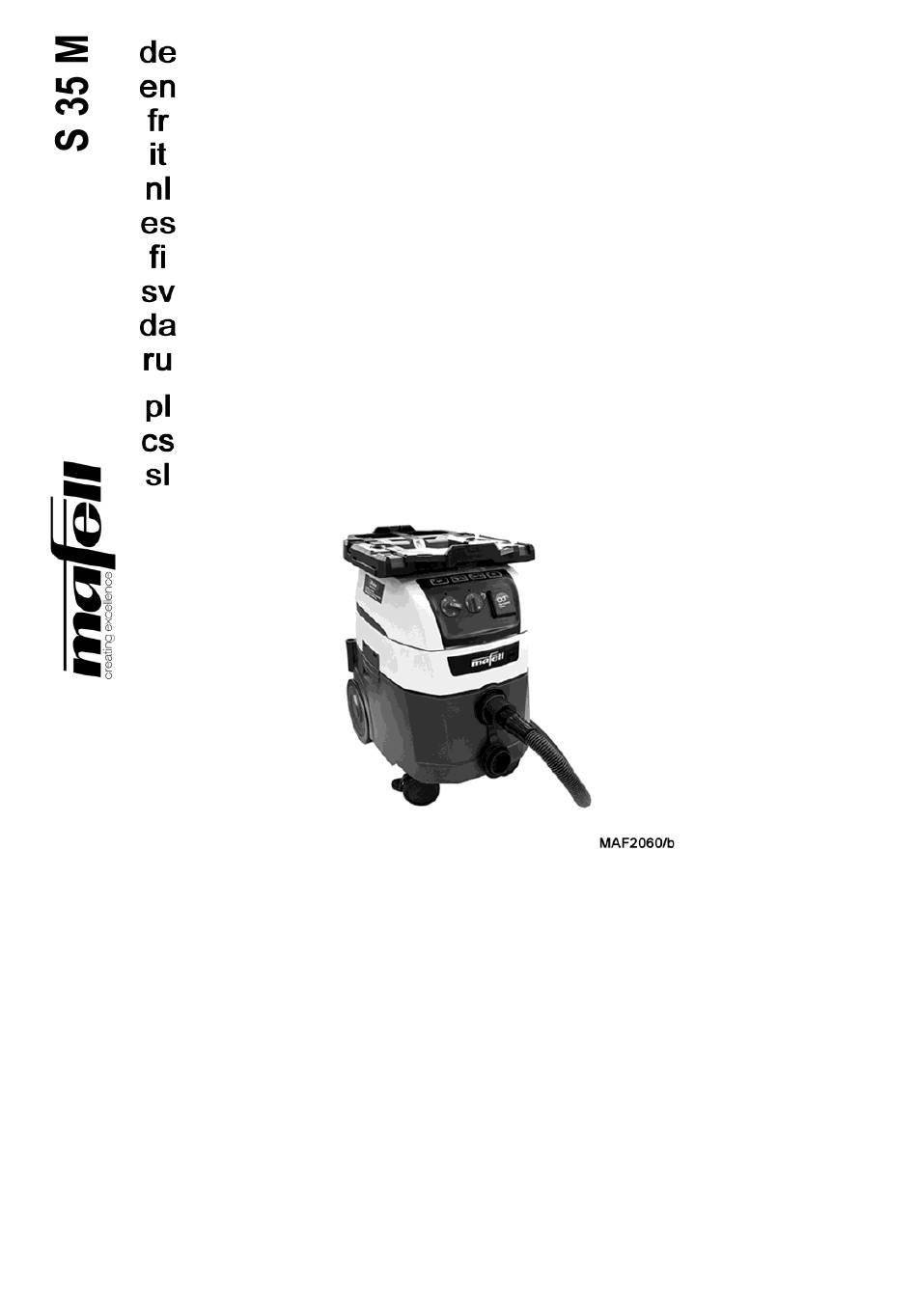

- Page 1 170656.0620/a Absauggerät Originalbetriebsanleitung Dust extractor Translation of the original operating instructions Aspirateur Traduction de la notice d'emploi originale Aspiratore Traduzione delle istruzioni d’uso originali Afzuigtoestel Vertaling van de originele gebruiksaanwijzing Aspirador Traducción del manual de instrucciones original Imurointilaite Käännös alkuperäiskäyttöohjeesta Sugaggregat Översättning av originalbruksanvisningen Udsugningsapparat...
- Page 2 ADVERTENCIA Lea todas las indicaciones de seguridad e instrucciones. Si no se cumplen las indicacionesde seguridad e instrucciones, se pueden producir descargas eléctricas, incendios y/o lesiones graves. Guarde todas las indicaciones de seguridad e instrucciones para el futuro. VAROITUS Lue kaikki turvaohjeet ja käyttöohjeet. Laiminlyönti turvaohjeiden ja käyttöohjeiden noudattamisessa voi aiheuttaa sähköiskun, tulipalon ja/tai vakavia vammoja.
-
Page 5: Table Of Contents
English Table of Contents Signs and symbols ......................17 Product information ......................17 Manufacturer´s data ....................... 17 Device identification ....................... 17 Technical data ........................ 18 Noise emission specifications ..................18 Scope of supply ......................18 Device description ......................18 Safety devices ........................ 19 Use according to intended purpose ................ -
Page 6: Signs And Symbols
Product information for dust extractors S 35 M with Art.-No. 91C401, 91C420, 91C421 2.1 Manufacturer´s data MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone +49 (0)7423/812-0, Fax +49 (0)7423/812-218 2.2 Device identification All information required for device identification is available on the rating plate attached to the motor casing. -
Page 7: Technical Data

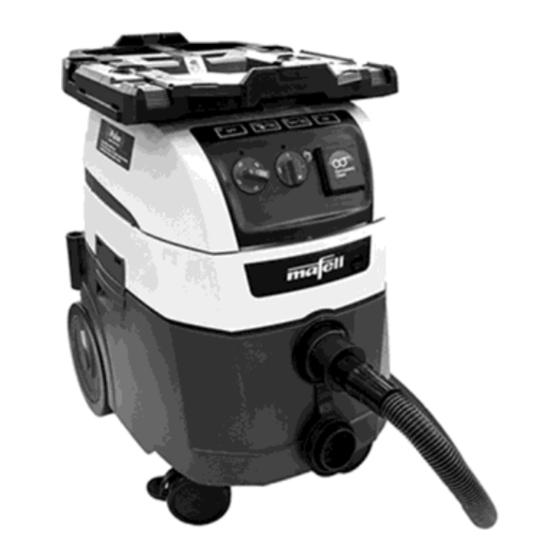

2.6 Device description dispose of the extracted material. The dust extractor S 35 M is a device for use as dry and wet dust extractor. Diligently read these operating instructions before starting up the dust extractor. -
Page 8: Safety Devices
The dust extractor S 35 M may only be used, set up - The voltage on the device rating plate must agree and serviced by persons who are acquainted with the with the mains voltage. - Page 9 - Damaged cables or plugs must be immediately replaced. Replacement may only be carried out by - If the device's connecting cable is damaged, it Mafell or an authorised MAFELL service workshop must be replaced by a special connecting cable in order to avoid safety hazards.
-
Page 10: Setting / Adjustment
The filter bag must be changed if the control display blinks during operation and an additional acoustic 4.2 Mains connection signal is sounded. The dust extractor S 35 M is equipped with protective earthing acc. to class I and may therefore only be 4.4.1 Changing the non-woven filter bag connected to sockets with protective earth conductor. -
Page 11: Disposal Of Filter Bags
When the power plug is plugged in, rotary valve in the intake port of the socket outlet is always live, types S 35 M and S 35 HEPA are irrespective of the switch position. suitable for use with PE-discharge In switch position "0", the socket and disposal bags. -
Page 12: Switching On And Off
40 m³/h Ø 21 mm 20 m³/h For options Ø 27 mm and Ø 21 mm, the speed is reduced. The dust extractor S 35 M is equipped with an electric suction force regulator. The turning knob 2 can be -23-... -
Page 13: Hints And Information
The storage place must be dry and frost-protected. If the device fails despite diligent manufacturing and test procedures, the repair must be carried out by an authorised customer service station for MAFELL products. Danger Only use MAFELL accessories and spare parts. -
Page 14: Servicing
Determining the causes for existing defects and eliminating these always requires increased attention and caution. Pull the mains plug beforehand! Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service. Defect Cause... -
Page 15: Special Accessories
Order No. 093730 - Manual extraction set Order No. 093718 - Reducing adapter Ø 58 / 35 Order No. 203602 Exploded drawing and spare parts list The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com -26-...
