WHD VBI10 Manual

Manual VoiceBridge Set
Applicable for 111-020-04-200-02
VBI10 (voice bridge internal)
VBE10 (voice bridge external)

Scope of delivery

1 X VoiceBridge internal (staff)
1 X VoiceBridge external (customer)
1 X Switching power Supply with 2m cable
1 X Cable 1m
1 X Manual

Brief Introduction

The VoiceBridge Intercom Kit consists of one internal unit and one
external unit, mainly used to facilitate conversations when the
speakers are separated by a wall, a piece of glass/plexiglass sheet, ...
etc., for example at cashier or service counters.

Technical Parameter

Used in pare VBI10 and VBE10
Power Supply
Microphone with AEC + NR
Operation Temperature
Operation Humidity
Storage Temperature
Protection class
Housing Material
Dimensions 110.5 x 86 x 26mm
This product supports all CE-
marking criteria. The declaration
of conformity certificate can be
obtained from WHD.

Operation

Thank you for buying our Voice Bridge Intercom Kit.
Please read this manual carefully, especially the safety and security information.

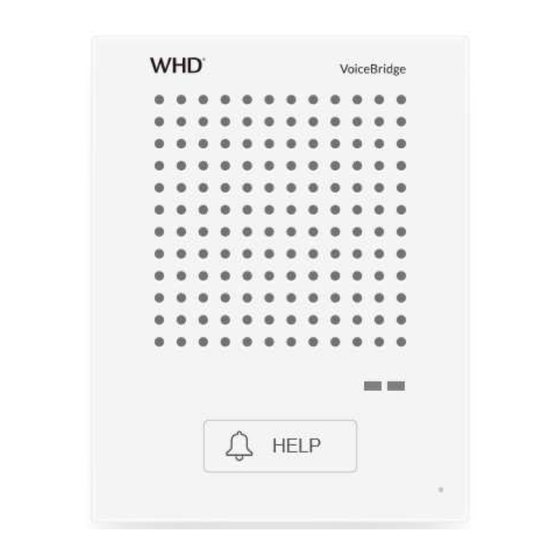

Product Outline

VBI10 :
10 9

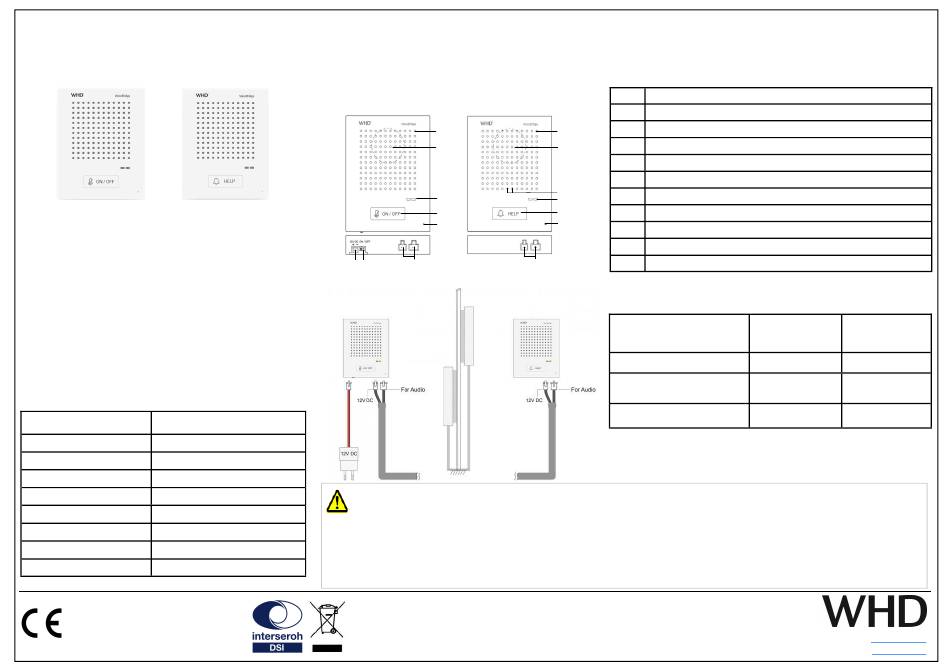

Installation diagram
VBI10
12V DC 3 W
-20~50

Safety Instructions

5%~90% RH
-30~60
Make sure turn off all power at the breaker before performing any wiring work.

IP 33
Do not apply 110VAC or 230VAC. Use only the power supply unit indicated in document requirement.

ABS The device must only be installed and put into service by qualified electrical personnel.

 When using this product, basic safety precautions should always be followed to reduce the risk of fire electric shock or personal injury.
Do not use this product near water.
WHD are members of the INTERSEROH association.
We participate in the dual system as well as other
industry-specific solutions. Therefore, plastic, metal
and electronic parts can all be recycled.
VBE10:
1 1
2
2
3
4
4
6*
5
7 7
8 8
Staff Customer
VBE10
Improper handling may void warranty!
No. Description
1 Potentiometer for volume adjustment ( only by commissioning )
2 Speaker
3 Proximity sensor / IR-sensor
4 LED status indicator
5 Mute key to deactivate/ activate the Microphone
6* Help key as attention signal
7 Microphone
8 Connection sockets
9 Power switch
10 12V DC
*: This key and function is optional.
LED status indicator
VBI10 LED
Operation Staff
(Green/Red)
Standby Green on/ Red off
Microphone, activated by
IR-sensor
Mute key touched Green on/ Red on
Switching power Supply description
Input: 100~240V AC, 50/60 Hz
Output: 12V DC, 1A
WHD - Wilhelm Huber+Söhne GmbH+Co.KG
Bismarckstr. 19
D-78652 Deißlingen
Support +49 74 20 / 8 89-0
Fax +49 74 20 / 8 89-51
Version
(Technical and optical
modifications reserved)
25.06.2020
- Page 1 -
VBE10 LED
Customer
(Green/Red)
Green on/ Red on
Green on/ Red off
E-Mail: info@whd.de
Web: www.whd.de
