Model Number: MF12-CA
Globally Regulated Version
For Children:
at least 4 years of age
18 to 45 kg (40 to 100 lbs.)
91 cm to 150 cm (36 to 59 inches)
• This child restraint conforms to all applicable Canadian
Motor Vehicle Safety Standards 213.2 for use in motor
vehicles with lap/shoulder belts.
• This child restraint is NOT certified for use in aircraft.

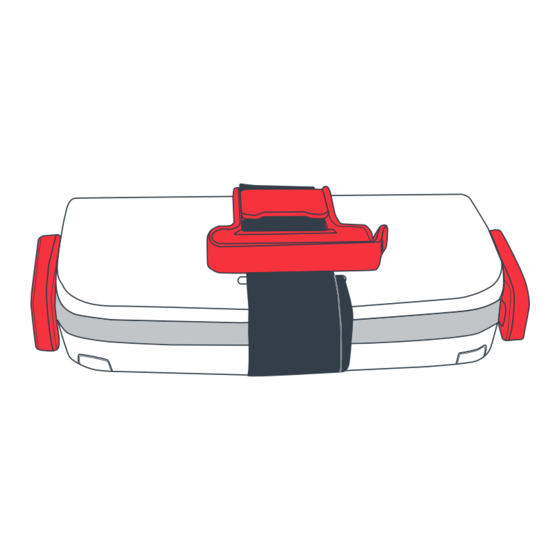

Grab-and-Go Booster
Grab-and-Go Booster
®
®
Advertisement
Table of Contents
Related Manuals for Mifold Grab-and-Go Booster MF12-CA
Summary of Contents for Mifold Grab-and-Go Booster MF12-CA

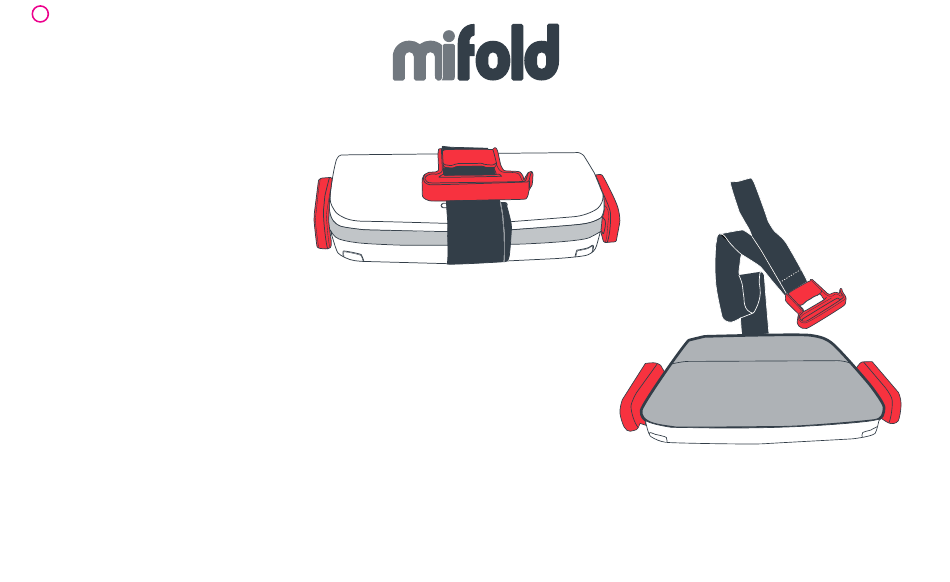

- Page 1 Grab-and-Go Booster ® Grab-and-Go Booster ® Model Number: MF12-CA Globally Regulated Version For Children: at least 4 years of age 18 to 45 kg (40 to 100 lbs.) 91 cm to 150 cm (36 to 59 inches) • This child restraint conforms to all applicable Canadian Motor Vehicle Safety Standards 213.2 for use in motor vehicles with lap/shoulder belts.
-
Page 2: Table Of Contents
Weight and Height Table of Contents Use Recommendations Weight and Height Use Recommendations ... • Child MUST be at least mifold - Booster Seat Parts ........4 years old. Warnings ..............• Child’s weight MUST be Proper Use Checklist .......... -
Page 3: Weight And Height Use Recommendations
Weight and Height Use Recommendations • Child MUST be at least 4 years old. - A booster seat is designed to position the adult • Child’s weight MUST be between 18 and 45 kg vehicle belt correctly on the child. (40 and 100 lbs.). -
Page 4: Mifold - Booster Seat Parts
- Booster Seat Parts Storage Clip Shoulder Belt Guide Strap Shoulder Belt Guide Adjustment Clip Shoulder Belt Guide Shoulder Belt Slot Seat Pad Lap Belt Guide Lap Belt Guide Lap Belt Slot Lap Belt Slot Lap Belt Guide Lap Belt Guide... -
Page 5: Warnings
WARNING - DEATH or SERIOUS INJURY can occur Failure to follow these instructions and car seat • Use only the vehicle’s lap and shoulder belt system when restraining a child in this Booster Seat. Lap labels can result in child striking the vehicle’s belt portion MUST be inserted through both belt interior during a sudden stop or crash. - Page 6 WARNING - DEATH or SERIOUS INJURY can occur • NEVER use Booster Seat with only a vehicle lap or is damaged, missing parts or the instruction belt across front of child. Use of lap belt only can manual is missing. result in serious injury or death.
-
Page 7: Proper Use Checklist
Proper Use Checklist √ Booster Seat and child’s back MUST make contact √ Child MUST be sitting up, with back against vehicle with vehicle seat back. seat back not slouching down under Vehicle Lap √ Vehicle Lap and Shoulder Belt. √... -
Page 8: Selecting A Vehicle Seating Location
Selecting a Vehicle Seating Location WARNING • Refer to vehicle owner’s manual for information on securing children and vehicle seat belt use. DEATH or SERIOUS INJURY can occur • NOT all vehicle seat belts can be used with the Booster Seat. Read vehicle owner’s manual on •... - Page 9 Selecting a Vehicle Seating Location Vehicle Seating Locations NOT To Use: 1. Universal Anchorage System (UAS): 2. Side Facing and Rear Facing Seats: • Do not use the • DO NOT use on side or rear-facing vehicle vehicle Universal seats. Anchorage System (UAS) with this Booster Car Seat.
-
Page 10: Vehicle Seat Belt Systems
Select A Vehicle Vehicle Seat Belt Seating Location Systems According to accident statistics, children age 12 • This Booster Seat MUST be used with a Vehicle and under are safer when properly restrained in the Lap and Shoulder Belt system. DO NOT use the rear seating positions rather than the front seating Vehicle Belt systems in this section. - Page 11 Shoulder Belt C. Inflatable Seat Belt Systems: • mifold has revised its recommendations based upon an analysis of vehicle seat belt system test results. The Ford Motor Company Inflatable seat belt system fitted to Ford and Lincoln model vehicles is approved for use with the mifold grab-and-go booster seat under model number MF12-CA.
-
Page 12: Storing Your Booster Seat
Note About Switchable Retractors A note about switchable retractors: mifold comes with a Storage Clip which is attached to the end of the Shoulder Belt Guide Strap to hold your mifold tightly Many vehicles have a lap and shoulder belt system in which the closed when stored or carried around. -
Page 13: Booster Seat Installation
Booster Seat Installation WARNING 1. Adjust the width of the Lap Belt Guides. DEATH or SERIOUS INJURY can occur The Lap Belt Guides have four adjustment positions, • Use only with the Vehicle’s Lap and Shoulder Belt. one for storage and transport •... - Page 14 Booster Seat Installation 2. The Lap Belt Guides should be adjusted into the b. Adjust to fit child. position nearest to, but not touching the sides of 1. Place Booster Seat the child’s thighs. with Lap Belt Guides extended on vehicle seat. To adjust width of Lap Belt Guides: 2.
-
Page 15: Securing Child On Booster Seat
Securing Child on Booster Seat WARNING 1. Unfold and place Booster Seat on vehicle seat in a seating location that has DEATH or SERIOUS INJURY can occur a Vehicle Lap and Shoulder Belt. • DO NOT use Booster Seat in a seating position that has a Vehicle Lap Belt ONLY. - Page 16 5. Secure child with the Vehicle • DO NOT place shoulder Lap and Shoulder Belt. belt through EITHER Lap Belt Guide. • DO NOT switch lap and shoulder belt into automatic locking retractor (ALR) mode when installing any booster car seat including mifold.
- Page 17 Securing Child on Booster Seat b. Pull up on Vehicle Shoulder Belt to remove To adjust position of the slack from lap portion of Vehicle Seat Belt Shoulder Belt Guide: - Pull out on Shoulder and snugly adjust Lap Belt around child. Belt Guide Adjustment Check that Vehicle Lap Belt is low on hips Clip...
- Page 18 Securing Child on Booster Seat WARNING d. Slide the Shoulder Belt Guide Adjustment Clip onto the Vehicle Shoulder DEATH or SERIOUS INJURY can occur Belt as shown. The belt must be completely within the Shoulder Belt Guide • Avoid potential abdominal injury from submarining slot .
-
Page 19: Removing Child From Booster Seat
2. Have your child lean away from the vehicle buckle. 3. Lift mifold up on the buckle side and remove lap belt. If removal of the lap belt is not possible due to the vehicle belt continuing to tighten, the vehicle seat belt should be cut to remove the child. -
Page 20: Re-Use After A Crash
For transporting Booster Seat when not occupied: When not occupied, it is recommended to fold and store the mifold in a secure location such as the glove DEATH or SERIOUS INJURY can occur box, trunk, or storage area. However, if it is left on the vehicle seat it MUST be secured with a vehicle belt as •... -
Page 21: Additional Information
Re-Use After a Crash Additional Information Certification: The mifold Booster Seat is a unique design that • Motor Vehicle Use - this child restraint meets or absorbs some of the forces in a vehicle crash when occupied by a child. These crash forces can deform exceeds all applicable requirements of Canada’s... - Page 22 FMVSS213 in the USA and to CCC a defect is discovered during the limited warranty in China. This mifold booster seat can be used by a period, we will, at our sole option, repair or replace visitor to any of these countries (except Australia).
- Page 23 For warranty service: warranty of merchantability or fitness for a particular Please call: 1-800-667-8184 purpose, is expressly limited to this limited warranty email: service@mifold.ca period. or write to: Elfe Juvenile Products The customer’s exclusive remedy for breach of this...
- Page 24 • This product does not have any replaceable parts. name, address, e-mail address if available, and the restraint’s model number and manufacturing • For any issues or further information, contact mifold date to: Elfe Juvenile Products Customer Service at 1-800-667-8184 or by email at 2520 Av Marie-Curie, service@mifold.ca...
- Page 25 NOTES...
- Page 26 102 cm to 145 cm (40 to 57 inches) • This child restraint conforms to CMVSS 213.2 for use in motor vehicles with lap/shoulder belts. • This child restraint is NOT Carfoldio and mifold Manufactured and distributed in the USA by: ™ ® are registered trademarks Carfoldio Ltd.
