Model Number: MF01-CA
For Children:
at least 4 years of age
18 to 45 kg (40 to 100 lbs.)
102 cm to 145 cm (40 to 57 inches)
• This child restraint conforms to CMVSS 213.2
for use in motor vehicles with lap/shoulder belts.
• This child restraint is NOT certified for use in aircraft.

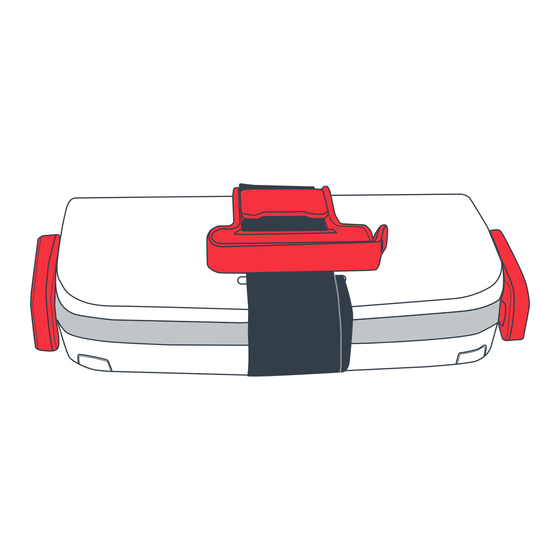

Grab-and-Go Booster
Grab-and-Go Booster
®
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mifold Grab-and-Go Booster
Summary of Contents for Mifold Grab-and-Go Booster

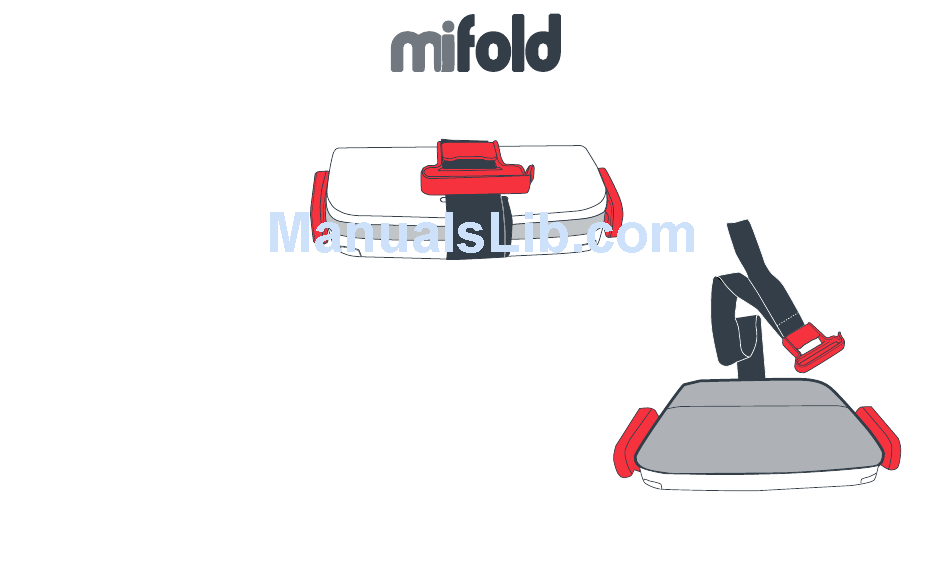

- Page 1 Grab-and-Go Booster ® Grab-and-Go Booster ® Model Number: MF01-CA For Children: at least 4 years of age 18 to 45 kg (40 to 100 lbs.) 102 cm to 145 cm (40 to 57 inches) • This child restraint conforms to CMVSS 213.2 for use in motor vehicles with lap/shoulder belts.
-
Page 2: Table Of Contents
Weight and Height Table of Contents Use Recommendations Weight and Height Use Recommendations ....• Child MUST be at least mifold Grab-and-Go Booster - Parts ......® 4 years old. Warnings ..............• Child’s weight MUST be Proper Use Checklist .......... -
Page 3: Mifold Grab-And-Go Booster - Parts
Grab-and-Go Booster - Parts ® Shoulder Belt Guide Shoulder Belt Adjustment Clip Guide Strap Shoulder Belt Slot Shoulder Belt Guide Tab Seat Pad Shoulder Belt Guide Lap Belt Guide Lap Belt Guide Lap Belt Slot Lap Belt Slot Lap Belt Guide... -
Page 4: Warnings
WARNING - DEATH or SERIOUS INJURY can occur Failure to follow these instructions and car seat • Use only the vehicle’s lap and shoulder belt system when restraining a child in this Booster Seat. Lap labels can result in child striking the vehicle’s belt portion MUST be through both belt guides. - Page 5 WARNING - DEATH or SERIOUS INJURY can occur • NEVER use Booster Seat with only a vehicle lap • DO NOT use Booster Seat if it has been in a crash belt across front of child. Use of lap belt only can or is damaged, missing parts or the instruction result in serious injury or death.
-
Page 6: Proper Use Checklist
Proper Use Checklist √ Booster Seat and child’s back MUST make contact √ Child MUST be sitting up, with back against vehicle with vehicle seat back. seat back not slouching down under Vehicle Lap √ Vehicle Lap and Shoulder Belt. √... -
Page 7: Selecting A Vehicle Seating Location
Selecting a Vehicle Seating Location WARNING • Refer to vehicle owner’s manual for information on securing children and vehicle seat belt use. DEATH or SERIOUS INJURY can occur • NOT all vehicle seat belts can be used with the Booster Seat. Read vehicle owner’s manual on •... - Page 8 Selecting a Vehicle Seating Location Vehicle Seating Locations NOT To Use: 1. Universal Anchorage System (UAS): 2. Side Facing and Rear Facing Seats: • Do not use the • DO NOT use on side vehicle universal or rear-facing vehicle anchorage system seats.
-
Page 9: Vehicle Seat Belt Systems
Select A Vehicle Vehicle Seat Belt Seating Location Systems According to accident statistics, children age 12 • This Booster Seat MUST be used with a Vehicle and under are safer when properly restrained in the Lap and Shoulder Belt system. DO NOT use the rear seating positions rather than the front seating Vehicle Belt systems in this section. - Page 10 Vehicle Seat Belt Systems 2. Passive Restraint Systems: B. Door Mounted Lap And Shoulder • Do not use front A. Motorized Shoulder Belts: seating locations • Do not use where seat belts seating locations are mounted to with motorized the door. shoulder belts.
-
Page 11: Note About Switchable Retractors
2. Have your child lean away from the vehicle buckle. from the emergency locking mode (ELR) to an 3. Lift mifold up on the buckle side and remove lap belt. automatic locking mode (ALR). The ALR mode is not designed for use with booster car seats... -
Page 12: Booster Seat Installation
Booster Seat Installation WARNING 1. Adjust the width of the Lap Belt Guides. DEATH or SERIOUS INJURY can occur The Lap Belt Guides have four adjustment positions, • Use only with the Vehicle’s Lap and Shoulder Belt. one for storage and transport •... - Page 13 Booster Seat Installation 2. The Lap Belt Guides should be adjusted into the b. Adjust to fit child. position nearest to, but not touching the sides of 1. Place Booster Seat the child’s thighs. with Lap Belt Guides extended on vehicle seat. To adjust width of Lap Belt Guides: 2.
-
Page 14: Securing Child On Booster Seat
Securing Child on Booster Seat WARNING 1. Unfold and place Booster Seat on vehicle seat in a seating location that has DEATH or SERIOUS INJURY can occur a Vehicle Lap and Shoulder Belt. • DO NOT use Booster Seat in a seating position that has a Vehicle Lap Belt ONLY. - Page 15 • DO NOT place 5. Secure child with the Vehicle shoulder belt through Lap and Shoulder Belt. EITHER Lap Belt Guide. • DO NOT switch lap and shoulder belt into automatic locking retractor (ALR) mode when installing any booster car seat including mifold.
- Page 16 Securing Child on Booster Seat b. Pull up on Vehicle Shoulder To adjust position of the Belt to remove slack from Shoulder Belt Guide: - Pull out on Shoulder lap portion of Vehicle Seat Belt Guide Adjustment Belt and snugly adjust Lap Clip to release Belt around child.
- Page 17 Securing Child on Booster Seat WARNING - Slide Vehicle Shoulder Belt into Shoulder Belt Slot then push down DEATH or SERIOUS INJURY can occur on top of Shoulder Belt Guide to snap Shoulder • Avoid potential abdominal injury from submarining Belt Slot closed .
-
Page 18: Removing Child
2. Have your child lean away from the vehicle buckle. Booster ® 3. Lift mifold up on the buckle side and remove lap belt. - Store the mifold Grab-and-Go Booster in a ® secure location such as the glove box, trunk,... -
Page 19: Re-Use After A Crash
Re-Use After a Crash WARNING For transporting Booster Seat when not occupied: When not occupied, it is recommended to fold and store the mifold in a secure location such as the ® DEATH or SERIOUS INJURY can occur glove box, trunk, or storage area. However, if it is left on the vehicle seat it MUST be secured with a vehicle •... -
Page 20: Additional Information
Re-Use After a Crash Additional Information Certification: The mifold Grab-and-Go Booster is a unique design ® • Motor Vehicle Use - this child restraint meets or that absorbs some of the forces in a vehicle crash when occupied by a child. These crash forces can... - Page 21 • For any issues or further information, contact Elfe Juvenile Products Customer Service at This limited warranty does not cover claims 1-800-667-8184 or by email at service@mifold.ca. resulting from misuse, failure to follow the instructions on installation, maintenance and use, abuse, alteration, involvement in an accident, and normal wear and tear.
- Page 22 Additional Information Warranty (continued): Warranty (continued): This limited warranty is exclusive and in lieu of any The customer’s exclusive remedy for breach of this other warranty, written or oral, including but not limited warranty or of any implied warranty or of limited to any express warranty of merchantability any other obligation arising by operation of law or fitness for a particular purpose.
- Page 23 Elfe Juvenile Products 4500 Thimens Blvd. 4500 Thimens Blvd. St-Laurent, QC, H4R 2P2 St-Laurent, QC, H4R 2P2 or call 1-800-667-8184 or log onto www.mifold.ca Model Number is on Shoulder Belt Guide Strap label. Manufacturing Date is on Shoulder Belt Guide label.
- Page 24 Additional Information NOTES For recall information: • Call Transport Canada at 1-800-333-0371 • Go to www.tc.gc.ca • Call Elfe Juvenile Products at 1-800-667-8184 • Log onto www.mifold.ca • Email: service@mifold.ca...
- Page 26 102 cm to 145 cm (40 to 57 inches) • This child restraint conforms to CMVSS 213.2 for use in motor vehicles with lap/shoulder belts. • This child restraint is NOT Carfoldio and mifold ™ ® Manufactured and distributed in the USA by: are registered trademarks Carfoldio Ltd.
