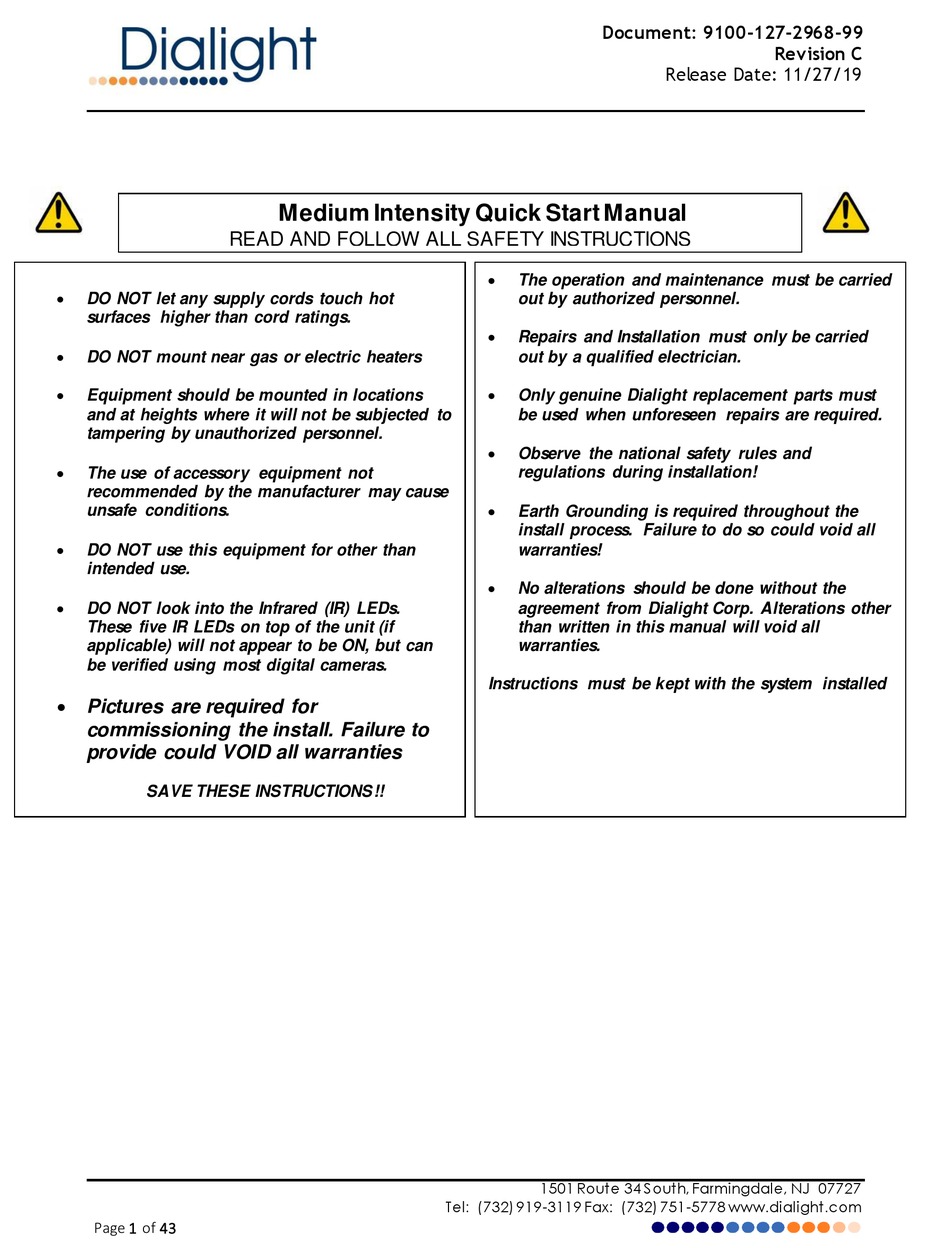

READ AND FOLLOW ALL SAFETY INSTRUCTIONS
DO NOT let any supply cords touch hot
surfaces higher than cord ratings.
DO NOT mount near gas or electric heaters
Equipment should be mounted in locations
and at heights where it will not be subjected to
tampering by unauthorized personnel.
The use of accessory equipment not
recommended by the manufacturer may cause
unsafe conditions.
DO NOT use this equipment for other than
intended use.
DO NOT look into the Infrared (IR) LEDs.
These five IR LEDs on top of the unit (if
applicable) will not appear to be ON, but can
be verified using most digital cameras.
 Pictures are required for
commissioning the install. Failure to
provide could VOID all warranties
SAVE THESE INSTRUCTIONS !!
Page 1 of 43

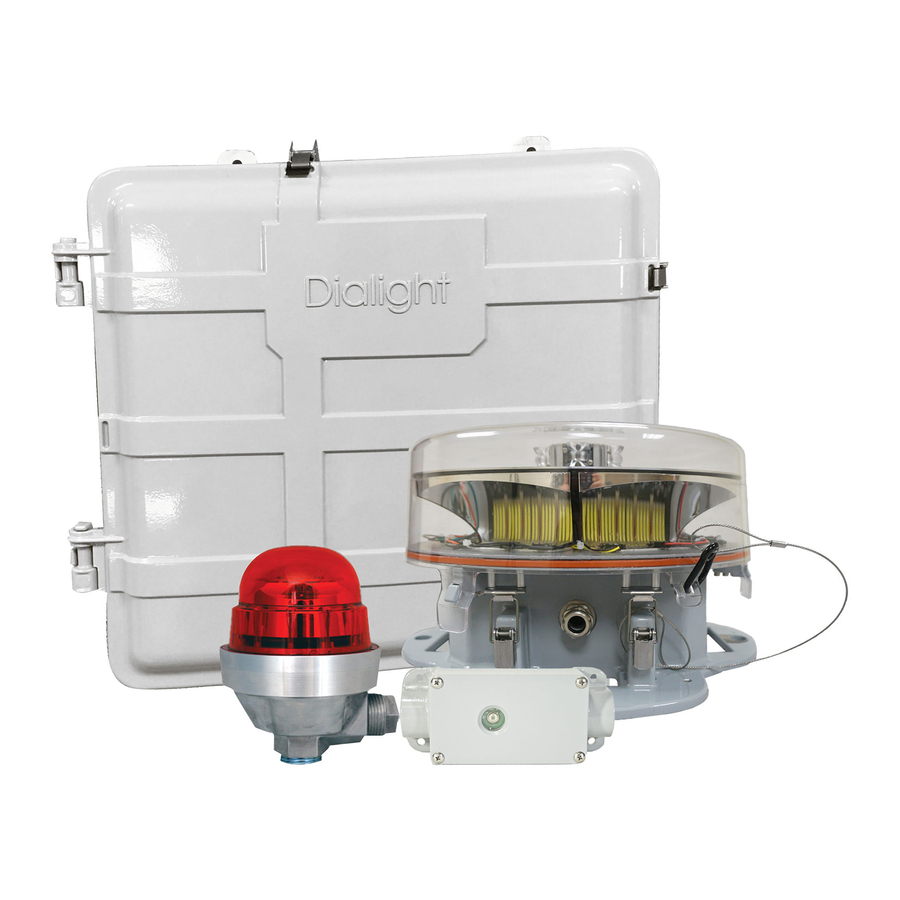

Medium Intensity Quick Start Manual
Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com
Document: 9100-127-2968-99
Release Date: 11/27/19
The operation and maintenance must be carried
out by authorized personnel.
Repairs and Installation must only be carried
out by a qualified electrician.
Only genuine Dialight replacement parts must
be used when unforeseen repairs are required.
Observe the national safety rules and
regulations during installation!
Earth Grounding is required throughout the
install process. Failure to do so could void all
warranties!
No alterations should be done without the
agreement from Dialight Corp. Alterations other
than written in this manual will void all
warranties.
Instructions must be kept with the system installed
1501 Route 34 South, Farmingdale, NJ 07727
Revision C
