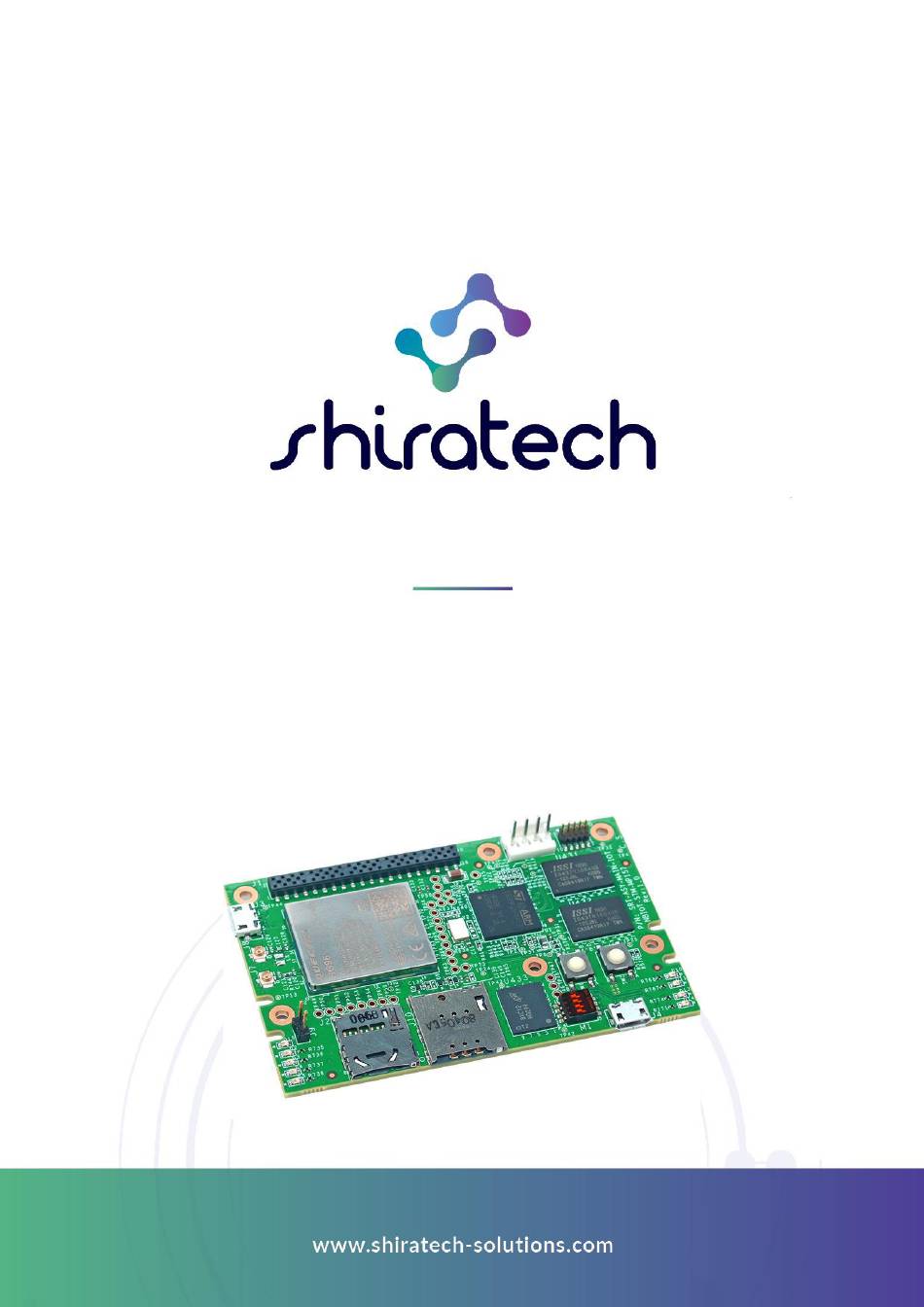

  • Page 1 Stinger96 Hardware User Manual Rev1.0...
  • Page 2 Stinger96 HW User Manual Rev1.0 Document Revision History Revision Date Author Status and Description 0.13 22/07/2019 Ori Makover Pre-Initial version 01/05/2020 Guy Zohar First release INDEX 1. Introduction ........................ 2 2. Functional Block Diagram .................... 3 3. Overview ........................ 4 4.
  • Page 3 Stinger96 HW User Manual Rev1.0 1. Introduction STINGER96 is a 96Boards IoT Edition compatible (IE extended) base board from Shiratech. The board provides full support for 96Boards IoT Edition (IE) mezzanines via the Low Speed expansion connector, and features LTE connectivity using the Quectel BG96 NB-IoT modem.

  • Page 4: Functional Block Diagram

    Stinger96 HW User Manual Rev1.0 2. Functional Block Diagram Stinger96 incorporates the following key elements: • Mezzanine board connection is enabled via Low Speed Connectors, including 2 UART lines, 2 I2C lines, GPIO A-L, SPI0 and PCM. • The board is connected to a 5V power feed. The STPMIC1 provides additional 3.3V, 2.8V and 1.8V to the various components.
  • Page 5 Stinger96 HW User Manual Rev1.0 • FT234XD-R USB to serial UART interface, powered by the 5V supply from the USB port, and provides UART communication with the CPU. 3. Overview LS Expansion Connector STM32MP157 Debugger JTAG DDR3 Micro USB (USB0 +...

  • Page 6: Additional Information

    Stinger96 HW User Manual Rev1.0 4. Additional Information SoC: ST Microelectronics STM32MP157 ® ® CPU: 32 bit dual-core Arm Cortex -A7 and 32 bit Cortex®-M4 with FPU/MPU GPU: Vivante® - OpenGL® ES 2.0 PMIC: STPMIC1 RAM: DDR3 – 64M x 32bit (2Gbit/256MB) Storage: SLC NAND FLASH –...
  • Page 7 Stinger96 HW User Manual Rev1.0 5. Running The Board For The First Time 1. Download the image file from the downloads at: https://www.shiratech- solutions.com/products/stinger96/ 2. Insert a clean SD card to your PC, then burn the .img file to the SD card using a suitable tool (Win32 Disk Imager for example).
  • Page 8 Stinger96 HW User Manual Rev1.0 5. For other boot options, please refer to the STM32MP157 boot modes table: BOOT2 BOOT1 BOOT0 Mode UART and USB Serial NOR Flash e-MMC NAND Flash Reserved (NoBoot) SD Card UART and USB Serial NAND Flash 6.

  • Page 9: Power Supply

    Stinger96 HW User Manual Rev1.0 6. Power Supply The board draws 5V from the micro USB connectors. The green LED (D15) turns on when the board is powered up. The STPMIC accepts a 5V input voltage, and provides 1.1V, 1.2V, 1.8V, 2.9V and 3.3V voltages to power the various components.
  • Page 10 Stinger96 HW User Manual Rev1.0 7. LTE BG96 Cat-M1/NB1 & EGPRS Module BG96 is a series of LTE Cat-M1/NB1/EGPRS module offering a maximum data rate of 375Kbps downlink and 375Kbps uplink. It features ultra-low power consumption, and provides pin-to-pin compatibility with Quectel LTE module EG91/EG95, Cat NB1 (NB-IoT) module BC95, UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.
  • Page 11 Stinger96 HW User Manual Rev1.0 www.shiratech-solutions.com Page 10 of 21...
  • Page 12 Stinger96 HW User Manual Rev1.0 www.shiratech-solutions.com Page 11 of 21...
  • Page 13 (DFSDM). They also feature standard and advanced communication interfaces. Stinger96 base board has two 1Gbit S43TR16640B-125JBL DDR memories, connected to the CPU module via a 32-bit bus, and a single MT29F8G08ABBCAH4-ITC 8 Gbit NAND Flash memory, connected to the CPU module via 32-bit bus.
  • Page 14 Stinger96 HW User Manual Rev1.0 CPU Speed 650 MHz DDR Memory Capacity 1Gbit DDR Memory Maximum Speed 1066 MHz Flash Memory Capacity 8Gbit USB0 Power (OTG) USB1 Console (UART7) The Low-Speed connector deploys: • 2 UART communication lines • 2 I2c lines •...
  • Page 15 Stinger96 HW User Manual Rev1.0 9. Low-Speed Connector Stinger96 supports a standard 96Boards 40 pin Low-Speed expansion connector with 1.8V logic levels. The connector contains the following interfaces: • UART0 • UART1 • 2 x I2C • • 12 x GPIO •...
  • Page 16 Stinger96 HW User Manual Rev1.0 www.shiratech-solutions.com Page 15 of 21...

  • Page 17: Power And Reset Buttons

    Stinger96 HW User Manual Rev1.0 10. Power and Reset Buttons Pressing the Power button generates low level signal that initiates the PMIC voltage shutdown sequence, followed by the voltage power up sequence (when released). Pressing the Reset button generates low level reset command to the SOC resulting in a soft reset.

  • Page 18: Micro Sd Card Connector

    Stinger96 HW User Manual Rev1.0 11. Micro SD Card Connector Powered by 2.9V power supply and connected to the CPU SDIO lines via voltage translator to support low voltage SD card mode. 12. JTAG Connector 10 pin JTAG header directly connected to the CPU JTAG lines and 1.8V power supply.

  • Page 19: Sim Card Connector

    Stinger96 HW User Manual Rev1.0 13. ST-Link Connector 4 pin ST-Link header directly connected to the CPU. Connected to a 1.8V power supply. 14. SIM Card Connector Directly connected to SIM interface lines in the BG96. Powered, utilized and managed by the BG96 module.
  • Page 20 Stinger96 HW User Manual Rev1.0 15. USB0 + Power USB lines connected to the CPU and power lines provide 5V voltage. 16. USB1 + Console Connected to the CPU through the FT234XD-R which translates USB to UART (UART7). This connection enables the Linux monitor communication with the board.
  • Page 21 Stinger96 HW User Manual Rev1.0 17. IS43TR16640B-125JBL Two DDR memory components are included, each powered by 1.1V power supply, connected to the CPU module via a 32-bit bus. www.shiratech-solutions.com Page 20 of 21...
  • Page 22 Stinger96 HW User Manual Rev1.0 18. MT29F8G08ABBCAH4-ITC 8 Gbit NAND Flash memory, powered by 1.8V power supply, connected to the CPU module via a 32-bit bus. T. +972.3.943.5050 F. +972.3.943.5055 E. info@shiratech-solutions.com 58 Amal St, Kiryat Arie POB 3272, Petach Tikva 4951358, Israel www.shiratech-solutions.com...
