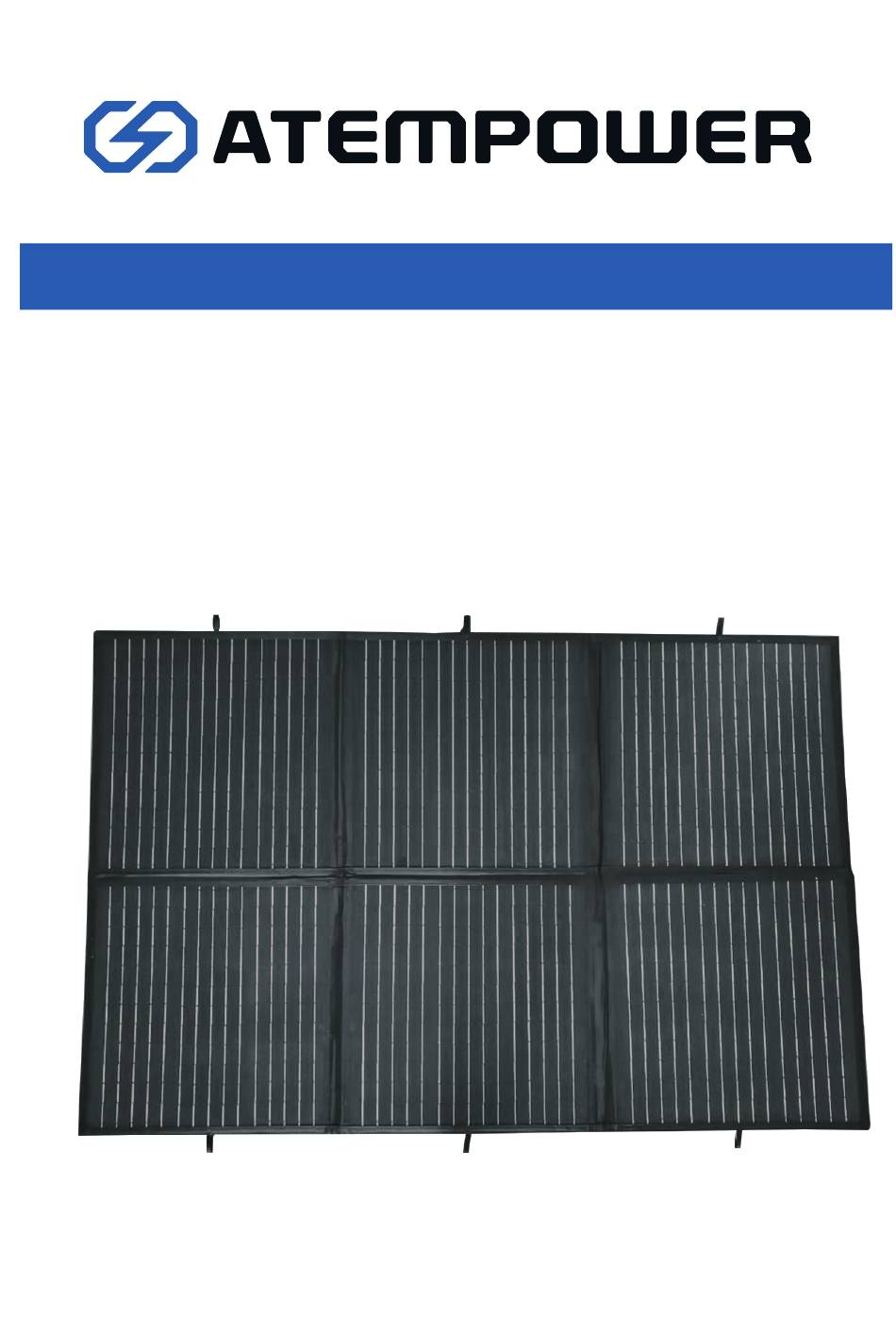

- Page 1 300W Solar Blanket AP300MS-B USER MANUAL...
- Page 2 ABOUT US ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian company with dedication and passion for the R&D of high quality products in the field of renewable energy products, batteries and related accessories. Since the company was founded, we have committed to innovation that aims to make your life infinitely more convenient.
- Page 3 PACKAGE LIST 300W MPPT Controller DIMENSIONS 550mm 1665mm...
- Page 4 CONNECTING YOUR SOLAR PANEL • Connect the Alligator Clips to the battery. • Connect the controller to the battery with Anderson plugs. Use the extension cable if needed. • Connect the solar blanket to the controller with Anderson plugs. Note: When uninstalling, you are required to repeat the steps from last to first. Controller Extension Cable Alligator Clips...
- Page 5 SOLAR BLANKET SPECIFICATIONS 18.2V 16.5A 22.4V 17.7A 10KG 550*550*40 mm 1665*1090*5 mm CONTROLLER SPECIFICATIONS Model CY1220MT-AP Rated Charge Current Rated Discharge Current Rated Voltage 12V/24V auto work MPPT Effciency Max:99% ≥1 5 rated current Over Load, Short Circuit Protection ＜10mA No Load Current Over Voltage Protection 16V;...
- Page 6 INDICATOR STATUS MEANING Solar panel voltage is higher than the light control voltage SOLAR Solar panel voltage is less than the light control voltage Number of indicators steady on indicates battery Any status power BATTERY Battery is nearly or already empty. The left indicator is flashing LOAD Battery voltage is abnormal.
- Page 7 WARRANTY MONTH WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: Any defect in design or manufacture which results in its failure to perform correctly as described. Damage or loss incurred in transit.
