4 ALARMS

The ZAPI MDI-CAN gives indication of the Alarms of the controllers to which it is
connected via CAN-BUS, with a corresponding code.

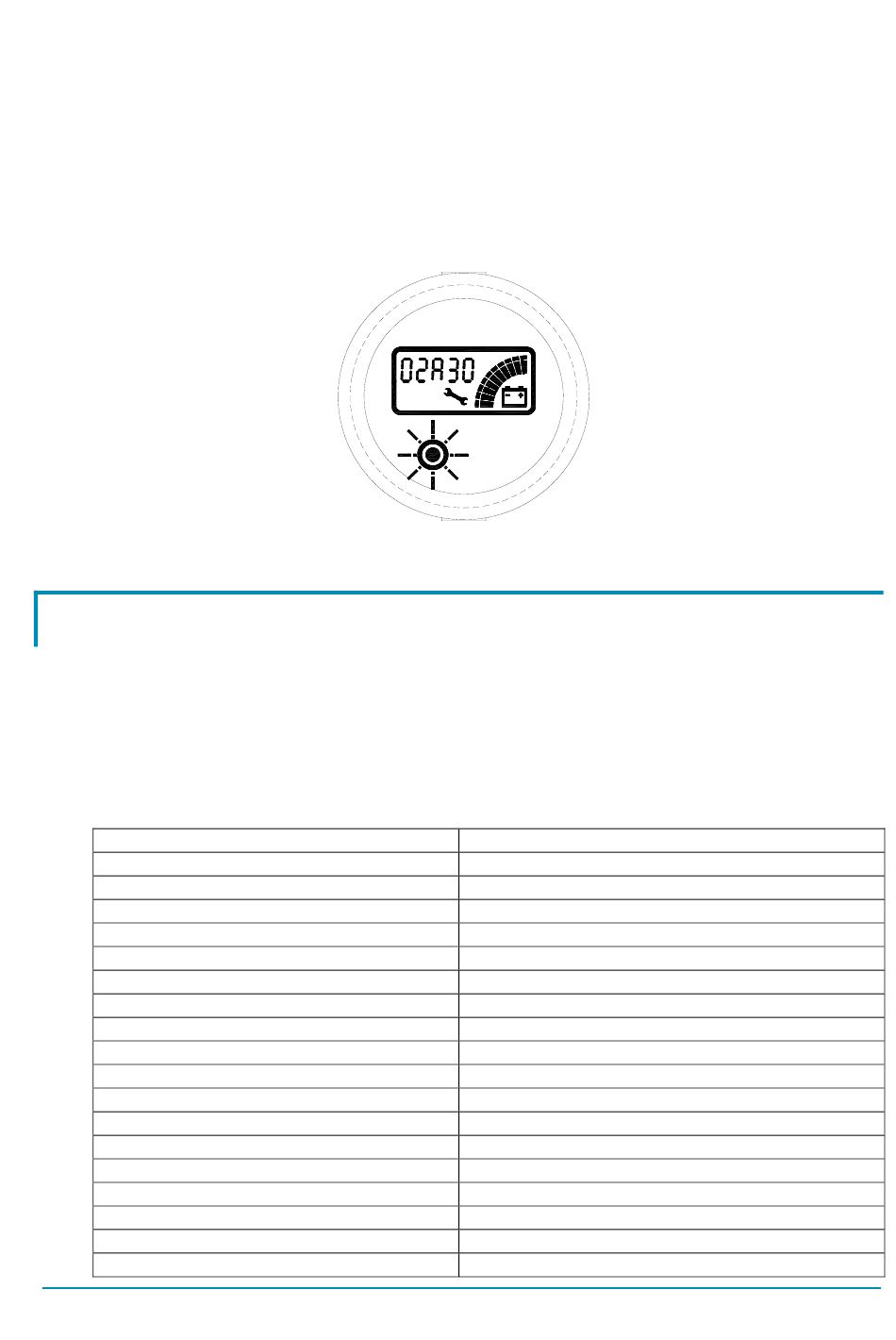

When an Alarm is generated, the Red LED blinks to attract the attention of the
operator. The symbol of Monkey Wrench also appears. The string shown on the
display is XXAYY, where XX and AYY represent respectively the alarmed node
and the alarm code. The alarm code meaning must be present in the controller
user manual.

4.1 Decoding of the alarms displayed on the MDI-CAN

Using the indication given by the MDI-CAN and after reference to the following
table, the operator can solve the problem, if the failure is not serious. It will also
be necessary to refer to the paragraph describeg the Alarms in the Manual of the
relevant controller.
If the Alarm information suggests or indicates a serious problem, the operator will
be able to give useful information to the Service Centre, thereby reducing down
time with relative costs savings.
AEZZP0CB - MDI-CAN - User Manual
A00
A01
A02
A03
A04
A05
A06
A07
A08
A09
A10
A11
A12
A13
A14
A15
A16
A17
A18
NONE
CHOPPER RUNNING
NO COMMUNICATION
UNKNOWN CHOPPER
CONSOLE EEPROM
SERIAL ERROR 2
SERIAL ERROR 1
CHOPPER NOT CONFIG
WATCHDOG
FIELD FF FAILURE
EEPROM DATA KO
EEPROM PAR KO
EEPROM CONF KO
EEPROM KO
EEPROM OFFLINE
LOGIC FAILURE 5
LOGIC FAILURE 4
LOGIC FAILURE 3
LOGIC FAILURE 2
Page - 11/13
