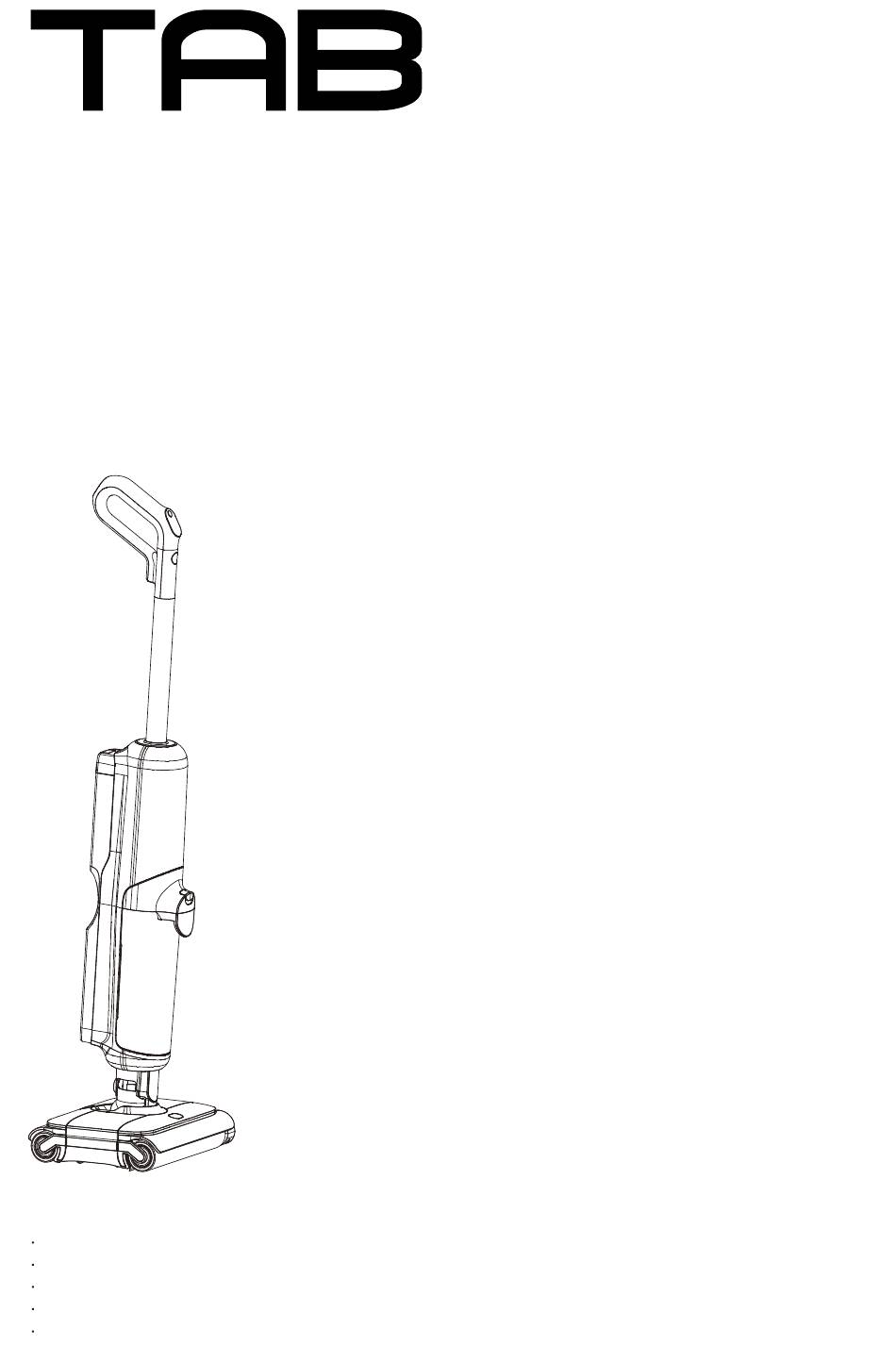

Product User Manual
Model:
T9-Pro
Please read this manual carefully before use
The company reserves the right to interpret the manual
The appearance of the product is subject to the real product
Please keep it properly with the invoice after reading it
In case of product technology or software upgrade, there shall not be prior notice
Advertisement
Related Manuals for Tab T9-Pro
Summary of Contents for Tab T9-Pro
- Page 1 Product User Manual Model: T9-Pro Please read this manual carefully before use The company reserves the right to interpret the manual The appearance of the product is subject to the real product Please keep it properly with the invoice after reading it...
- Page 2 Packing list Accessories of main unit Before using this product, please check whether the package contains the following items. Please contact our customer service for any missing. The pictures are for reference only. Please refer to the real product received. Charging base assembly A x1 Charging base assembly B x1 Screw x4...
-
Page 3: Table Of Contents
Contents Safety instruction 1 Product Introduction 3 Product Installation 4 How to Use 7 Product Maintenance 11 Product Parameters/Description of hazardous substances in the product Failure Recovery Warranty Card/Warranty Terms ... -
Page 4: Safety Instruction
Safety instruction 1. This product is only used on indoor surfaces. It is forbidden to install, charge and use this product outdoors, in bathrooms and around swimming pools. 2.This product may not be used by people with physical, sensory or intellectual disabilities and people without relevant experience and knowledge (including children), unless there is a guardian’s care or guidance to ensure that they can use this product safely. - Page 5 Safety instruction 14. Please clean according to the instructions of the detergent. If a large amount of clean- ing solution is added, more foam will be generated during use, which may penetrate into the motor and cause danger. It is recommended to use the detergent produced by our company and the manufacturer approved by our company, and it must not contain acid, alkali solution or substances harmful to the environment.
-
Page 6: Product Introduction
Product Introduction Main unit Mode button ON/OFF button Voice button Display screen Self-cleaning button Tube Clean-water tank release button Clean-water tank handle Clean-water tank Dirty-water tank release button Dirty-water tank handle Dirty-water tank Rear rolling brush cover Front rolling brush release button cover release button Rear rolling brush cover... -
Page 7: Product Installation
Product Installation 1.Handle installation and disassembly 1.1 Installation： 1.2 Disassembly： Insert the end of the handle assembly Firstly take down the clean-water tank, vertically into the port on the top of the then put a pen-like hard object into the body according to the direction shown in hole on the back of the body to press the figure, and the it is successfully. - Page 8 Product Installation 3. Clean-water tank installation and disassembly 3.1 Installation： 3.2 Disassembly： Firstly, put the bottom of the clean-water Hold the machine body with one hand tank into the opening support position of the and press the button of the clean-water machine body, then gently push the tank with the other hand, and then pull it clean-water tank, and it is successfully...
- Page 9 Product Installation 5.Installation and disassembly of rolling brush cover 5.1 Installation of the rolling brush cover: press down the protrusion corresponding to the notch of the rolling brush cover and it is successfully installed after hearing the click sound (as shown in Figure 1). 5.2 Disassembly of the rolling brush cover: press the center of the button on the front rolling brush cover, the rolling brush cover will automatically pop up and take out the rolling brush cover (as shown in Figure 2).
-
Page 10: How To Use
How to Use * Tip: Please try to complete a complete charging and discharging process before using the product to ensure the accuracy of the electric quantity program. 1.Water injection of clean-water tank 1.1 Hold down the disassembly button of the clean-water tank and remove the clean-water tank (as shown in Figure 1). - Page 11 How to Use 2.Start using 2.1 Step on the upper cover of the floor brush, tilt the machine body to a suitable angle, press the ON/OFF button and start the floor scrubber. At this time, the center of the screen displays the current electric quantity and mode, and the power adjustment indicator belt at the bottom of the screen shows that the machine intelligently adjusts the power and water quantity according to the dirt.
- Page 12 How to Use 5.Water adding and pouring During use, when the clean water in the clean-water tank runs out, the machine will prompt by voice and screen: “The clean-water tank is short of water, please add water”. At this time, it is necessary to turn off the switch and add clean water. When the amount of water in the dirty-water tank reaches the upper limit, the floor scrubber will automatically stop and prompt by voice and screen: “The dirty-water tank is full, please clean the dirty-water tank”.
- Page 13 How to Use 7.Charging and self-cleaning Lift the machine vertically, put it into the charging base, and hear the voice prompt “Charging”, which means that it is in place. 1) Put the floor scrubber into the charging base for charging, and ensure that there is more clean water in the clean-water tank.
-
Page 14: Product Maintenance
Product Care and Maintenance 1.Product care and maintenance 1.1 Please be sure to use the original parts, or you may not enjoy the warranty service. 1.2 If this product is not used for a long time, please unplug the power adapter after being fully charged and put it in a cool and dry place, and do not put it in direct sunlight or humid environment. - Page 15 Product Care and Maintenance 4.Cleaning of rolling brush 4.1 Remove the rolling brush cover firstly, pull up the handle of the left rolling brush and then remove the rolling brush (as shown in Figure 1). 4.2 Use the attached cleaning tools to remove the hair and/or debris from the brush head (as shown in Figure 2).
-
Page 16: Product Parameters/Description Of Hazardous Substances In The Product
Product Parameters Working voltage：25.2V Product dimension：235*288*1100mm Rated power：230W Noise：about 78dBA Battery capacity：4000mAh Adapter input：100-240V~50/60Hz 0.8A Capacity of clean-water tank：about 800ml Adapter output：31V Capacity of dirty-water tank ：about 600ml Charging time：4~4.5h Net weight：about 5.3kg Endurance：smart gear about 35min *The above data comes from our laboratory, and the actual usage may be different according to the change of usage environment, please refer to the actual usage. -
Page 17: Failure Recovery
Failure Recovery Common failure Possible reason Solution Please reinstall to ensure that it is Handle not installed in place in place before use The main unit has no power or Please fully charge the main unit insufficient power before using it The rolling brush is not installed in Main unit does not work place/the rolling brush is entangled with... -
Page 18: Warranty Card/Warranty Terms
Warranty Card Thank you very much for purchasing “TAB” series of smart products! In order to guarantee your legitimate rights and interests, TAB customer center has made a standard service commitment to you, and will wholeheartedly provide you with relevant services when you need it. - Page 19 Warranty Card Warranty principles b. The machine is disassembled, repaired or modified by the user without permission or not maintained by the maintenance department of our company; c. Damage caused by force majeure (such as fire, earthquake and lightning strike, etc.); d.
- Page 20 C e r t i c a t e o f Q u a l i t y Inspector： Qingdao TAB Robot Technology Co., Ltd. Address: No.127, Huizhiqiao Road, High-tech Zone, Qingdao, Shandong Province Version: Version 1 in 2022...
