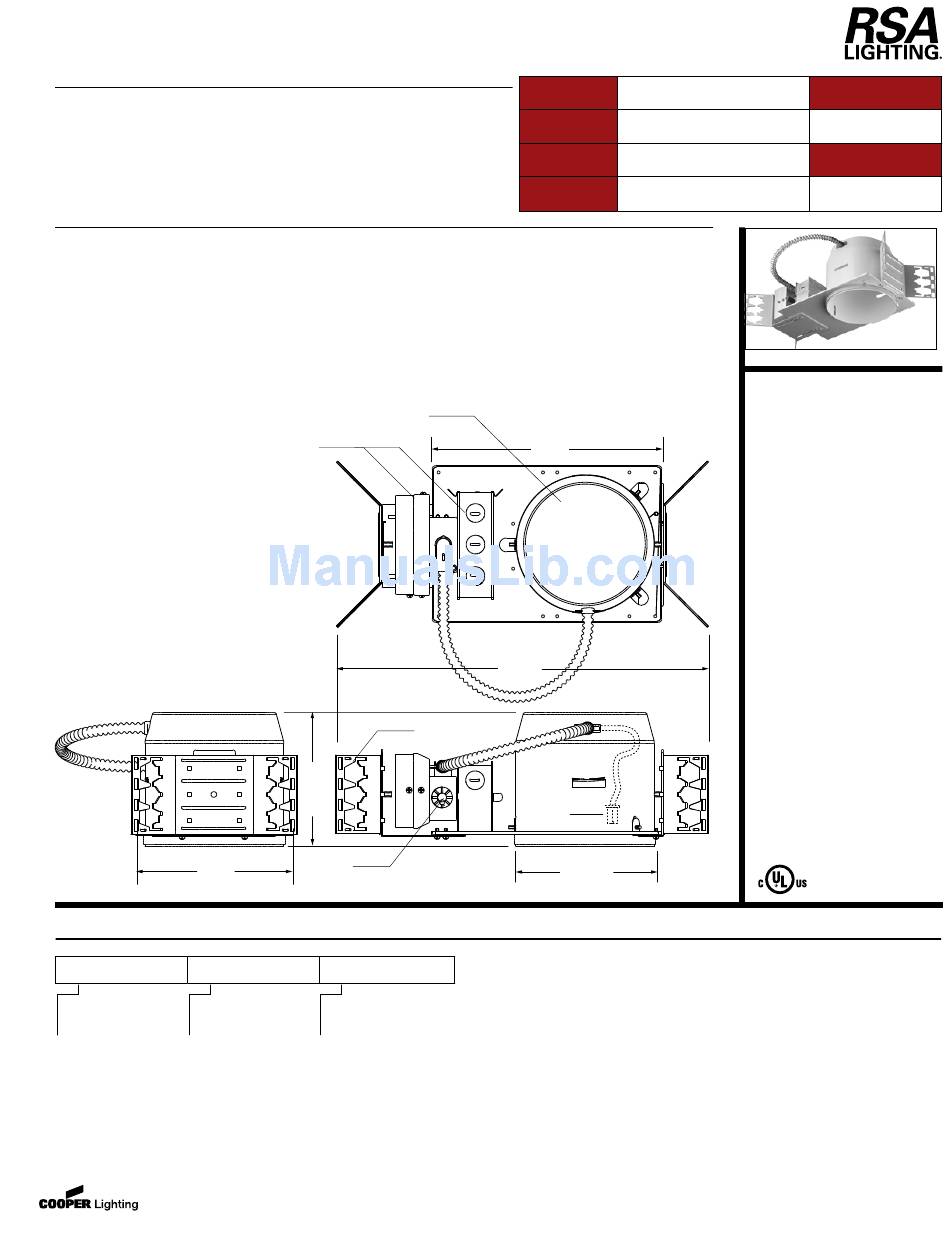

RSA Lighting CDM6NCMH Specification Sheet

Versa 6” recessed housing new construction w/ integral metal halide ballast

Advertisement

Quick Links

DESCRIPTION
New construction housing for Versa Metal Halide Adjustable and Accent
trims (CDMA-T4, CDMA-P2, CDMC-C1, CDMC-P3).
For new construction applications. Insulation must be kept 3" from all
sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS.
Housing is powder coated white. Housing
adjusts in plasterframe to acccommodate
1/2" to 1-1/4" ceiling thickness. Housing
includes slots for trim torsion spring
retainers.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
C ...Electrical
Integral j-box and electronic metal halide
ballast. 120V or 277V input. Junction box
is U.L. listed for through branch wiring.
Includes five 1/2 trade size knockouts.
D ...Lamp
Quick-connect wire connector attached
to ballast for connection to Versa Metal
Halide trims. Trims have quick-connector
wired to lamp socket. For use with Metal
Halide lamps only.
E ...Mounting
Adjustable Butterfly Brackets included
for commercial applications.
7.50"
ORDERING INFORMATION
CDM6NCMH
Housing
Lamp Wattage
CDM6NCMH =
20
=
20 watt metal halide
Versa 6" New Construction
39
=
39 watt metal halide
Housing w/ Integral Metal
70
70 watt metal halide
=
Halide Ballast
www.cooperlighting.com
F....Labels
UL Listed, cUL Lited Damp Location
Ceiling Cut-Out: 6.75"
A
C
E
6.50"
B
Voltage
120
=
120 volts primary
277
=
277 volts primary
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
11.50"
17.50"
D
6.50"
Type
Date
VERSA
6" RECESSED
HOUSING
CDM6NCMH
New Construction
w/ Integral Metal
Halide Ballast
For 20W, 39W or 70W
metal halide trims
rev 072706
