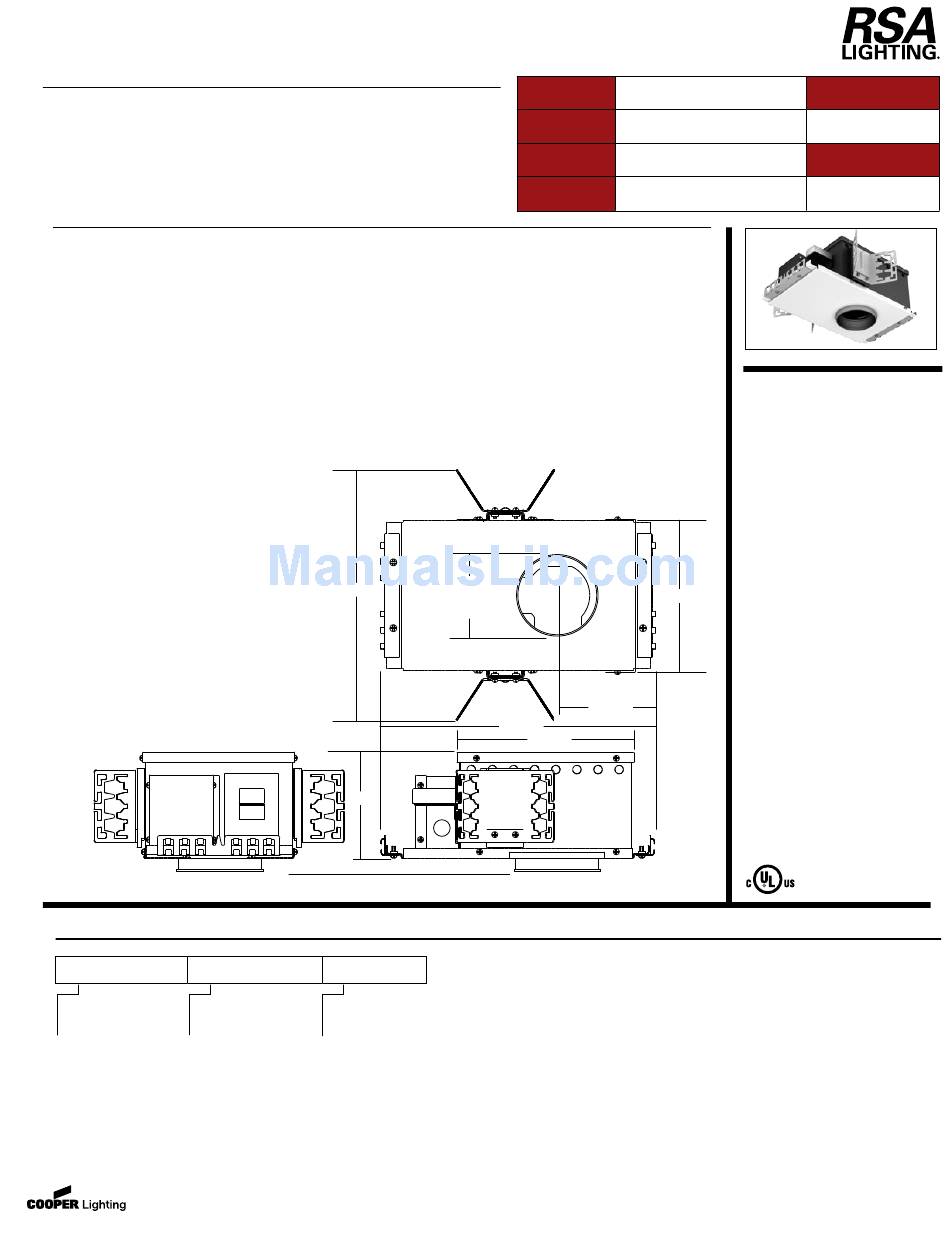

RSA Lighting MINI ACCURUS ACM500MH Specification Sheet

DESCRIPTION

New construction housing for Mini Accurus small aperture round trims
(ACM5001, ACM5002, ACM5003, ACM5004).
For new construction applications. Insulation must be kept 3" from all
sides and at least 1" above the housing.

SPECIFICATION FEATURES

A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1" ceiling thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and metal halide ballast.
120V input. Junction box is U.L. listed for
through branch wiring. Includes five 1/2
trade size knockouts (six knockouts when
magnetic xfmr. is specified)
D ...Lamp
CMH MR16 20W or ES16 BriteSpot 39W
Internal rotation ring with
(not included).
locking adjustment. Provides 360º rotation
of trim and secures original trim position
after relamping. GX10 twist lock socket.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 3.63" dia.

ORDERING INFORMATION

ACM500MH
__
Metal Halide Ballast
Housing
ACM500MH =
20
Mini Accurus
39
New Construction Housing
for Round Trim
w/ Integral Ballast
www.cooperlighting.com
12.00"
4.63"
0.5" - 1.0"
__
Voltage
CMH MR16 20W
= 120 = 120 volts primary
ES16 BriteSpot 39W 277
= = 277 volts primary*
* Consult factory for 277V ballast availability.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling
Cut-Out
3.63"dia.
4.63"
13.00"
8.18"
Type
Date
ACCURUS
ACM500MH
New Construction
for Round Trim
FOR CMH MR16 20W
or ES16 BriteSpot 39W
7.25"
MINI
Housing
rev. 091806
