HORI Split Pad Pro - Attachment Set Manual

How to Connect

Handheld Mode

TV Mode

• Do not touch the Left Analog Stick / Right Analog Stick or any other button when connecting the USB plug or attaching the Split Pad Pro.


• This product may not function properly if connected via a USB hub.


Troubleshooting

The controller is not functioning properly

• Remove controller from the Nintendo Switch™ console and reattach it.
• Make sure that your Nintendo Switch™ is updated to the latest system firmware.


1. From the Home Menu select 'Settings'.
2. Select 'System' and then 'System Update' to update to the latest system firmware:


The analog sticks are not responding correctly

Disconnect and connect the controller from the Nintendo Switch or Nintendo Switch Dock and turn ON the Nintendo Switch. Once Nintendo Switch is ON, rotate the analog stick 2~3 times. The process above will only work when this product is attached to the Nintendo Switch™ console and the power supply is on.

* This product is not compatible with the "Calibrate Control Sticks" option in the Nintendo Switch™ HOME Menu.

How to Remove

Before using this product

• This product cannot be used in Tabletop Mode, or as a wireless controller.
• This product does not support the following features. Gyroscope, Motion IR Camera, Accelerometer, Player LED, HD Rumble, HOME Button Notification LED, NFC
• This product cannot be used with certain accessories made specifically for Joy-Con™ controllers (such as the Joy-Con Grip and Joy-Con Charging Grip) due to this product's shape and size. Please do not forcibly install this product into any accessories as malfunction or damage may occur.

To play in Tabletop Mode, please use one of our following products.

Compatible HORI Products

USB Multiport Playstand for Nintendo Switch
https://stores.horiusa.com/multiport-usb-playstandfor-nintendo-switch/

Dual USB Playstand for Nintendo Switch
https://stores.horiusa.com/dual-usb-playstandfor-nintendo-switch-lite/

For more information please visit this website
https://stores.horiusa.com/split-pad-proattachment-set-for-nintendo-switch/

Detailed information

Platform

Nintendo Switch™ / PC (XInput)

When using this product on a PC, the headphone jack cannot be used.

	Nintendo Switch
	PC

Included

Controller (L/R) ×1

Split Pad Pro attachment ×1

Instruction manual ×1

Layout

Assign Mode

Assign mode allows you to assign button functions to the FL and FR buttons.

Assignable buttons

FL Button

L Button
ZL Button
L Stick Button
Control Pad (UP, DOWN, LEFT or RIGHT)

FR Button

R Button
ZR Button
R Stick Button
A Button
B Button
X Button
Y Button

* Please use the ASSIGN Button (L) when setting button functions to FL Button.
Please use the ASSIGN Button (R) when setting button function to FR Button.

How to assign

Assign OFF

Turbo Functions

Turbo Mode

Button is set to continuously activate the button function as long as you press the button.

Turbo Hold

Continuously activates the button function without pressing the button.

TURBO LED

* The Turbo LED (green) will lash at a rate corresponding to the Turbo speed.

The following buttons can be set to Turbo or Turbo Hold mode:

L Button / ZL Button / L Stick Button
Control Pad (UP, DOWN, LEFT or RIGHT) *1
FL Button *2

*1 Control Pad (UP, DOWN, LEFT or RIGHT) is not compatible with the Turbo hold mode, and can only be used to set Turbo mode.
*2 The FL Button will function only when a button function is assigned to it.

R Button / ZR Button / R Stick Button
A Button / B Button / X Button / Y Button
FR Bottun *3

*3 The FR Button will function only when a button function is assigned to it.

* Please use the TURBO Button (L) when setting button functions to (L).
Please use the TURBO Button (R) when setting button function to (R).

How to set up Turbo Function

1. Turbo Mode ON


2. Turbo Hold ON


3. Turbo OFF


Turbo OFF (All buttons)

* Please use the TURBO Button (L) and the - Button when adjusting the Turbo Speed on (L).
Please use the TURBO Button (R) and the + Button when adjusting the Turbo Speed on (R).

How to change Turbo Speed

You can adjust the Turbo mode to 3 different speeds.

Decrease the speed by one level

Increase the speed by one level

* Please use the TURBO Button (L) and the Left Stick when adjusting the Turbo Speed on (L).
Please use the TURBO Button (R) and the Right Stick when adjusting the Turbo Speed on (R).

* When setting Turbo speed, Turbo LED (green) will flash at a rate corresponding to the set Turbo speed.
* Turbo speed is set to 10 times/second by default.
* Analog Sticks must be returned to the neutral position before changing to the next turbo speed.

Headphone/Mic Jack

(Cannot be used on PC.)

Please turn down the volume on the Nintendo Switch before connecting a headset, as the sudden high volume may cause discomfort to your ears.

Do not use high volume settings for an extended period of time to avoid hearing loss.

* When connecting a headset directly to this product, voice chat can be used if the software supports in-game voice chat function.
* If the software does not support voice chat function, our "Hori Gaming Headset for Nintendo Switch" series can be used together with the Nintendo Switch smartphone app "Nintendo Switch Online" to use voice chat.
* Please check the instruction manual or contact the software publisher to see if voice chat is supported in the game.

Main Features

Controller (L/R)

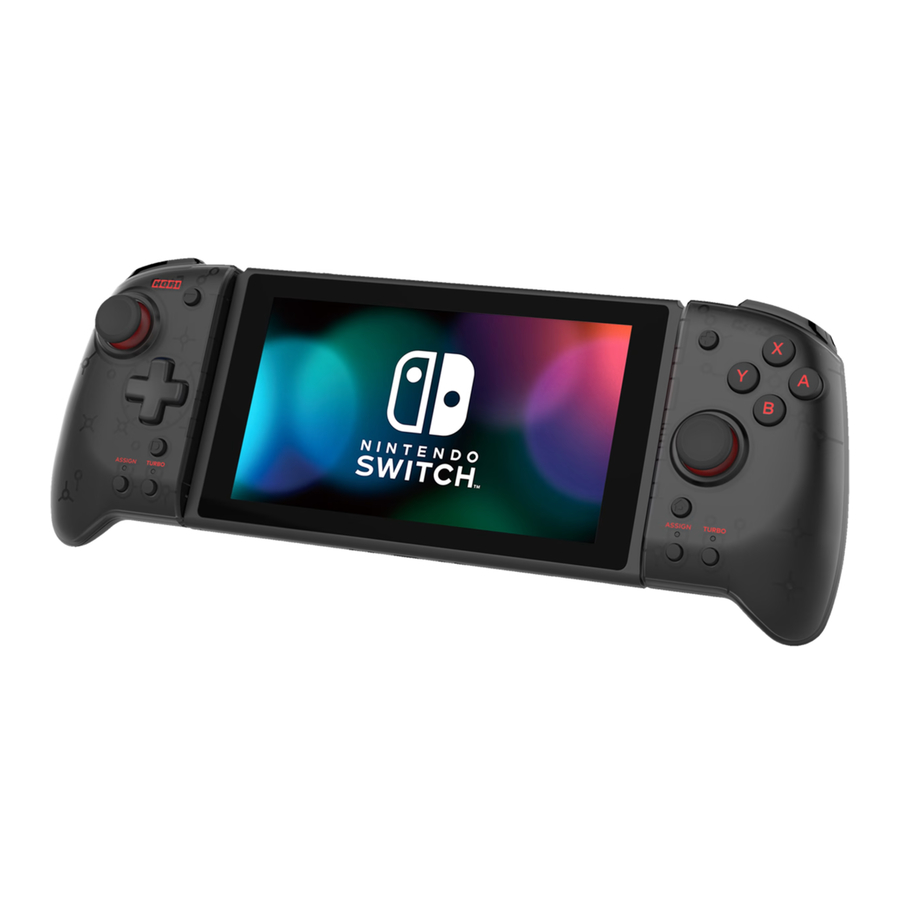

Split Pad Pro Attachment

To Parent/Guardian, Please read carefully

• This product contains small parts. Keep away from children under 3 years old.
• Keep this product away from small children or infants. Seek medical attention immediately if any small parts are swallowed.
• Long cord. Strangulation hazard.
• Keep the product away from dusty or humid areas.
• Do not use this product if it has been damaged or modified.
• Do not get this product wet. This may cause an electric shock or malfunction.
• Do not place this product near heat sources or leave under direct sunlight for an extended period. Overheating may cause malfunction.
• Do not touch the metal parts of the USB plug.
• Do not apply strong impact or weight on the product.
• Do not pull roughly or bend the cable of the product.
• Do not disassemble, modify or attempt to repair this product.
• If product needs cleaning, use only a soft dry cloth. Do not use any chemical agents like benzene or thinner.
• Do not use this product for anything other than its intended purpose. We are not responsible for any accidents or damages in the event of use other than the intended purpose.

The normal function of the product may be disturbed by strong electro-magnetic interference.
If so, simply reset the product to resume normal operation by following the instruction manual (How to connect). In case the function does not resume, please relocate to an area which does not have electro-magnetic interference to use the product.

The wires are not to be inserted into socket-outlets.
The packaging must be retained since it contains important information.
