Connecting MobileMapper 10

with FAST Survey to LTI

TruPulse 360B

By:

Mark Silver,

Igage Mapping Corporation

+1 801-412-0011

Date: 8 September, 2012

1. Make sure your batteries in the TP360

are relatively new. Trigger the laser

to turn it on.

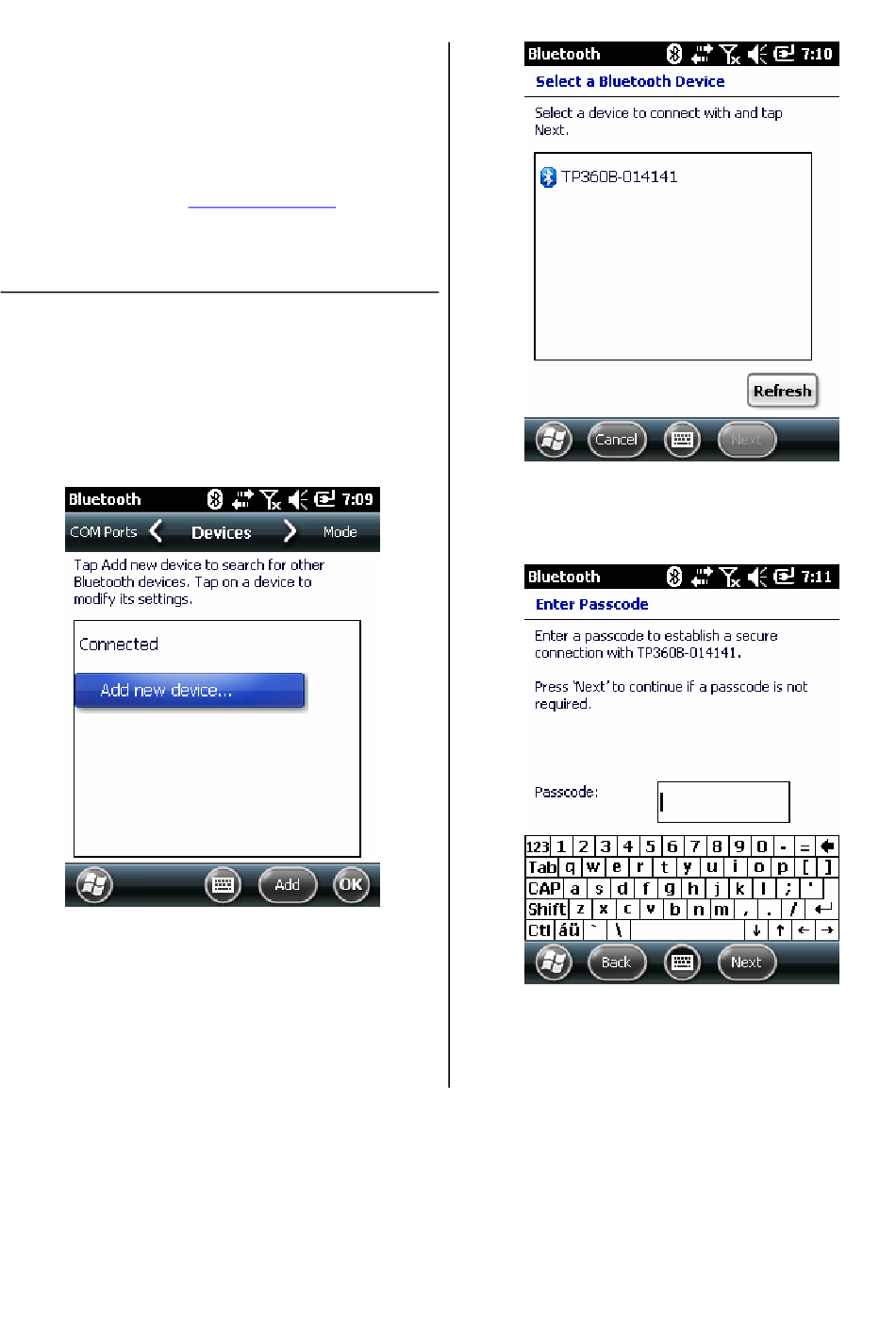

2. On the MM1, select Start (the

windows button in lower left corner),

then Settings, then Bluetooth:

3. Click on "Add new device...", after a

while (15 seconds) you will see:

ms@igage.com

The serial number of your TruePulse

will obviously be different.

4. Highlight your TP360B, then click on

The passcode is "1111", enter it and

press Next. A status note will be

displayed for a few seconds and then

disappear.

Need help?

Do you have a question about the MobileMapper 10 and is the answer not in the manual?

Page 1 Connecting MobileMapper 10 with FAST Survey to LTI TruPulse 360B Mark Silver, ms@igage.com Igage Mapping Corporation +1 801-412-0011 Date: 8 September, 2012 1. Make sure your batteries in the TP360 are relatively new. Trigger the laser to turn it on.
Page 2 5. You will now see: click on “New Outgoing Port”: 6. Click on “COM Ports” at the top of the 7. Highlight the TP360B, then press screen: “Next”: Choose “COM7” (we don”t know why, just do it), check “Secure Connection” and click on Finish.
Page 3 9. Now start FAST Survey, enter a job and navigate to the “Equip” tab: Also select “Equip: 8. Tolerances” and insure that the HRMS and VRMS tolerances are large enough you will 10.Click on “9. Peripherals”, then select be able to store points. the “Laser”...
Page 4 13.To store an offset point, click on the and the offset point (the point where “O” and select the “Laser” tab: the laser is aimed, will be stored. 16.You can then click on “Read Laser” again and store the next point. 17.Alternatively, if you have a bunch of points to store, you can click “Multiread Laser”...
