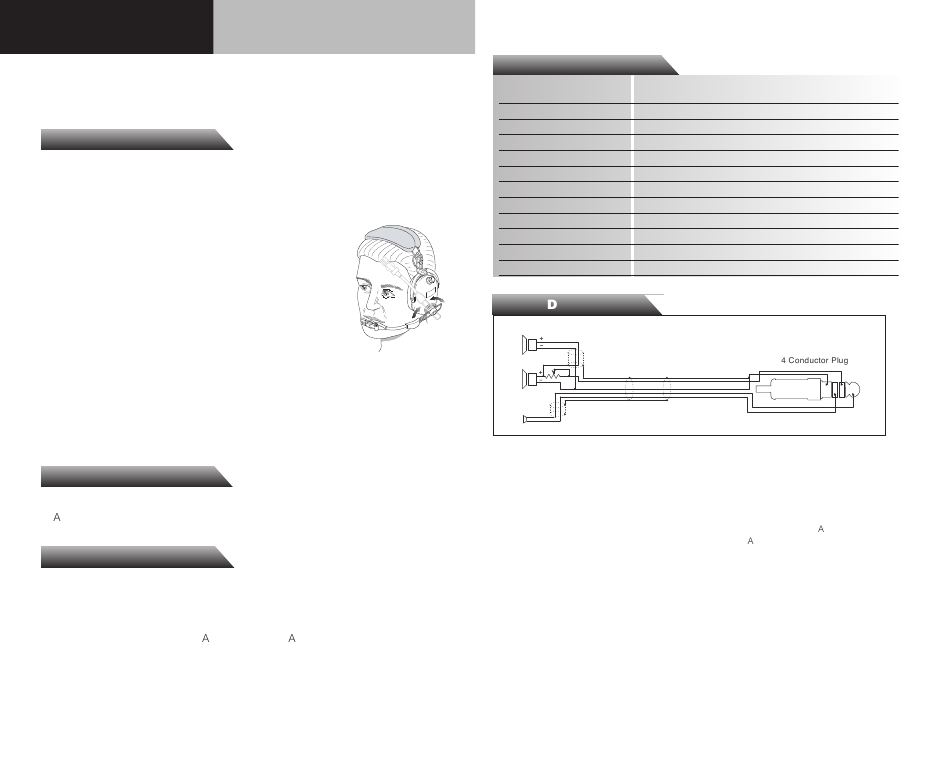

Flightcom E-13 User Manual page 2

E - 13 Passive
High durability headset, designed for use with military-style low
impedance interphone systems.
Fitting Instructions
Properly fitting Flightcom's E-13 headset to each user's head is crucial to proper
performance. The headpad should fit comfortably on top of the head without a gap
or space between the head and headpad. The headset should be centered on the
head and the ear seals should comfortably cover the ears without being placed too
far forward on the jawbone or face.
• The microphone should be no more than 1/8" from the
mouth to ensure clarity and peak performance.
• To increase the length of the headband, loosen the nuts
found on each side of the headband; slide the domes in a
downward direction. To decrease the size of the headband,
loosen the nuts found on each side of the headband; slide
the domes in an upward direction. Tighten the headband
nuts when the headband is properly sized.
• To change the boom from left or right dress, loosen the
knurled knob located at the top of the microphone boom.
Rotate the boom over the top of the headset to desired position; tighten the
knurled knob to secure the boom. Caution: rotating the boom in the wrong
direction may cause non-warranty damage to the boom wiring.
• Volume control is located at the top of the dome on the boom side of the headset;
rotate clockwise to increase headset volume.
Installation
• Insert the headset plug into your aircraft comm panel jack.
• djust the headset size for proper fit and comfort.
Maintenance & Support
Ear seal replacement is recommended on at least an annual basis. To order
replacement ear seals and other common parts, please visit our web site at
http://www.flightcom.net/site/military/accessories.php
For warranty or repair services, please contact Flightcom Corporation at 800-432-
4342 to obtain a Return Material uthorization (RM ) number prior to sending the
headset to our service center.
Aircrew/Maintenance
Specifications
Microphone M-87, 5 ohm dynamic microphone
Speakers 32 ohm
Plug U-174/U style plug, 4 conductor
Mic Cable Chem-suit quick disconnect
Cord 6 conductor, twisted shielded, coiled comm. cable
Ear Seals Protein Leather covered dual density foam
Headpad Washable fleece comfort headpad
Color Tan domes, chrome steel headband and stirrups
Noise Reduction Rating 21dB
Volume Control Mono headset, single volume control
Warranty Two-year warranty
NSN Number 5965-01-521-3224
Wiring iagram
Right
Speakers
Left
Mic.
Two-Year Limited Warranty to Original Purchaser
Flightcom Corporation warrants to the original purchaser of this product that it will be free
from defects in materials and workmanship, under normal and proper use, for the period
of two years from date of purchase. Flightcom Corporation will repair or replace, at its sole
option, any parts showing factory defects during this warranty period, subject to the
following provisions. This warranty applies only to a new product, which has been sold
through authorized channels of distribution and registered for warranty.
warranty must be performed by Flightcom Corporation.
shipped to our address and freight prepaid. The purchaser voids this warranty if he, she or
others attempt to repair, service or alter the product in any way. This warranty does not apply
in the event of accident, abuse, improper installation, unauthorized repair, tampering,
modification, fire, flood, collision or other damage from external sources, including damage
which is caused by user replaceable parts (leaking batteries, etc.). This warranty does not
extend to any other equipment or aircraft to which this product may be attached or
connected. The foregoing is your sole remedy for failure in service or defect. Flightcom
Corporation shall not be liable under this or any implied warranty for incidental or
consequential damages, nor for any installation or removal costs or other service fees.
This warranty is in lieu of all other warranties, express or implied, including the warranty
of merchantability or fitness for use, which are hereby excluded. To the extent that this
exclusion is not legally enforceable, the duration of such implied warranties shall be limited
to two years from date of purchase. No suit for breach of express or implied warranty may
be brought after two years from date of purchase.
ll work under
ll returned products must be
