RS-990
LIBERTY
®
SERIES 1000
Valve-regulated Lead Acid Batteries
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIBERTY 1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for C&D Technologies LIBERTY 1000 Series

Summary of Contents for C&D Technologies LIBERTY 1000 Series

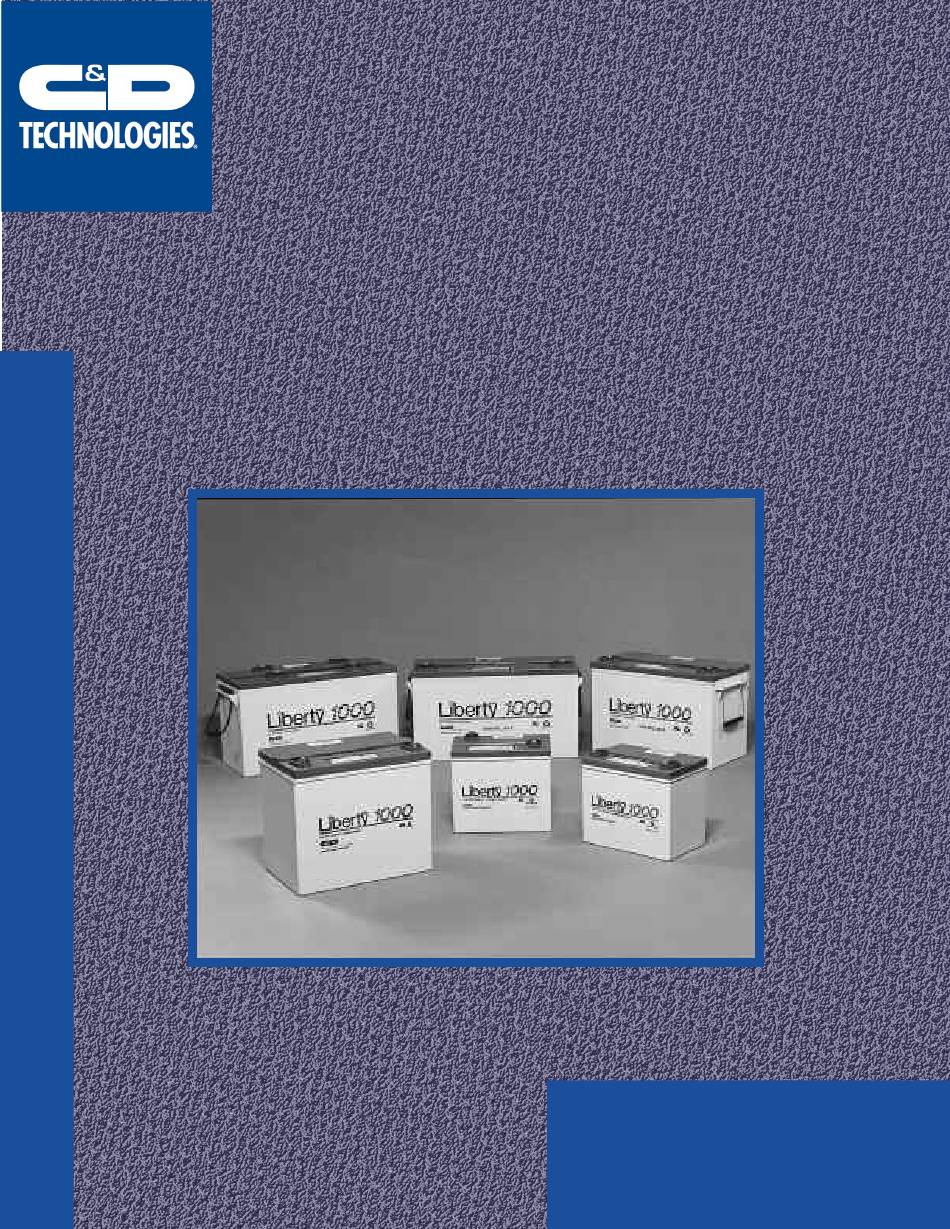

  • Page 1 RS-990 LIBERTY ® SERIES 1000 Valve-regulated Lead Acid Batteries Installation and Operating Instructions...
  • Page 2 SAFETY PRECAUTIONS Only authorized and trained personnel familiar with standby battery installation, preparation, charging and maintenance should be permitted access to the battery. WARNING SHOCK HAZARD - DO NOT TOUCH UN-INSULATED BATTERY, CONNECTORS OR TERMINALS. BE SURE TO DISCHARGE STATIC ELECTRICITY FROM TOOLS AND TECHNICIAN BY TOUCHING A GROUNDED SURFACE IN THE VICINITY OF THE BATTERIES BUT AWAY FROM THE CELLS AND FLAME ARRESTERS.
  • Page 3 FOR ADDITIONAL INFORMATION CONTACT: C&D Technologies, Inc. 1400 Union Meeting Road, PO Box 3053 Blue Bell, PA 19422-0858 215-619-2700 or 1-800-543-8630, Fax 215-619-7899 www.cdtechno.com FOR TECHNICAL or WARRANTY ASSISTANCE CONTACT: Technical Service Department located at: 1400 Union Meeting Road Blue Bell, PA 19422 215-619-2700 or 1-800-543-8630, Fax 215-619-7842 WARRANTY NOTICE This instruction manual is not a warranty.

  • Page 4: Introduction

    INTRODUCTION The batteries referenced in this document are valve-regulated lead acid Liberty Series 1000 ® They are constructed with pasted lead calcium plates with an absorbent glass mat and are valve-regulated. They are designed to provide long, reliable service life with minimal maintenance.
  • Page 5 RECOMMENDED TECHNICAL REFERENCES AND EXPERTISE These instructions assume a certain level of competence by the installer/user. The following recommended practices and codes contain relevant information, and should be consulted for safe handling, installation, testing and maintaining standby batteries. Applicable state and local codes must be followed.

  • Page 6: Table Of Contents

    LIBERTY SERIES 1000 VALVE-REGULATED (SEALED) LEAD ACID BATTERIES INSTALLATION AND OPERATING INSTRUCTIONS TABLE OF CONTENTS PAGE INTRODUCTION..........2 Recombination: a more efficient design Recommended Practices, Technical Sources PART 1...
  • Page 7 SECTION 2 - BATTERY OPERATION ......18 Float charging Equalizing charge Over-voltage Voltmeter calibration SECTION 3 - GENERAL INFORMATION AND MAINTENANCE.

  • Page 8: Receiving And Installation

    PART 1 RECEIVING AND INSTALLATION SECTION 1 - RECEIVING 1.1 General Information and Precautions This battery is designed for industrial use only and is not intended for application in vehicular starting, lighting, and ignition, and/or operation of portable tools and appliances. Use only in accordance with manufacturer’s written instructions.

  • Page 9: Section 2 - Storage And Shelf Life

    nent packing list. This verified list should show both the name of the packer, as well as the quantities of items checked off by the receiver. Send the list to: C&D Technologies, Inc. Attn.: Customer Service 1400 Union Meeting Road Blue Bell, PA 19422 SECTION 2 - STORAGE and SHELF LIFE 2.1 Storage of VRLA (valve regulated lead acid) Batteries...

  • Page 10: Section 3 - Installation And Assembly

    acid batteries are warranted against defects in materials or manufac- turing or both. To keep the warranty in effect, you must place the units on charge by the date stamped on the shipping carton when stored at 77°F (25°C). If storage beyond this time is required or storage temper- ature is in excess of 77°F (25°C), monitor battery voltage at monthly intervals, if possible.
  • Page 11 TABLE 2 - BATTERY SPECIFICATIONS (Characteristics subject to change without notice. Refer to current specifications 12-373) Model LS 12-25* LS 6-50* LS 12-55 LS 12-80 Nominal voltage 12 Volts 6 Volts 12 Volts 12 Volts Number of cells in 6/unit 3/unit 6/unit 6/unit...

  • Page 12: Ventilation

    TABLE 2 (CONTINUED) Model LS 12-100 LS 6-200 LS 4-300 LS 2-600 Nominal voltage 12 Volts 6 Volts 4 Volts 2 Volts Number of cells in 6/unit 3/unit 2/unit 1/unit module Rated 8 hr. 100 Ah 200 Ah 300 Ah 600 Ah capacity (Ampere- hours to 1.75 Vpc)

  • Page 13: Modular Rack Assembly

    VRLA batteries when subjected to extreme overcharge (above the recombinant ability of the cell) can release hydrogen gas at a maximum rate of 0.000269 cubic feet per minute per ampere of charging current at 77°F (25°C) at atmospheric pressure. 3.3 Rack Assemblies Liberty Series 1000 batteries may be installed in a variety of mounting assemblies •...

  • Page 14: Section 4 - Electrical Connections

    SECTION 4 - ELECTRICAL CONNECTIONS WARNING • Always use protective insulating equipment, such as gloves, shoes and eye and face protection. Wrenches and other tools must be insulated. • Observe local, state, and national electric codes at all times. • Always work with the battery ungrounded. Battery ground connections, if required, should be made last.

  • Page 15: Connecting And Torquing Battery Terminal Posts

    CAUTION Do not use steel brushes, steel wool, sandpaper or emery cloth to clean surfaces, as these will damage the plating. Do not use cleaning solvents. Solvents can cause crazing or cracking of the plastic cell containers or covers. Use of solvents will void the warranty.

  • Page 16: Checking Connection Integrity

    CAUTION Use extreme care when installing connectors; maintain a firm grasp on each connector as it is being installed, to prevent it from dropping and potentially causing a short circuit. Note: Over-torquing can damage the post seal causing electrolyte leakage. 4.4 Checking connection integrity •...
  • Page 17 resistance for each battery. A wide variation in circuit resistance can result in unbalanced discharging and charging of cells. As a consequence this can produce unequal float voltages of the connected cells and individual strings can sustain a loss of performance and capacity, resulting in higher loads on the other parallel strings with lower cable (circuit) resistance.

  • Page 18: Charging And Operation Of Battery

    PART 2 CHARGING AND OPERATION OF BATTERY SECTION 1 - CHARGING 1.1 General Information and Precautions To safely charge the Liberty Series 1000 batteries and avoid damaging the battery and/or connected equipment, observe the following: • Use only direct current for charging. AC ripple current from charger must not exceed 5 percent of the 8-hour (Ampere-hour) rating of the battery.

  • Page 19: Constant Voltage Charging

    TABLE 3 CHARGE VOLTAGES FOR LIBERTY SERIES 1000 CELLS CHARGE VOLTAGES AT 77°F (25°C) Cell Type Open Minimum Float Voltage Initial Charge Typical Charging Circuit Cell (Vpc) Voltage (Vpc) Time for Initial (Vpc) Voltage (Vpc) Charge All Liberty 2.15 2.20 2.26 +/- 0.01 2.33 +/- 0.02 12 - 16 Hours...

  • Page 20: Initial Charge Records

    minimum of 72 hours before any load is placed on the system. The battery is now considered fully charged and is ready for either initial acceptance testing or regular service. Use only direct current for charging. AC ripple current from charger must not exceed 5 percent of the 8-hour (Ampere-hour) rating of the battery.

  • Page 21: Equalizing Charge

    For optimum service, adjust the power supply to the float voltages shown in Table 3. If the power supply is intermittent or more frequent discharges are anticipated, use a higher value recommended voltage setting. Note: For locations that exhibit frequent temperature variations it is recommended that temperature compensated rectifiers be used that adjust the voltage in accordance with sub-sections 3.4 and 3.5 of Section 3.

  • Page 22: Voltmeter Calibration

    To avoid over-voltage, periodically check battery voltage with a calibrated digital voltmeter. If an over-voltage is recorded, check and readjust the rectifier and/or panel meter calibration as necessary. Place the battery at the recommended float charging voltage as soon as possible.

  • Page 23: Capacity And Testing

    3.2 Capacity and testing Batteries are rated in Ampere-hours or kiloWatts on their ability to deliver a certain number of amperes or power, respectively, to the load for a specified amount of time before cell voltages drop to a final design potential.

  • Page 24: Effects Of Temperature

    When the voltages of individual cells are lower than normal, it is possible to conclude that insufficient charging has occurred. The following are possible causes of cell voltage variations: • Panel voltmeter reading high - This results in a low float voltage. Re-calibrate the panel voltmeter.

  • Page 25: High Ambient Temperature

    If continuous adjustment of the battery plant charger voltage relative to ambient temperature is impractical, it is recommended the appropriate fixed float voltage setting of Table 4 is used. At temperatures below 77°F (25°C), battery capacity will be reduced by approximately 0.5 percent per degree Fahrenheit. Caution must be exercised when operating or storing batteries at low temperature because of the possibility of electrolyte freezing.

  • Page 26: Cleaning Cell Covers

    3.6 Cleaning cell covers • Cell covers can be dusted with a clean cloth or clean dry paintbrush. • Cell covers may also be cleaned with clear water and a small amount of baking soda and dried after cleaning. • If residual acid appears on the cover surfaces it may be neutralized with a solution of one pound baking soda and one gallon of clear water.
  • Page 27 completely recharge the battery and take a set of voltage readings, recording them for future reference if the readings are satisfactory. Provide remedial action or an equalize charge if necessary. Do not discharge a battery below the design final voltage. Remedial action may be required if the battery was discharged below its final design voltage.

  • Page 28: Trouble-Shooting And Avoiding Battery Degradation And Recognizing Problems

    PART 3 TROUBLE-SHOOTING, AVOIDING BATTERY DEGRADATION AND RECOGNIZING PROBLEMS SECTION 1 - HOW TO AVOID BATTERY DEGRADATION 1.1 General Information and Precautions Properly maintained and charged, Liberty Series 1000 batteries will provide many years of trouble-free service. However, despite their inherent dependability, failure to operate and maintain them correctly can lead to damage, shortened service life or cause loss of service.

  • Page 29: Low Float Voltage And Sulfation

    CAUTION RECHARGE BATTERIES AS SOON AS POSSIBLE AFTER AN EMERGENCY DISCHARGE. Failure to recharge batteries immediately after emergency discharge may lead to sulfation or, in the case of deep discharge, to complete battery failure due to hydration. If recharging at equalize voltage is impractical, recharge at float voltage.

  • Page 30: Parallel Battery Strings

    the affected cells may become sulfated and require corrective action. 1.6 Parallel battery strings When strings of batteries of equal voltage are connected in parallel, the overall capacity is equal to the sum of the capacities of the individual strings. When paralleling valve-regulated batteries is necessary, the external circuit resistance must be matched for each battery.

  • Page 31: Appendix A - Material Safety Data Sheets

    14-312...
  • Page 33 14-312...
  • Page 34 14-332...

  • Page 37: Appendix B - Warranty Provisions

    Appendix B - WARRANTY PROVISIONS FOR LIBERTY SERIES 1000 BATTERIES C&D Technologies valve regulated lead-acid batteries are warranted against defects in materials or manufacturing or both from C&D factory when operated in full float and when stored at 77°F (25°C). Refer to specific warranty certificates for your Liberty 1000 model for float or UPS operation and for storage at other temperatures.

  • Page 38: Appendix C - Valve Regulated Lead Acid Battery And

    Appendix C - VALVE-REGULATED LEAD ACID BATTERY AND CHARGER INSPECTION REPORT A sample inspection report form is provided in the following pages of this manual and is referred to as RS-1511. This form should be used to record appropriate battery, charger and related system information at timely events such as: •...
  • Page 39 TECHNICAL SERVICES DEPARTMENT Inspection by:___________________ 1400 UNION MEETING ROAD P o w e r S o l u t i o n s BLUE BELL, PA 19422 Date of Inspection:_______________ LIBERTY SERIES 1000 BATTERY AND CHARGER ® A Division of C&D Technologies, Inc. INSPECTION REPORT User’s Name: Authorized Site Contact:...
  • Page 40 BATTERY CHARGE STATUS OPEN CIRCUIT FLOAT EQUALIZE BATTERY BUS VOLTAGE __________Vdc __________Vdc _________Vdc Location: Model: Date: Internal Cell Internal Cell Cell Volts Serial Connection Conductance Cell Volts Serial Connection Conductance +2.000 Resistance /Impedance/ +2.000 Resistance /Impedance/ Resistance Resistance RS-1511...
  • Page 41 NOTES...
  • Page 42 NOTES...
  • Page 43 OFFICES MANUFACTURING C&D WORLD HEADQUARTERS UNITED STATES 200 Precision Road Horsham, Pennsylvania 19044 USA C&D Attica Manufacturing 200 W. Main Street C&D UNITED KINGDOM Attica, Indiana 47918-0279 USA 25 Earlstrees Road Corby, NN17 4AZ, UK MEXICO CANADA C&D Reynosa Manufacturing Ave. C&D Mississauga Sales Office Industrial del Norte S/N Lote 6, 6665 Millcreek Dr.
