- Page 1 Installation and operating instruction Analogue module EM3/3 83295402 1/2019-01...
-
Page 2: Table Of Contents
Installation and operating instruction Analogue module EM3/3 User instructions ...................... 3 1.1 Target group ........................ 3 1.2 Symbols .......................... 3 1.3 Guarantee and Liability .................... 4 Safety ............................. 5 2.1 Designated application .................... 5 2.2 Safety measures ...................... 5 2.2.1 Electrical connection .................... 5 2.2.2 ... -
Page 3: User Instructions
Installation and operating instruction Analogue module EM3/3 1 User instructions 1 User instructions This manual forms part of the equipment and must be kept on site. Translation of original Carefully read the manual prior to working on the unit. operating instructions 1.1 Target group... -
Page 4: Guarantee And Liability
Weishaupt parts, force majeure, the installation of additional components, which have not been tested with the unit. -
Page 5: Safety

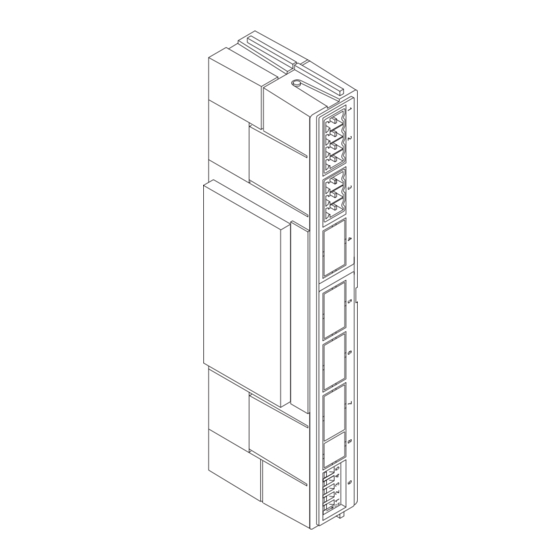

Installation and operating instruction Analogue module EM3/3 2 Safety 2 Safety 2.1 Designated application The analogue module EM3/3 is suitable for use with the combustion manager W-FM 25. 2.2 Safety measures Safety relevant fault conditions must be eliminated immediately. 2.2.1 Electrical connection For work carried out on live components: Observe the accident prevention instructions DGUV Regulation 3 and adhere to... -
Page 6: Product Description
3.1 Inputs and outputs The degree of modulation can be controlled via a control signal, which is connec- ted to the input of the analogue module EM3/3. The current degree of modulation can be signalled via an output from the analogue module EM3/3. -
Page 7: Output
Analogue module EM3/3 3 Product description 3.1.2 Output The analogue module EM3/3 has two analogue outputs. The outputs can be set for the following ranges using DIP switches: current output 0 … 20 mA or 4 … 20 mA, depending on the range set, voltage output 0 … 10 V or 2 … 10 V, depending on the range set. -
Page 8: Technical Data
Installation and operating instruction Analogue module EM3/3 3 Product description 3.2 Technical data 3.2.1 Electrical data Input Voltage input 0/2 V … 10 V Input impedance 200 kΩ Current input 0/4 mA … 20 mA Input impedance 500 Ω Output Voltage output 0/2 V … 10 V Internal resistance of source 83 Ω External impedance min 12 kΩ... -
Page 9: Installation
Installation and operating instruction Analogue module EM3/3 4 Installation 4 Installation 4.1 Installing analogue module Risk of electric shock Working on the device when voltage is applied can lead to electric shock. Isolate the device from the power supply prior to starting any work. -
Page 10: Setting The Dip Switches
Installation and operating instruction Analogue module EM3/3 4 Installation 4.2 Setting the DIP switches Check and adapt the setting of the DIP switches on the module. 1 2 3 4 5 DIP switches Explanation Setting Setting range 0 … 10 V / 4 … 20 mA 2 … 10 V / 0 … 20 mA... -
Page 11: Installation
Installation and operating instruction Analogue module EM3/3 5 Installation 5 Installation 5.1 Electrical connection Risk of electric shock Working on the device when voltage is applied can lead to electric shock. Isolate the device from the power supply prior to starting any work. -
Page 12: Spares
Installation and operating instruction Analogue module EM3/3 6 Spares 6 Spares 1.02 1.03 1.01 1.04 12-16 83295402 1/2019-01 La... - Page 13 Installation and operating instruction Analogue module EM3/3 6 Spares Pos. Description Order No. 1.01 Analogue module set EM 3/3 for W-FM 25 230 110 12 422 1.02 Analogue module EM 3/3 for W-FM 25 660 350 1.03 4 pole plug 716 788 1.04...
-
Page 14: Key Word Index
Installation and operating instruction Analogue module EM3/3 7 Key word index 7 Key word index Connection diagram............ 11 Current input ................ 8 Current output ............... 8 DIP switches ................ 10 Disposal .................. 5 Electrical connection............ 11 Guarantee................ 4 Input .................. 6 Input impedance.............. 8 Installation................ - Page 15 83295402 1/2019-01 La...
- Page 16 Max Weishaupt GmbH · 88475 Schwendi Weishaupt close by? Addresses, telephone numbers etc. can be found at www.weishaupt.de We reserve the right to make changes. All rights reserved. The complete program: Reliable technology and prompt, professional service W Burners up to 570 kW...
