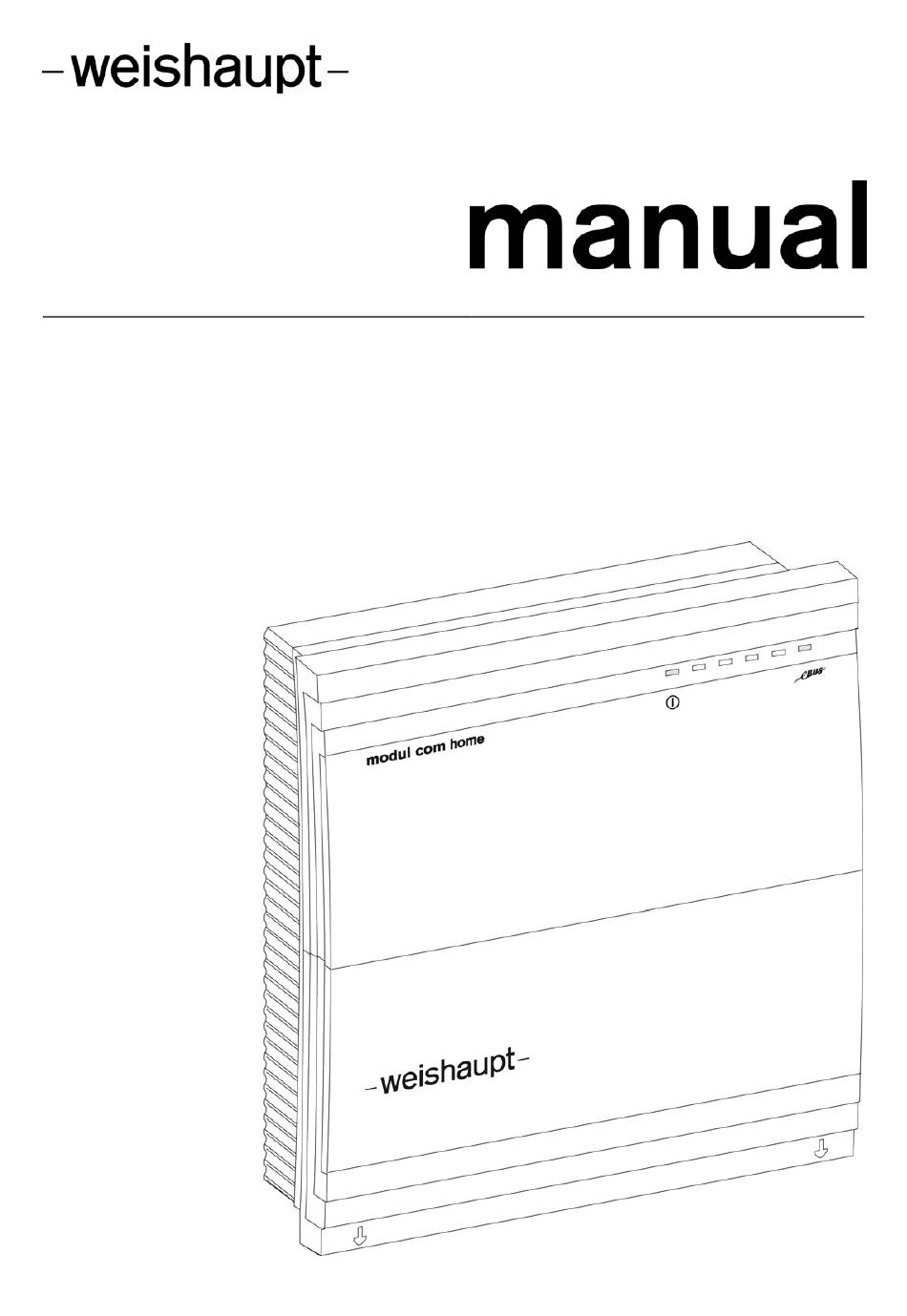

- Page 1 Installation and operating instruction Communication module WCM-COM 1.0 home 83279302 ▪ 2/2012-12...
-
Page 3: Table Of Contents
Installation and operating instructions Communication module WCM-COM 1.0 home User guide ......................5 User guidance....................5 1.1.1 Symbols ......................5 1.1.2 Target group ....................5 Guarantee and Liability .................5 Safety ........................6 Permissible application .................6 Safety measures ...................6 Electrical connection ..................6 Disposal ......................6 Product description ....................7 Type key .......................7... - Page 4 Installation and operating instructions Communication module WCM-COM 1.0 home 7.4.1 WTC heat exchanger ..................21 7.4.2 WCM-SOL solar controller ................21 7.4.3 WCM-KA cascade manager ...............22 7.4.4 Heating circuits: WCM-FS and WCM-EM ...........22 WCM-COM settings ..................23 7.5.1 Network settings ..................23 7.5.2 Addresses....................23 7.5.3...
-
Page 5: User Guide
▪ Non approved application of the communication module ▪ Non-observance of the installation and operating instructions ▪ Continued use despite a fault ▪ Repairs, which have been carried out incorrectly ▪ The use of non original Weishaupt parts ▪ Force majeure 5-32 83279302 ▪ 2/2012-12 ▪ Mot... -
Page 6: Safety
Installation and operating instructions Communication module WCM-COM 1.0 home 2 Safety 2 Safety 2.1 Permissible application The WCM-COM communication module is used for monitoring, remote control, error signalling and consumption data collection from a heating system. 2.2 Safety measures Safety relevant defects must be rectified immediately. -
Page 7: Product Description
Installation and operating instructions Communication module WCM-COM 1.0 home 3 Product description 3 Product description 3.1 Type key WCM-COM 1.0 home WCM- Weishaupt Condens Manager -COM Communication module Issue home Version with the following functionality: ▪ Network interface 3.2 Technical data 3.2.1 Approval data... -
Page 8: Specifications Of Data Connections
Installation and operating instructions Communication module WCM-COM 1.0 home 3 Product description 3.3 Specifications of data connections 3.3.1 eBUS Description Terminal 2 pole, eBUS+ and eBUS- Address Automatic 3.3.2 Ethernet Description Connection socket RJ45, Auto- MDIX Max. speed 100 Mbit / s 8-32 83279302 ▪... -
Page 9: Applications
▪ WCM-KA from 2.0 ▪ WCM-SOL 1.0 home 3.5 Included in delivery The following items are components parts of the delivery: ▪ Communication module WCM-COM 1.0 home ▪ SD card, plugged in and pre-configured ▪ Network cable RJ45 ▪ Fixing material ▪... -
Page 10: Installation
Installation and operating instructions Communication module WCM-COM 1.0 home 4 Installation 4 Installation 4.1 Wall mounting the WCM-COM ▶ Fit DIN rail (35 mm) to wall using fixing material. ▶ Leave right side of housing accessible for external connections (network cables). -
Page 11: Electrical Installation
Installation and operating instructions Communication module WCM-COM 1.0 home 5 Electrical installation 5 Electrical installation 5.1 Open housing cover ▶ Slightly depress tab and turn screwdriver clockwise. ▶ Remove housing cover. 5.2 Connect WCM-COM 11-32 83279302 ▪ 2/2012-12 ▪ Mot... - Page 12 Installation and operating instructions Communication module WCM-COM 1.0 home 5 Electrical installation Screened cables The cables for eBUS and M-Bus should be connected to the screening shield. Cable type: LIYCY 2 x 0.75 12-32 83279302 ▪ 2/2012-12 ▪ Mot...
-
Page 13: Connect Wcm-Com To Condensing Boiler
Installation and operating instructions Communication module WCM-COM 1.0 home 5 Electrical installation 5.3 Connect WCM-COM to condensing boiler A maximum of 2 modules (WCM-EM or WCM-COM) may be connected to terminal 2 of the condensing boiler. Several additional modules If more than 2 modules are required: ▶... -
Page 14: Network Socket
Installation and operating instructions Communication module WCM-COM 1.0 home 5 Electrical installation 5.5 Network socket The connection for the network cable is located on the right hand side of the housing and is accessible externally. ▶ Open the bottom of the three covers on the side. -
Page 15: Ports For Cards (On The Right Of The Connection Area)
Installation and operating instructions Communication module WCM-COM 1.0 home 5 Electrical installation 5.6.3 Ports for cards (on the right of the connection area) Terminal Connection Explanation microSD Card already inserted and Only limited functionality without preconfigured. SD card. Reset key Press for approx. -
Page 16: Connection Possibilities
Communication module WCM-COM 1.0 home 6 Connection possibilities 6 Connection possibilities The WCM-COM 1.0 home can only be connected via network cable. This is described in detail below. It may be advisable to consult a network administrator or IT expert to carry out this configuration. - Page 17 Installation and operating instructions Communication module WCM-COM 1.0 home 6 Connection possibilities Measures if connection is not made If an automatic network connection is not established when the WCM-COM is connected to the laptop, the following should be carried out: ▶...
- Page 18 Installation and operating instructions Communication module WCM-COM 1.0 home 6 Connection possibilities Remote access via the Internet It may be advisable to consult a network administrator or IT expert to carry out this configuration. Incorrect configuration of the router could leave the complete (home) network being accessible by anyone on the Internet.
-
Page 19: Operation
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7 Operation 7.1 WCM-COM operating displays WCM-COM display Display status Meaning Mains LED ON Mains voltage applied Mains LED OFF No mains voltage applied Mains LED flashes 8 times... -
Page 20: Division And Mechanism Of Operation
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.2.2 Division and mechanism of operation Operation is exclusively via web browser and associated operating mechanism. The temperature, process values or adjustable parameters are generally divided as follows: ▪ Process value: non editable temperatures or conditions ▪... -
Page 21: Password Query
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.3 Password query Access to the WCM-COM is granted by entering a user ID and the relevant password. This protects against unauthorised access by third parties. In order to grant access to authorised personnel only, these factory settings must be individually customised. -
Page 22: Wcm-Ka Cascade Manager
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.4.3 WCM-KA cascade manager Current temperatures, status and process variables are shown in the sub menu “Process values”. With the appropriate checkbox in each row the process value is added to the Data Logger (DataLog) or for monitoring (Monit). -
Page 23: Wcm-Com Settings
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5 WCM-COM settings Specific settings for communication and applications are configured and/or displayed in the main menu point “WCM-COM”. 7.5.1 Network settings Depending on the existing network or connection settings, various settings relative to the network must be made. -
Page 24: Email Server
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5.3 Email Server In this section, the access data to the email post box is entered. This information is required by the WCM-COM to send emails. The email provider (for example GMX, Freenet, …) provides information on its website via the SMTP (and POP3 ) server address. -
Page 25: Monitoring
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5.6 Monitoring Up to 8 heating system process values are monitored and if necessary reported to ensure limit values are not exceeded. The status (yellow = active/ grey = inactive) is shown ▶... -
Page 26: Graphic
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5.8 Graphic In this section the recording of the data logger is displayed graphically. The last 300 recorded values appear which are also the maximum number of simultaneously displayable values. This should be observed when selecting the recording cycle (see table below). -
Page 27: User Management
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5.9 User management Users with 3 different authorisation levels are generated in the WCM-COM. A valid combination of user ID and password is required to login. User groups Up to 5 different users are managed in this menu. An overview of all websites with the relevant authorisation is depicted in chapter 8. -
Page 28: Reset
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5.10 Reset The following options are available in the sub-menu: Backup of WCM-COM settings When selected, the settings of the WCM-COM are saved to a target file. Select location for this file (hard drive, removable disc drive, …). -
Page 29: Firmware Update
Installation and operating instructions Communication module WCM-COM 1.0 home 7 Operation 7.5.11 Firmware Update The current version of the firmware and the web pages can be found in section Info – Version Overview. If an update is required, this is carried out via this website. A special file type *.fwu is available if required: ▶... -
Page 30: Authorisation Levels Of Websites
Installation and operating instructions Communication module WCM-COM 1.0 home 8 Authorisation levels of websites 8 Authorisation levels of websites Main menu Website Authorisation Home User Heat exchanger WTC process values User WTC Engineer Engineer WCM-KA process values User WCM-KA Engineer... - Page 31 Installation and operating instructions Communication module WCM-COM 1.0 home Key word index A O Address book ..............23 Operating display ............. 19 Addresses ................ 23 Operation ................. 19 Admin................. 21, 27 P Authorisation ..............30 Password ................. 21 B POP3 ................24 Browser..............
- Page 32 Control technology / From control panels to complete building management building systems – at Weishaupt you can find the entire management spectrum of modern control technology. Future oriented, economical and flexible.
