Sealey SA6002.V3 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Refer to instruction Wear ear protection Wear eye protection
manual
WARNING! DO NOT use wrench if damaged or thought to be faulty. Contact Service Agent.

WARNING! Disconnect from the air supply before changing accessories or servicing.

WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we recommend

you wear suitable respiratory protection.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.

DO NOT use the wrench for a task it is not designed to perform.

DO NOT use worn, or damaged sockets

DO NOT use the wrench unless you have been instructed in its use by a qualified person.

DO NOT use the wrench for a task it is not designed to perform.

DO NOT carry the wrench by the air hose.

DO NOT operate the wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT carry the wrench with your hand on the power trigger in order to avoid unintentional starting.

DO NOT direct air from the air hose at yourself or others.

Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts

may be dangerous and will invalidate the warranty.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are

secure.
Only use impact sockets which are specifically designed for use with an impact wrench.

Wear approved safety eye/face shield, ear defenders, dust mask and hand protection.

Follow all workshop safety rules, regulations, and conditions when using the wrench.

Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

Operate with both hands when practical to do so.

Keep children and non essential persons away from the working area.

When not in use disconnect from air supply and store in a safe, dry, childproof location.

WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that

may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.

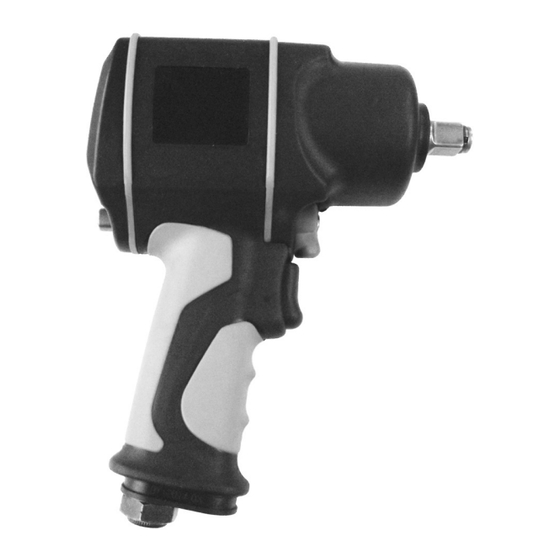

2. INTRODUCTION
Lightweight composite casing with two extruding edge strips to
help protect housing. Specially designed motor gives high torques
whilst working on low air consumption. One hand operation with
three speed selector switch and forward/reverse control at your
fingertips. Handle features a downward facing exhaust to lower
noise level and soft grips to help reduce vibration and chill.
Suitable for professional garages.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . SA6002.V3
Drive: . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2"Sq
Working Torque: . . . . . . . . . . . . 650lb.ft/880Nm
Maximum Torque: . . . . . . . . . . . 700lb.ft/950Nm
Ultimate Torque: . . . . . . . . . . . 900lb.ft/1220Nm
Free Speed: . . . . . . . . . . . . . . . . . . . . 6500rpm
Air Consumption: . . . . . . . . . . . . . . . . . . 4.8cfm
Operating Pressure: . . . . . . . . . . . . . . . . . 90psi
Air Inlet Size: . . . . . . . . . . . . . . . . . . . 1/4" BSP
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . 2.02kg
Noise Power: . . . . . . . . . . . . . . . . . . . 107.1dBA
Noise Pressure: . . . . . . . . . . . . . . . . . . 96.1dBA
© Jack Sealey Limited
INSTRUCTIONS FOR:
AIR IMPACT WRENCH 1/2" SQ DRIVE
TWIN HAMMER
SA6002.V3
MODEL NO:
Wear protective
gloves
Original Language Version
Wear a dust mask
SA6002.V3 Issue: 1 - 12/11/14
