Summary of Contents for BAUKER PSJ550G2

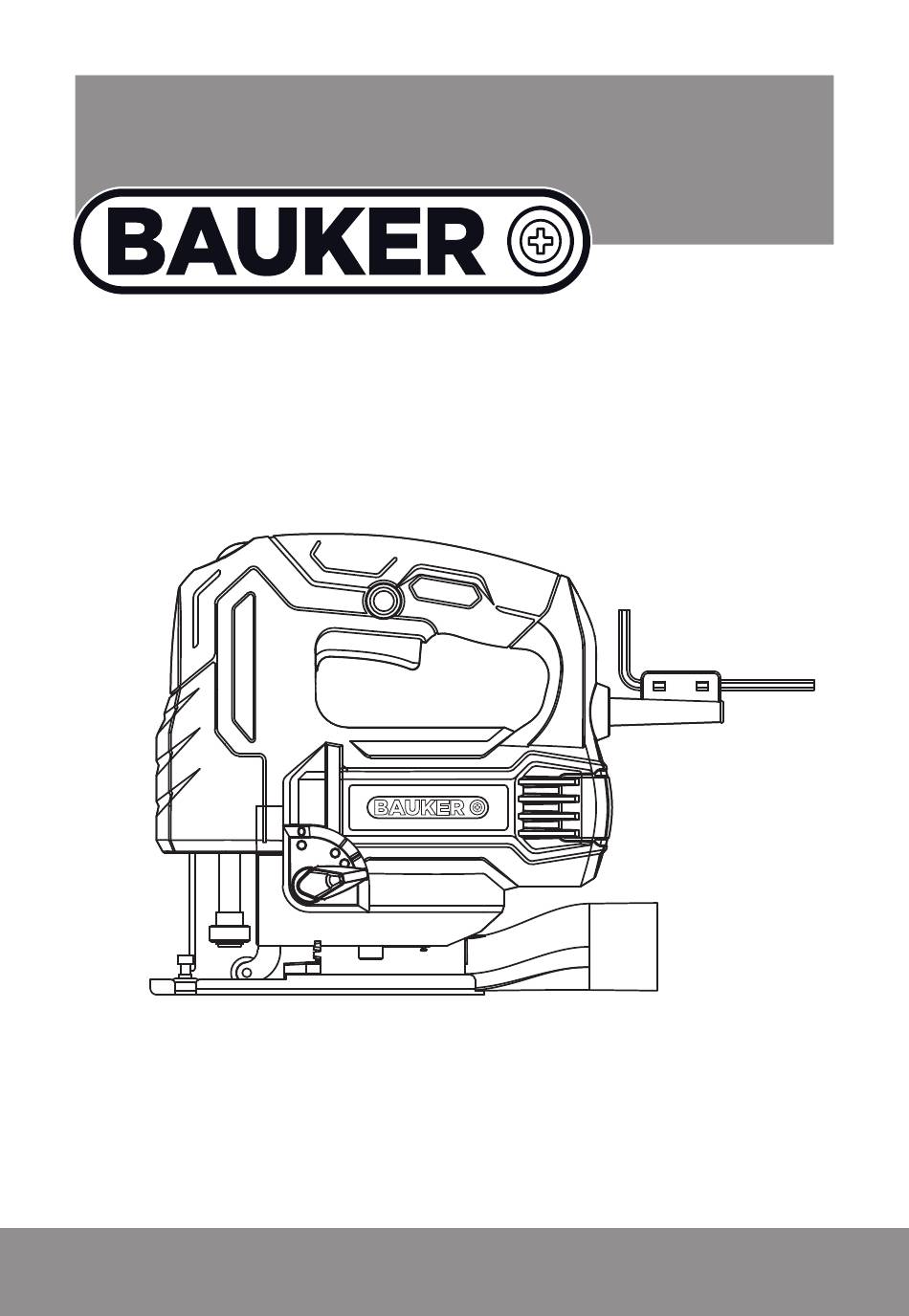

- Page 1 PSJ550G2 PSJ550G2.1 550W JIG SAW ORIGINAL INSTRUCTION MANUAL...
-
Page 2: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this Important - Please read these instructions fully before starting assembly power tool. Failure to follow all instructions listed below may General Power Tool Safety Warnings result in electric shock, fire and/or serious injury. - Page 3 e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Important - Please read these instructions fully before starting assembly f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) General Power Tool Safety Warnings protected supply.
- Page 4 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
-
Page 5: Jig Saw Safety Warnings
JIG SAW SAFETY WARNINGS 1. Hold reciprocating saw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. - Page 6 EN-6...
- Page 7 EN-7...
- Page 8 EN-8...
- Page 9 SYMBOLS To reduce the risk of injury, user must read instruction manual Wear eye protection Wear ear protection Wear dust mask Warning Double insulation Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. EN-9...
-
Page 10: Component List
12. FINGER PROTECTION 13. LED LIGHT (FOR PSJ550G2) (SEE FIG. E) Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type PSJ550G2 PSJ550G2.1 (PSJ -designation of machinery, representative of Jig Saw) Rated voltage 230-240V~ 50Hz Rated power... -
Page 11: Noise Information
NOISE INFORMATION A weighted sound pressure = 84.37 dB(A) = 3.0 dB(A) A weighted sound power = 95.37 dB(A) = 3.0 dB(A) Wear ear protection. VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 62841: Vibration emission value a = 6.931 m/s Cutting boards Uncertainty K = 1,5 m/s²... - Page 12 OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for sawing wood, plastic, metal and building materials while resting firmly on the workpiece. It is suitable for straight and curved cuts with bevel angles to 45°. The saw blade recommendations are to be observed.
- Page 13 WARNING: Blade teeth are very sharp. ● When the holder is rotated, the blade will be ejected. ● Aim the machine so that the blade is ejected away from yourself and other people. 7. ROLLER GUIDE (See Fig. F) Ensure the blade is located and runs smoothly in the groove (See Fig. F) otherwise the pendulum function will not work correctly and the blade will not be supported during cutting.
-
Page 14: Circle Cutting
WORKING HINTS FOR YOUR JIG SAW If your jig saw becomes too hot, especially when used at low speed, set the speed to maximum and run no Load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. GENERAL Always use a blade suited to the material and material thickness to be cut. -
Page 15: Environmental Protection
in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. -
Page 16: Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Jig Saw Description PSJ550G2 PSJ550G2.1 (PSJ-designation of machinery, representative of Jig Saw) Type Sawing various materials Function Complies with the following Directives, 2006/42/EC, 2014/30/EU, 2011/65/EU...
