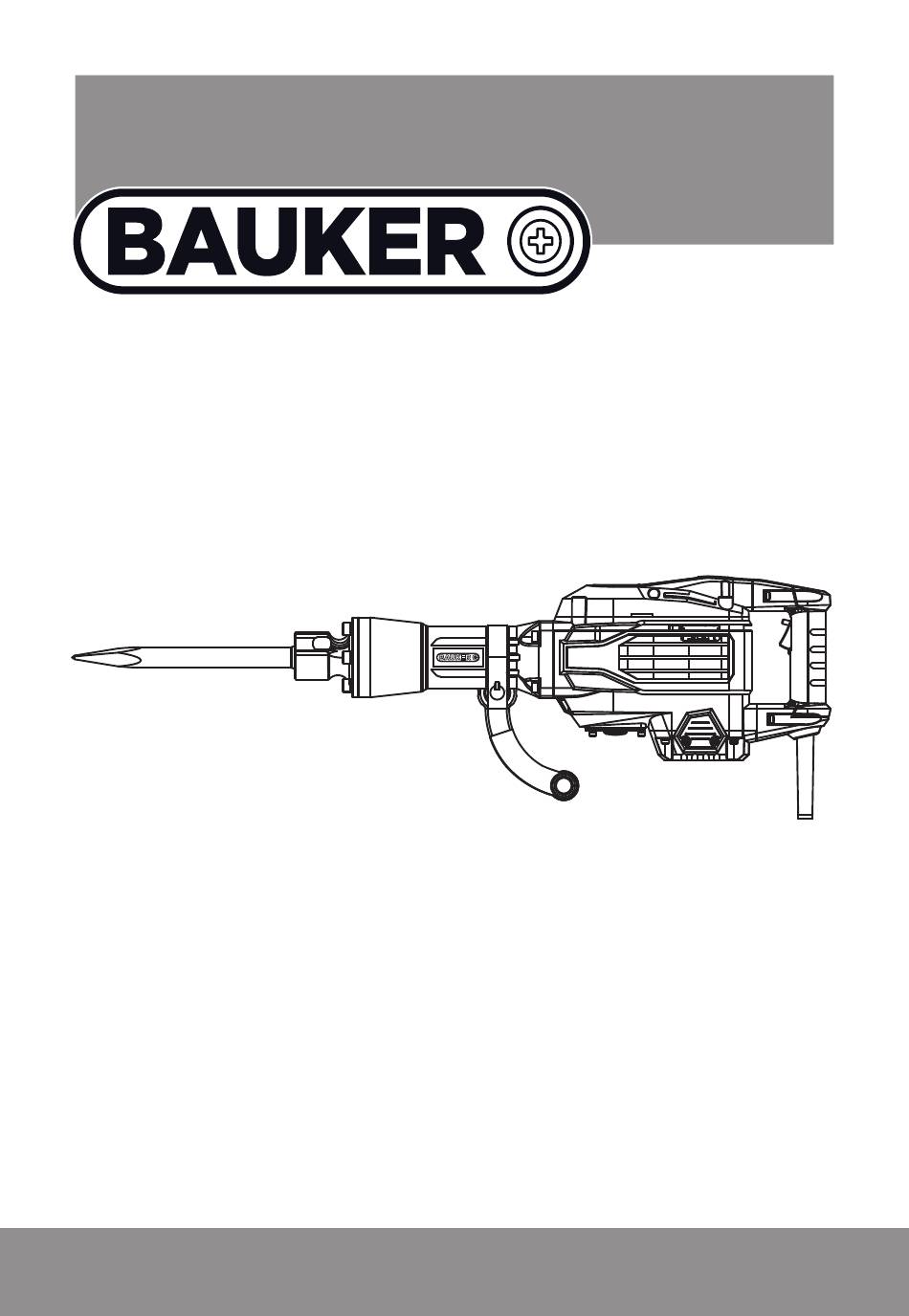

- Page 1 PDH170DS 1700W DEMOLITION HAMMER ORIGINAL INSTRUCTION MANUAL...
-
Page 2: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions Important - Please read these instructions fully before starting assembly may result in electric shock, fire and/or serious injury. General Power Tool Safety Warnings Save all warnings and instructions for future reference. - Page 3 suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) Important - Please read these instructions fully before starting assembly protected supply. Use of an RCD reduces the risk of electric General Power Tool Safety Warnings shock.
- Page 4 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 5 accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. ADDITIONAL SAFETY RULES FOR HAMMER 1. Always wear a dust mask. EN-5...
- Page 6 SYMBOLS To reduce the risk of injury, user must read instruction manual Wear eye protection Wear ear protection Wear dust mask Warning Double insulation Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. EN-6...
- Page 7 EN-7...
- Page 8 EN-8...
-
Page 9: Component List
COMPONENT LIST 1. AUXILIARY HANDLE 2. LOCK-ON BUTTON 3. ON/OFF SWITCH 4. GREASE BOX COVER 5. EXTRA CARBON BRUSH* 6. PLASTIC CONTAINER GREASE* 7. SPANNER* 8. POINT CHISEL AND FLAT CHISEL* 9. OIL FEEDER* *Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Voltage 230V~ 50Hz... -
Page 10: Noise Information
NOISE INFORMATION A weighted sound pressure L =92.87dB(A) = 3dB(A) A weighted sound power =105dB(A) = 3dB(A) Wear ear protection VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Mode description Vibration emission value Uncertainty K chiseling = 18.575 m/s K = 1.5 m/s²... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. We recommend that this tool always be supplied via a residual current device with a rated residual current of 30 mA or less. For low temperatures, new power tool or long-time storage, the machine reaches the full impact rate only after a certain time. -
Page 12: Maintenance
not to damage the gasket. -Refill lubricating oil. -Close the lubricant filler screw to check the oil level. If the lubrication oil is in the middle of the sight glass, you refilled enough oil. 6. CHANGE THE CARBON BRUSH (See F1, F2) WARNING! Remove the mains plug from socket before changing the carbon brushes. - Page 13 PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE – NEUTRAL BROWN –...
-
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Description Electric hammer PDH170DS (PDH - designation of machinery, representative of hammer) Type Hammering various materials Function Complies with the following Directives:...
Need help?
Do you have a question about the PDH170DS and is the answer not in the manual?
Questions and answers
Hello. Doesn't Hammer all the time,feels like the Hammer action gets stuck sometimes.
The BAUKER PDH170DS hammer action may get stuck if the lubrication oil level is low or the chisel being used is dull or of poor quality. Proper lubrication is necessary for smooth operation, and using sharp, good-quality chisels improves performance. Regular maintenance, such as refilling lubricating oil and replacing worn carbon brushes, can help prevent issues.
This answer is automatically generated

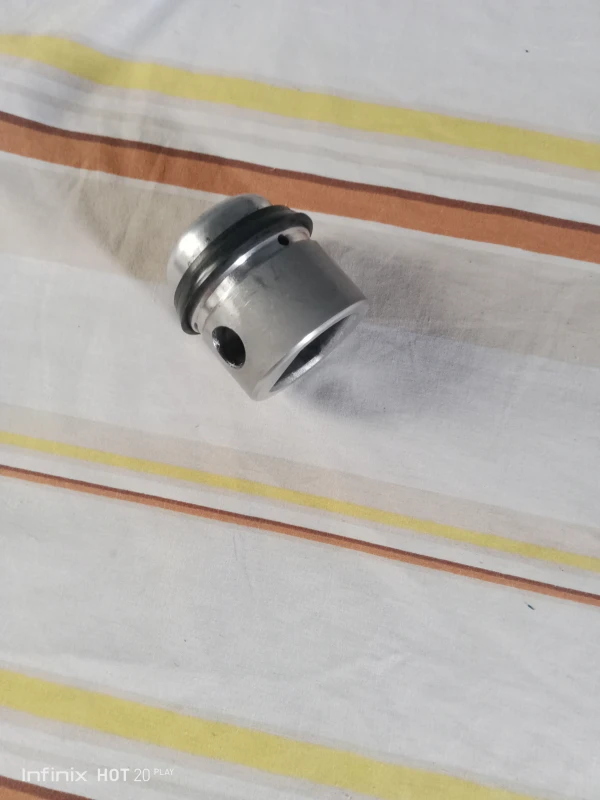

I am looking for piston seal number
