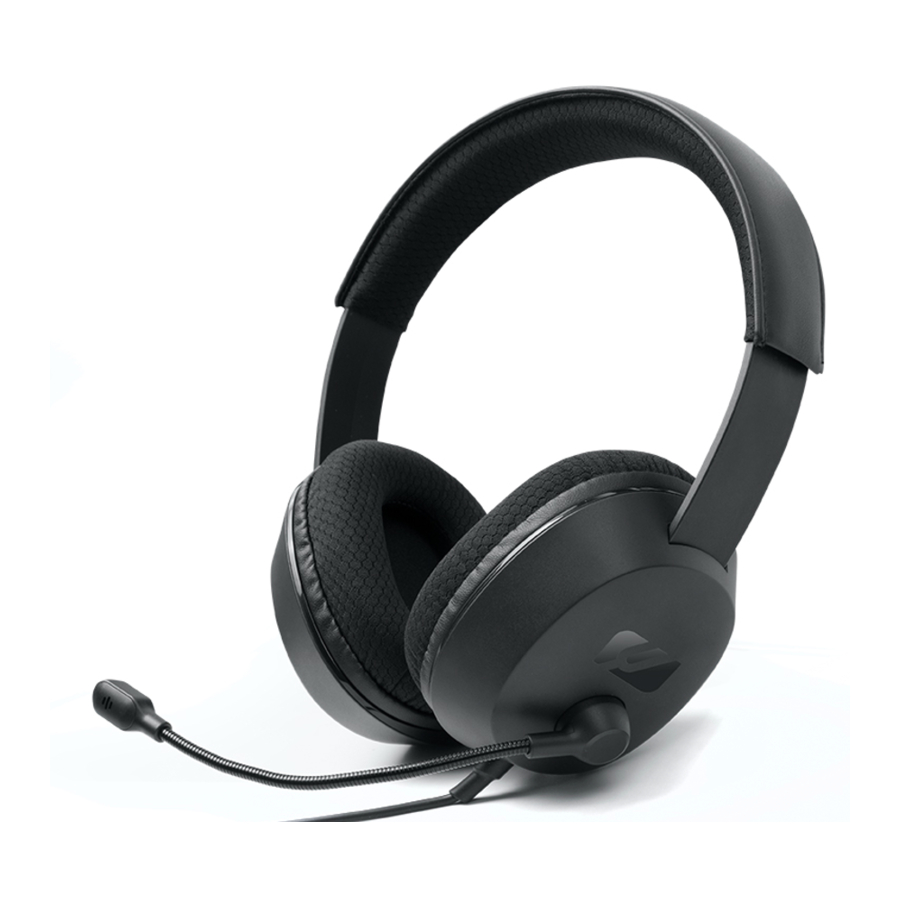

Muse M-210 GH - Headphones With Microphone Manual

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

1. Microphone
2. Microphone mute switch
3. Volume control

SETTING UP THE HEADPHONES

PC/ Laptop Setup

1. Connect the headphone to your PC'S audio jack, not all computers will be able to be use the microphone without the use of an audio splitter.
2. Make sure the system you are using supports a 3.5mm audio headphone jack.
3. Set the headphone volume level to your desired setting.
4. Set the microphone volume level to your desired setting.

PS4 Setup

1. Connect the headphone to the controller, your headphone may automatically switch to your output depending on your PS4 settings.
2. If it doesn't switch, enter the settings Menu > Devices > Audio Devices, set input and output device to "Headset Connected to controller."
3. Change "Audio Output to Headphones" to "All Audio."
4. Set the headphone volume level to your desired setting.
5. Set the microphone volume level to your desired setting.

PS5 Setup

1. Connect the headphone to the controller, your headphone may automatically switch to your output depending on your PS5 settings.
2. If it doesn't switch, enter the settings > Sound > Audio output > Output device > Select headphones connected to controller.
3. To adjust your mic level go to settings > Microphone > Adjust the microphone level and set your desired settings.
4. To adjust your headphone volume go to settings > Sound > Volume > Adjust the headphone level to your desired settings.

XBOS Series X/S Setup

1. Connect the headphone to the controller, your headphone may automatically switch to your output depending on your XBOX series X/S settings.
2. Enter the system Menu > Audio
3. Set the headphone volume level to your desired setting.
4. Set the mic monitoring to your desired setting.

Note: Not all controllers will have a 3.5mm audio jack.

XBOX ONE Setup

1. Connect the headphone to the controller, your headphone may automatically switch to your output depending on your XBOX ONE settings.
2. Enter the system Menu > Audio
3. Set the headphone volume level to your desired setting.
4. Set the mic monitoring to your desired setting.

Note: Not all controllers will have a 3.5mm audio jack.

Switch Setup

Connect the headphone to the switch, the switch must be used out of the dock in handheld mode to muse the audio jack.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Maximum output voltage ≤ 150mV
Wide Band Characteristic Voltage ≥ 75mV

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Sound

• Make sure your headphones is connected with external device properly.
• External device's volume is set to minimum; raise volume.
• The M-210 GH's volume is set to minimum; raise volume.

SPECIFICATIONS

Driver sensitivity: 92dB ± 3dB
Mic sensitivity: -40dB ± 3dB
Frequency response: 20Hz to 20KHz
Impedance: 16Ω±15%
Speaker diameter: 40mm

Specifications are subject to change without notice.
