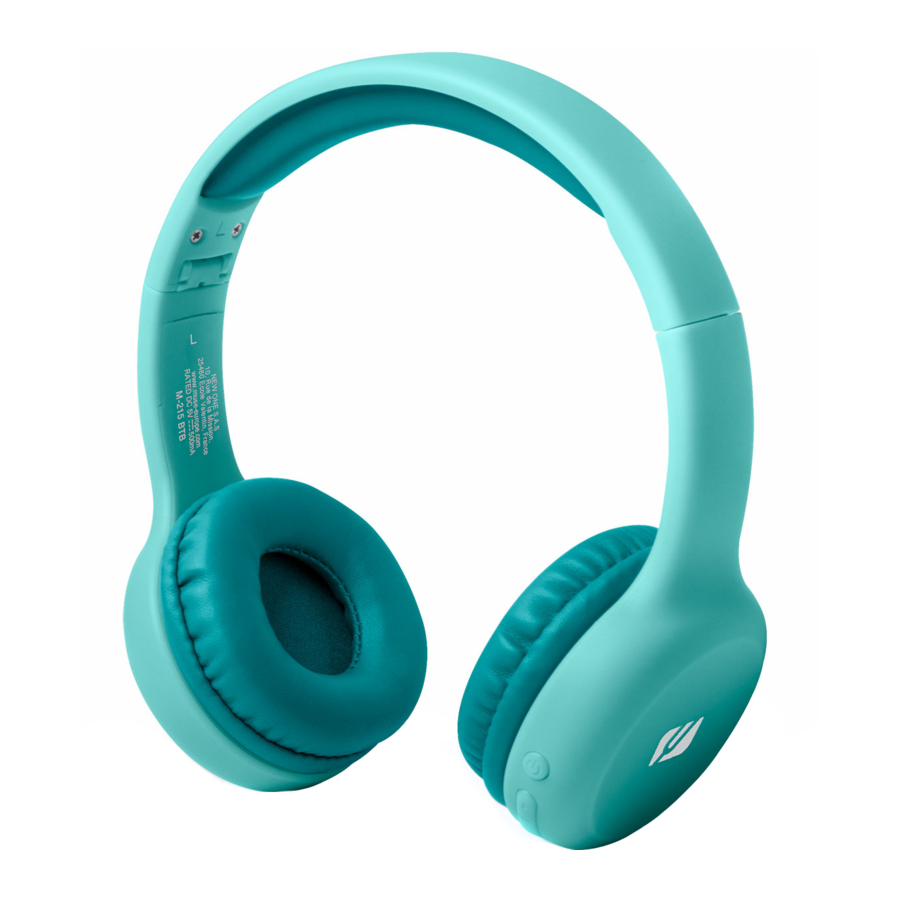

Muse M-215 BTB, M-215 BTP - Bluetooth Stereo Headphones Manual

Table of Contents

Contents

1 OVERVIEW
2 UNPACK YOUR UNIT
3 LOCATION OF CONTROLS
4 POWER SUPPLY
5 OPERATION
6 BLUETOOTH FUNCTION
7 CONNECTING AUXILIARY SOURCE
8 SHARING FUNCTION
9 SWITCHING BETWEEN KID AND ADULT MODE
10 TROUBLESHOOTING GUIDE
- 10.1 No Power
- 10.2 No Sound – General
11 SPECIFICATIONS
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

OVERVIEW

Overview

UNPACK YOUR UNIT

When you unpack your new headphone, make sure that you have removed all the accessories and information papers:
Main unit
User manual
Accessories:

LOCATION OF CONTROLS

Power ON / OFF; Switch for kid and adult mode; Play/ Pause; Receive call / End call / Reject call / Redial call / Transfer call
: Long press to increase the volume; short press to skip to next track
: Long press to decrease the volume; short press to skip to previous track
Bluetooth LED indicator
AUX IN jack
Microphone
Charging LED indicator
Micro USB jack for charging and line out (sharing function)

POWER SUPPLY

The unit is powered by a built-in Lithium-ion polymer rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.
To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or an AC power supply (not included).
The charging LED indicator will change to red color during charging and lights off when the battery becomes fully charged.

While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
To get the longest service life of the built-in battery, charge at indoor-temperature.
Attention should be drawn to the environmental aspects of battery disposal.
Do not throw batteries in fire!
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
When the battery is low, the unit will beep every 60 seconds. The unit will turn off automatically when the battery is too low to work.

OPERATION

Turning unit ON/OFF
Press and hold 2 seconds to turn ON the unit. The Bluetooth LED indicator will light on.
Press and hold 5 seconds to turn OFF the unit. The Bluetooth LED indicator will light off.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device
Press and hold 2 seconds to turn ON the unit. The Bluetooth LED indicator will blink blue and red alternately indicating it's in pairing mode. On the Bluetooth device, enable Bluetooth and select "M-215BT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear an indication sound, the Bluetooth LED indicator stops blinking and stays blue. If there is no pairing or pairing is not successful within 5 minutes, the headphone will turn off automatically.

Tip: If you want to connect your headphone to another Bluetooth audio device, press button three times to disconnect current device, and then follow the steps above to make a new connection.

On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the headphone.
Press the button to pause playback. Press again to resume playback.
Long press buttons to adjust the volume level. You can also adjust the volume on the device you are paired with.
Short press buttons to select your desired audio file.
Note: The Bluetooth LED indicator will blink blue slowly during playback.

Receiving a Phone Call
This unit is equipped with a built-in microphone, which allows you to make or end calls of a connected mobile phone through this unit. Make sure your Bluetooth-enabled mobile phone is paired with the unit. When there is an incoming call to the connected mobile phone, you will hear an incoming call alert tone from the unit.

Press the button to answer the incoming call.
Press the button again to end call.
To reject the incoming call, press and hold the button.
To redial the last number retained in the memory of the mobile phone, press the button twice.
To transfer the sound between the mobile phone and the unit, press the button three times quickly during a call.

Note:

This unit will not operate or may operate improperly with some Bluetooth mobile phones/audio players.
The sound will be cut off by long press button during the call. Press button to restore the sound.

Hereby, NEW ONE S.A.S, declares that this "MUSE M-215 BTB / M-215 BTP" is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

CONNECTING AUXILIARY SOURCE

Insert one end of the supplied audio cable into the LINE OUT or Headphone jack on your external audio device and the other end into the AUX IN jack on the headphone. (Note: If the headphone is in ON mode, it will automatically turn standby once the audio cable is plugged in.) The headphone will work as a normal wired headphone.
Start playback of the external device and the external audio device's output sound will be heard through the headphone.
To adjust volume, use the volume control on the external audio device.
To stop playback, disconnect the audio cable from the AUX IN jack of the headphone.

Insert the micro USB end of the supplied sharing cable into the USB jack (main unit) and the other end into a second headphone (don't need turn the unit ON), active the main unit in Bluetooth mode or AUX IN mode and start playback, the second headphone can share the sound with the main unit.

SWITCHING BETWEEN KID AND ADULT MODE

Press and hold button for 2 seconds during playback, you will hear an indication sound, then release the button, the sound level will change accordingly. Please select your desired mode to playback.

Note:

Volume can be limited to 85db in kid mode.
The headphone will turn off automatically if hold button more than 5 seconds.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Maximum output voltage ≤ 150mV
Wide Band Characteristic Voltage ≥ 75mV

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

Power is not on; Press and hold2 seconds to turn ON the unit.
Make sure the battery is recharged.

No Sound – General

External device' s volume is set to minimum; raise volume.
The M-215BT' s volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

RECHARGEABLE BATTERY
Battery Type: 3.7V 150mAh Lithium-ion polymer Battery
Charging power: DC 5V 500mA
Operating Time: >11 hours at 50% volume after fully charged
Charging Time: Approx. 2-3 hours

BLUETOOTH
Bluetooth: 2.402 - 2.480GHz
RF Output Power: -4.88 dBm
Bluetooth Version: V5.0
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device) Specifications are subject to change without notice.

No naked flame sources, such as lighted candles, should be placed on the apparatus.
The use of apparatus in moderate climates.
The apparatus should not be exposed to dripping or splashing.
Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
Do not place objects filled with liquids, such as vases, on the apparatus.
Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.
Excessive sound pressure from earphones and headphones can cause hearing loss.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
