Device Оverview

We are pleased that you have decided to buy our product and wish you a lot of fun with it.

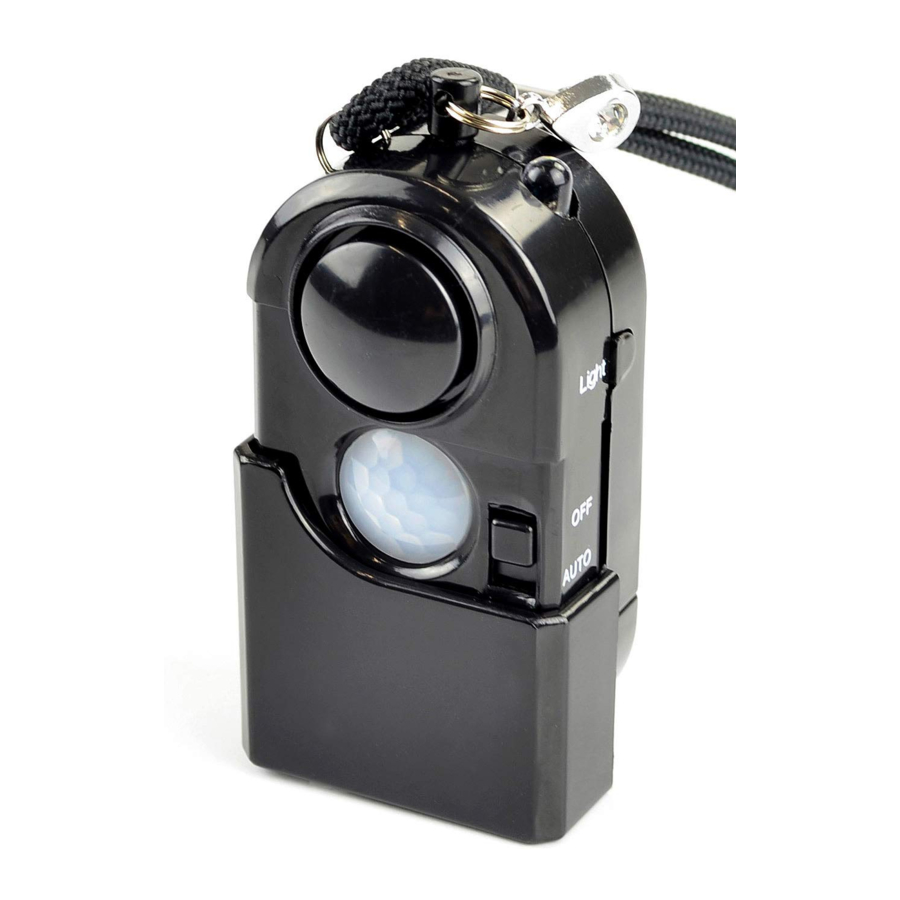

Device Оverview

ALARM-PIN
LED
SPEAKER
COVER (MOVABLE)
LIGHT BUTTON
SWITCH OFF/AUTO FOR MOTION SENSOR
PIR MOTION SENSOR
HANGING LOOP
BATTERY COMPARTMENT
RHINESTONE PENDANT AT ALARM PIN

TECHNICAL DATA

Integrated	Motion Sensor, LED lamp
Dimensions	67 x 68 x 24 mm
Power Supply	3x 1,5 V Batteries (LR 44)
Continuous Alarm	By pulling the alarm pin
15 seconds Alarm	By triggering the motion sensor
Alarm Volume	120 dB

Liability

We do not accept liability for any damage to property or for personal injury that is due to improper use or failure to follow the instructions in this operating manual and the safety advice. In such cases any claim under the guarantee is null and void!

Checking the contents

when unpacking your product make sure that all components are there and intact. If any components are missing or damaged please contact a specialist or your local dealer immediately. keep the packing and user manual in a safe place for future transport. when passing on the product to another person, be sure to include the user manual.

Pocket and Travel Alarm,
3 x LR44 Batteries,
Instruction Manual

Designated use

The personal and travel alarm serves as a deterrence for harassment by pulling the alarm pin. The integrated motion sensor (passage alarm) is triggered by movement and releases an alarm for 15 seconds. It also features an integrated LED lamp which can be used as flashlight. The designated use is also defined by the instruction manual and in following the appliance and the warnings mentioned in this user manual. This device is only designed for your personal safety and convenience not for commercial or industrial use.

General notes

All mentioned company and product names are registered trademarks under the rights of their owners. All rights reserved.
No liabilities will be taken for damages or claims resulting out of not reading and/ or not following the user guide and/or any form of modification on or in the product. Under these circumstances, no warranty services will be given.
Liability cannot be taken for consequential damages.
The contents of this user manual may differ from the product. If so, please consult additional manuals in the packing. keep this user manual in a safe place. If you give this product away to a third party, make sure that you also pass on the user manual.
For the reason of safety and CE-licensing it is not allowed to modify this unit in any way and/or use it for functions, other than the designated use.
Do not expose the product to extreme temperatures, direct sunlight, strong vibrations, dampness, strong mechanical stress or sudden impacts.
After quick temperature changes, this product takes about 15 minutes to adjust to the new surrounding temperature and operates properly.

Declaration of Conformity

This product meets the requirements of both current national and European guidelines. The declaration of conformity can be found at http://productip.com/?f=6f56b

Safety guide

Please read the safety guide before using the product. This information is for your safety and the protection of the device and devices connected. You will also find specific safety instructions in the following chapters of this user manual.

Dangerous for children or other groups of people!

This product or its packaging are no toys and should not be handled by infants and small children. Children cannot assess the dangers connected with electrical devices and/or packaging material. Do not leave the packaging material lying around.

Loud alarm signal!
Do not expose your hearing to this sound for an extended period of time, otherwise severe hearing loss can be the result!

Don't activate the alarm near your ears!
This product is not a toy and should not be handled by infants and small children. Children cannot assess the dangers connected with electrical devices.
Do not leave the packaging material lying around. Children might play with the plastic bags and risk suffocation.
This device should only be opened and/or repaired by an expert or a person who is qualified to do so. Only original spare parts may be used.
If the device is not used for a longer period of time, the batteries should be taken out of the device. Batteries stored and active over a longer period of time may leak.
If you have doubts on the function or questions, please contact your local dealer or our service center.
Keep batteries and rechargeable batteries away from children. Expired or damaged batteries can cause cauterization on contact with the skin.

Clean and maintenance

Always use a soft, dry and lint-free cloth to clean the unit's exterior. If the device is extremely dirty you can use a soft cloth, dampened with water or a mild cleaning solution to clean.

Functions

This system has three functions

MOTION SENSOR: The integrated PIR motion sensor recognizes movement in a horizontal detection zone of 30° and a detection distance of up to 3 meters. The alarm goes off for 15 seconds and silences again afterwards.
LED LIGHT: Bright, white light while pressing the light button.
PANIC ALARM: This alarm is used to trigger an immediate siren.

Getting started

Activating the batteries

Slide the cover of the battery compartment into the direction of the arrow (a).
The alarm is delivered with 3x LR44 (each 1,5 V). To avoid discharge of the batteries, a protection foil was put into the battery compartment. Remove before first use. Ž
When putting in new batteries, make sure „+" is showing towards „-" (b).
Put back the cover of the battery compartment onto the device afterwards (c).

Motion sensor

Place the device onto a vibration-free, dry and even surface within 3 meters of the area you want to detect movement in.
Slide the cover downwards.
Slide the „OFF/AUTO" switch to „AUTO" to activate the motion sensor alarm.
After an entry delay of 35 seconds, which allows you to leave the area, the motion sensor detects any movement within the detection area and triggers a 15 seconds alarm and goes to default afterwards.
