X4-Life 701564 - Longlife Water Alarm Manual

Table of Contents

Contents

1 Overview
2 Longlife Water Alarm
3 Declaration of Conformity
4 Checking the contents
5 Contents
6 Designated use
7 General notes
8 Safety guide
9 Mounting
10 Using the alarm
11 Trouble Shooting
- 11.1 The LED does not flash.
- 11.2 The alarm does not sound.
12 Cleaning and maintenance
13 Specifications
14 Disposal
15 Documents / Resources
- 15.1 References
- 15.2 Download manual

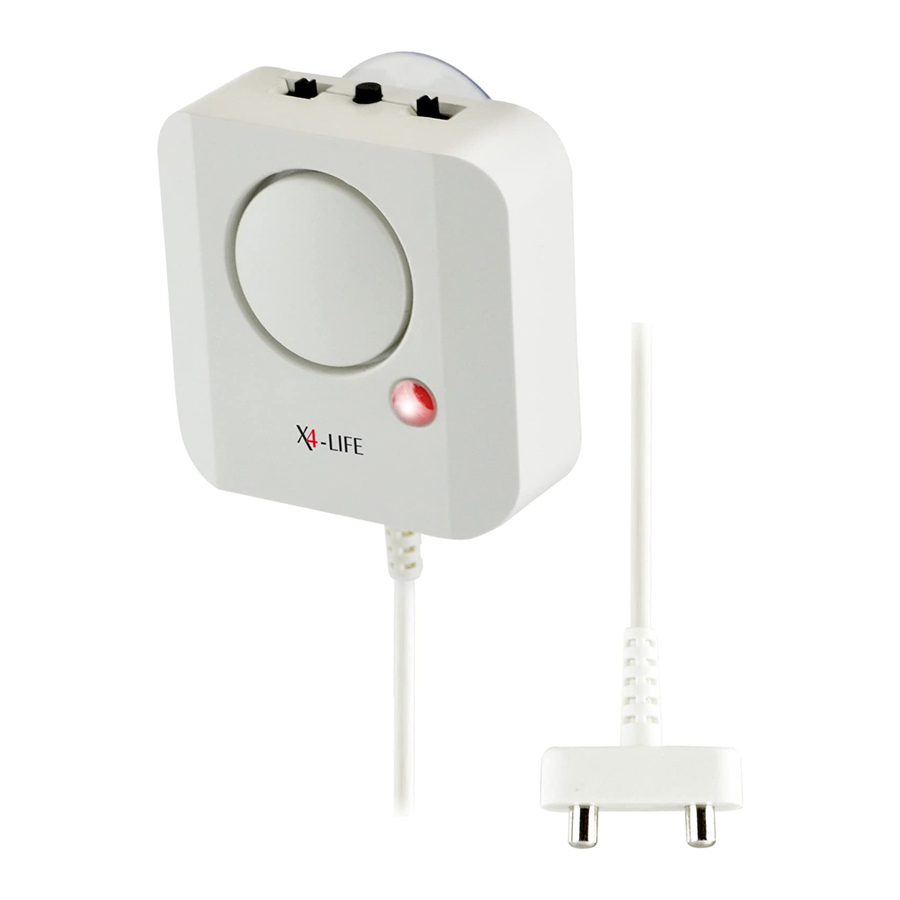

Overview

On/Off Switch T
est Button
Volume Switch
Alarm unit
Status LED
Detector
Probes

Longlife Water Alarm

We are pleased that you have decided to buy our product. We wish you were a lot of fun with this product.
This user manual contains important information for the safe use of the product. Therefore, for your own safety and for a successful use, please read this user manual completely before assembling and using the product.

Declaration of Conformity

This product meets the requirements of both current national and European guidelines. The declaration of conformity can be found at http://productip.com/?f=54201

Checking the contents

When unpacking your package make sure that all components are there and intact. If any components are missing or damaged please contact a specialist or your local dealer immediately.
Keep the packing and user manual in a safe place for future transport. When passing on the product to another person, be sure to include the user manual.

Water alarm with integrated battery | self-adhesive pads | screw and dowel | suction cup | manual

Designated use

This longlife water alarm with external sensor is used to monitor water leakage and flooding. The water sensor is mounted at the point where detection is wanted. If both poles at the sensor come into contact with water, a visual and acoustic alarm will be triggered. The designated use is also defined by the instruction manual and in following the appliance and the warnings mentioned in this user manual. This device is only designed for your personal safety and convenience not for commercial or industrial use.

General notes

No liabilities will be taken for damages or claims resulting out of not reading and/or not following the user guide and/or any form of modification on or in the product. Under these circumstances, no warranty services will be given. Liability cannot be taken for consequential damages.
The contents of this user manual may differ from the product. If so, please consult additional manuals in the packing. Keep this user manual in a safe place. If you give this product away to a third party, make sure that you also pass on the user manual.
For the reason of safety and CE-licensing it is not allowed to modify this unit in any way and/or use it for functions, other than the designated use.

Safety guide

warning Please read the safety guide before using the product. This information is for your safety and the protection of the device and devices connected. You will also find specific safety instructions in the following chapters of this user manual.

This product is not a toy and should not be handled by infants and small children. Children cannot assess the dangers connected with electrical devices.
Do not leave the packaging material lying around. Children might play with the plastic bags and risk suffocation.

Loud alarm signal!
Do not expose your hearing to this sound for an extended period of time, otherwise severe hearing loss can be the result!

Don't activate the alarm near your ears!
This device should only be opened and/or repaired by an expert or a person who is qualified to do so. Only original spare parts may be used.
This device is for indoor use only. Make sure that the alarm unit is not subjected to high humidity or water.
If you have doubts on the function or questions, please contact your local dealer or our service center.

Mounting

Mount the sensor in the area you want to monitor. We recommend that you mount the sensor with the metal detectors pointing downwards, towards where water is most likely to come in.
To mount the sensor use the double sided adhesive tape, screw and dowel or suction cap.
Mount the alarm unit in a higher area, so that it cannot be reached by water.
Make sure that you have easy access to the unit.

Using the alarm

Clean the surface you intend to mount the water leakage alarm on. Ensure the surface is completely clean and dry before proceeding.
Test the function of the alarm before installing the device.
Switch the On/Off switch (1) to ON. The device is now ready for use.
Check the status of the batteries by pressing the test button (2). The red LED should start blinking and a loud beep sound will start. To protect your ears, please switch the volume to low before you start the test.
You can adjust the intensity of the alarm sound by using the Hi/Lo switch (3).
Alarm will be triggered when both metal tips of the sensor are inserted into water.
You deactivate a triggered alarm by turning off the device with the On/Off switch (1). When the unit is then switched on again, it will go back to standby and detection mode.
The battery has a runtime of up to 10 years. Frequent triggering of the alarm will shorten this time significantly.

Note: Please check the batteries at regular intervals by pressing the test button (2).

Trouble Shooting

The LED does not flash.	Make sure the alarm is switched on.
The alarm does not sound.	Make sure the alarm is switched on.
The alarm does not sound.	Press the TEST button to ensure the alarm is working.

Cleaning and maintenance

Always use a soft, dry and lint-free cloth to clean the unit's exterior. If the device is extremely dirty you can use a soft cloth, dampened with water or a mild cleaning solution to clean. Never use any abrasive or harsh cleaning agents (e.g. alcohol, petrol or thinners) as these could damage the controls, casing or any markings and labels found on the device.

Specifications

Disposal

Electrical- and electronic devices must never be disposed of in the regular household waste! Consumers are legally obligated and responsible for the proper disposal of electronic and electrical devices by returning them to collecting sites designated for the recycling of electrical and electronic equipment waste. For more information concerning disposal sites, please contact your local authority or waste management company.

Do not throw batteries and rechargeable batteries into the household waste! Customers are legally obliged to return used and rechargeable batteries, whether they contain harmful substances* or not, designated disposal sites or collecting sites in shops selling batteries. By doing so you are contributing to a better and cleaner environment.
* Marking: Cd= Cadmium; Hg= Mercury; Pb= Lead

lived non food GmbH, all rights reserved.
No liability will be taken for modifications or mistakes regarding the technical data or product features described in this user manual. All rights reserved. Any reproduction, transfer, duplication or filing of this user manual or parts of it, as well as the translation into a foreign language or computer language is prohibited without the explicit approval of the manufacturer. Due to the fast advancement of these products, no guarantee of completeness can be given. Modifications in technique and configuration are subject to change at any time.
To receive a digital copy of this user manual, please contact our service department.

Service
Lived non food GmbH | Friedrich-Seele-Str. 20
DE-38122 Braunschweig, Germany
+49 (0) 531/224356-82 | service@x4-life.de | www.x4-life.de

Hersteller | Manufacturer | Fabricant
Lived non food GmbH | Friedrich-Seele-Str. 20 DE-38122 Braunschweig, Germany info@lived-non-food.de | www.lived-non-food.de
