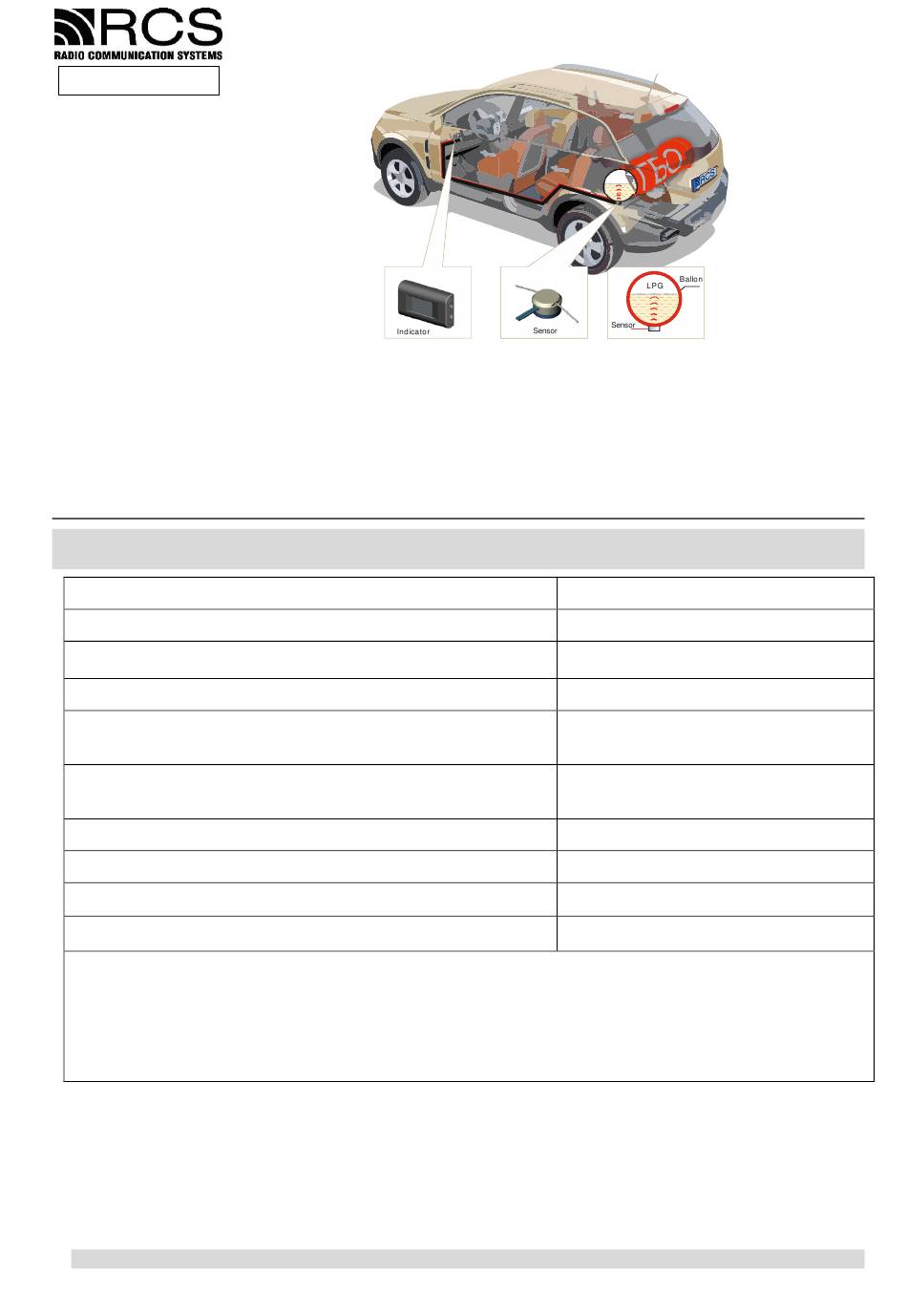

There are 3 modifications of SIGMA ULS sensors, which have different data
interface for setting:
SIGMA ULS - no data transfer interface (setting by battons);
SIGMA ULS2 - RS-232 interface for setting;
SIGMA ULS4 - RS-485 interface for setting.
Ultrasonic level sensor
"SIGMA"
Passport

BASIC TECHNICAL DATA

Name
ULS.0000-EN PS
Value
LPG
1*
– 40 ... + 70
20...600**
199
IP67
IP50
+9 ...+36
70

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIGMA and is the answer not in the manual?

Questions and answers

Summary of Contents for RCS SIGMA

  • Page 1 It is recommended to refuel without waiting for the achievement of the level of fuel lower limit of the measuring range. There are 3 modifications of SIGMA ULS sensors, which have different data interface for setting: SIGMA ULS - no data transfer interface (setting by battons);...
  • Page 2 BASIC PRODUCT INFORMATION Ultrasonic level sensor “SIGMA” is purposed for noninvasive liquified petroleum (propane/butane) gas (LPG) level measurement in horizontally positioned gas tanks of vehicles. It is also possible to use a sensor to measure the level of gasoline, diesel fuel and other liquid media in tanks with a circular shape of the vertical cross-section of the tank.

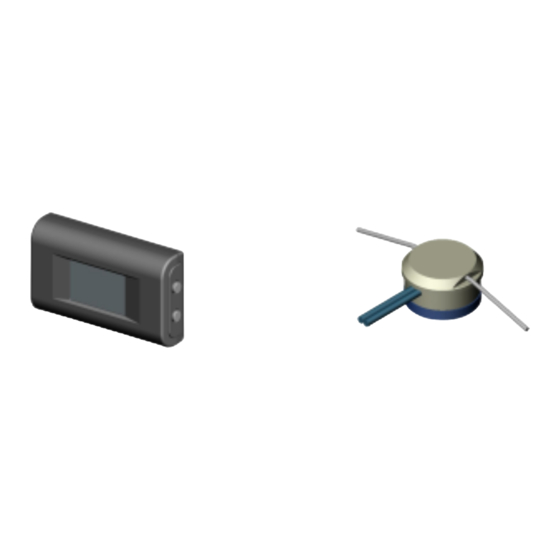

  • Page 3 CONTENTS OF DELIVERY Name Note Measuring device Assembled with ~7 m cable Converter with the indicator Assembled with power cable ~1m and fuse SI 0,1 A Set for clamping of measuring Includes vibration insulators and device (2 m cable with grease seal tensioning device) Corner mount for converter...
  • Page 4 Telephone numbers: (+38044) 206-69-79; 206-42-34 Fax: (+38044) 206-42-36 E-mail: support@rcs.kiev.ua. CERTIFICATE OF APPROVAL Ultrasonic liquid level sensor "SIGMA" model ULS ___________ with serial number ___________________________ is manufactured and approved in accordance with the regulatory requirements of state standards, present technical documentation and is ready for use.
