Model 3713F112G

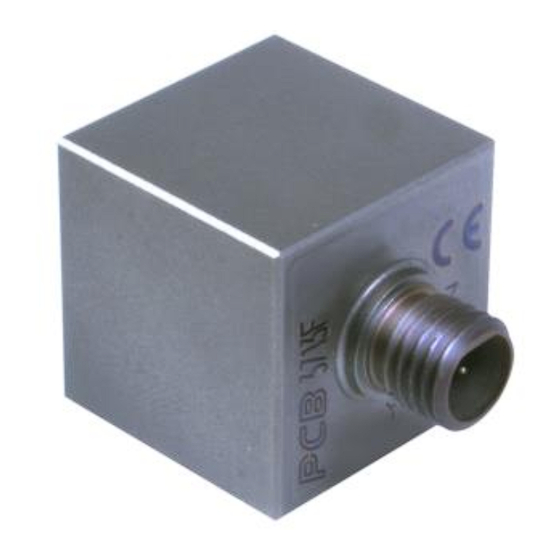

Triaxial MEMS DC accelerometer, 675 mV/g, 2 g, 9-pin socket
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com
Advertisement
Table of Contents
Related Manuals for PCB Piezotronics 3713F112G
Summary of Contents for PCB Piezotronics 3713F112G
- Page 1 Model 3713F112G Triaxial MEMS DC accelerometer, 675 mV/g, 2 g, 9-pin socket Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
-
Page 2: Repair And Maintenance
Assistance is needed to safely operate equipment PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T. - Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
-
Page 5: Component Name
Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364. -
Page 6: Principle Of Operation
3710 series DC Accelerometer Operating Guide Introduction Principle of Operation This operating guide contains information that will familiarize the user with the basic operation and installation of the 3710 The sensor element of the 3710 series features a proof mass, Series MEMS DC Accelerometers. -
Page 7: Sensor Installation
3710 series DC Accelerometer Operating Guide Typical Measurement System Easy Mount Clip: Recommended when frequent installation and removal of Series 3710 series accelerometers is desired. The 3710 series DC Accelerometers are available in a uniaxial The Easy-Mount Clip can either be stud mounted or adhesive- or triaxial package, with the uniaxial model being the 3711 ly mounted to the test structure. - Page 8 3710 series DC Accelerometer Operating Guide 10.0 Maintenance and Repair If the sensor is extended, in the case of an integral cable sensor, or a cable length other than 10 ft is used, in the Because of the sophisticated nature of PCB instrumentation, case of sensor with an integral connector, the offset volt- age will change.
- Page 9 Model Number Revision: NR TRIAXIAL DC RESPONSE ACCELEROMETER 3713F112G ECN #: 49223 Performance ENGLISH OPTIONAL VERSIONS Sensitivity(± 3 %) 675 mV/g 68.8 mV/(m/s²) Optional versions have identical specifications and accessories as listed for the standard model except where noted below. More than one option may be used.
- Page 10 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. STANDARD STUD MOUNT UPDATE DRAWING 25686 "A" "B"...
- Page 11 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others .69 [17.5] DESCRIPTION without the written consent of PCB Piezotronics Inc. RELEASED TO DRAFTING 49223 .33 [8.4] X OUTPUT Y OUTPUT...
- Page 12 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. -SEE SHEET 1 "SERVICE LOOP" TO ALLOW MOTION WITHOUT PULLING CABLE MODEL 037EN...
