Model 3711F1150G

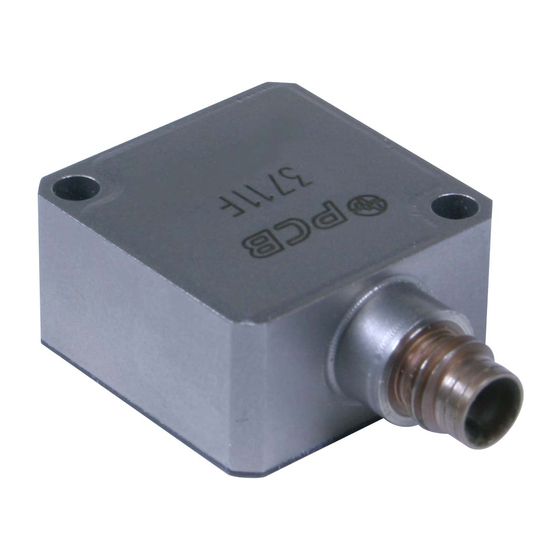

Platinum Stock Products; Single Axis MEMS DC accelerometer, 27 mV/g, 2 g, 1/4-28 4-Pin Plug
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3710 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PCB Piezotronics 3710 Series

Summary of Contents for PCB Piezotronics 3710 Series

  • Page 1 Model 3711F1150G Platinum Stock Products; Single Axis MEMS DC accelerometer, 27 mV/g, 2 g, 1/4-28 4-Pin Plug Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com...

  • Page 2: Repair And Maintenance

     Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 6 This operating guide contains information that will familiarize the user with the basic operation and installation of the 3710 The sensor element of the 3710 series features a proof mass, Series MEMS DC Accelerometers. However, it is not intended ring frame, and attachment system between the two. These...
  • Page 7 3710 series. el data acquisition instruments. The 3710 series may also be powered by other voltage sources Sensor Installation such as DC voltage laboratory supplies, automotive or marine batteries, or low-voltage supplies designed for powering PC When choosing an installation technique, be certain to care- Board components.
  • Page 8 For further assistance, please call (716) 684-0001 or fax us at specification. An accurate static calibration of the 3710 series can be performed using the Earth’s Gravitational Field as a (716) 684-0987.

  • Page 9: Supplied Accessories

    Model Number Revision: NR DC RESPONSE ACCELEROMETER 3711F1150G ECN #: 49223 Performance ENGLISH OPTIONAL VERSIONS Sensitivity(± 3 %) 27 mV/g 2.8 mV/(m/s²) Optional versions have identical specifications and accessories as listed for the standard model except where noted below. More than one option may be used. Measurement Range ±...
  • Page 10 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. ELECTRICAL CONNECTOR RELEASED TO DRAFTING 49223 4 PIN, HERMETIC...
  • Page 11 PCB Piezotronics Inc. claims proprietary rights in the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. - SEE SHEET 1 - "SERVICE LOOP" TAPE, PETRO WAX...
